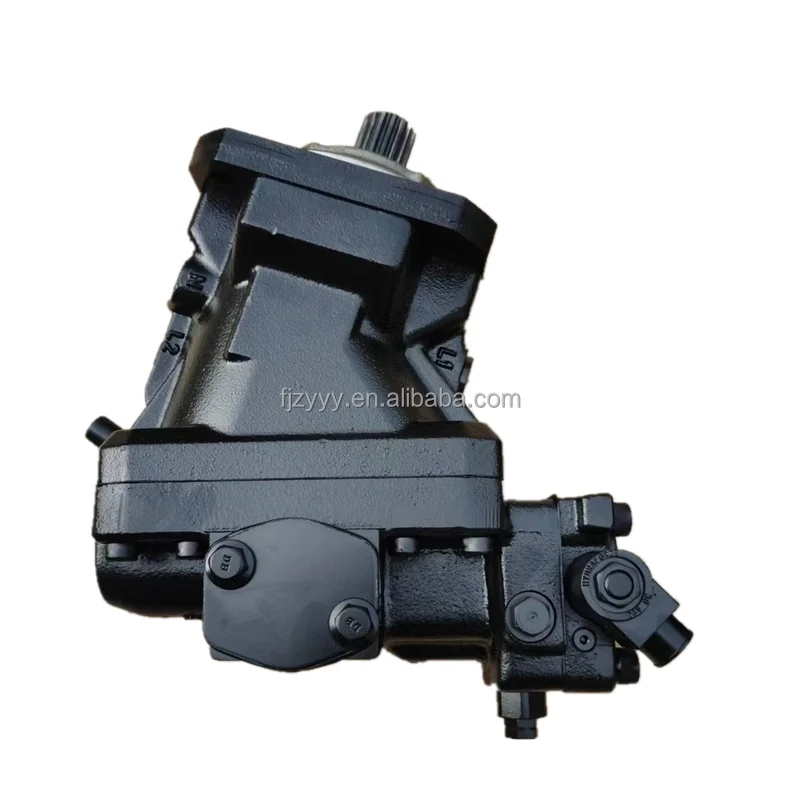

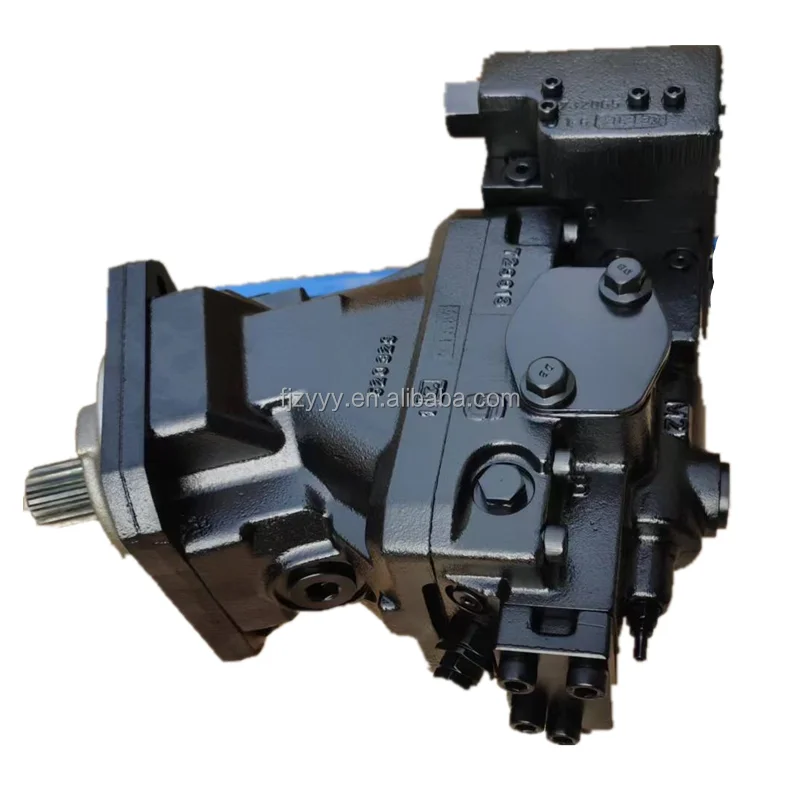

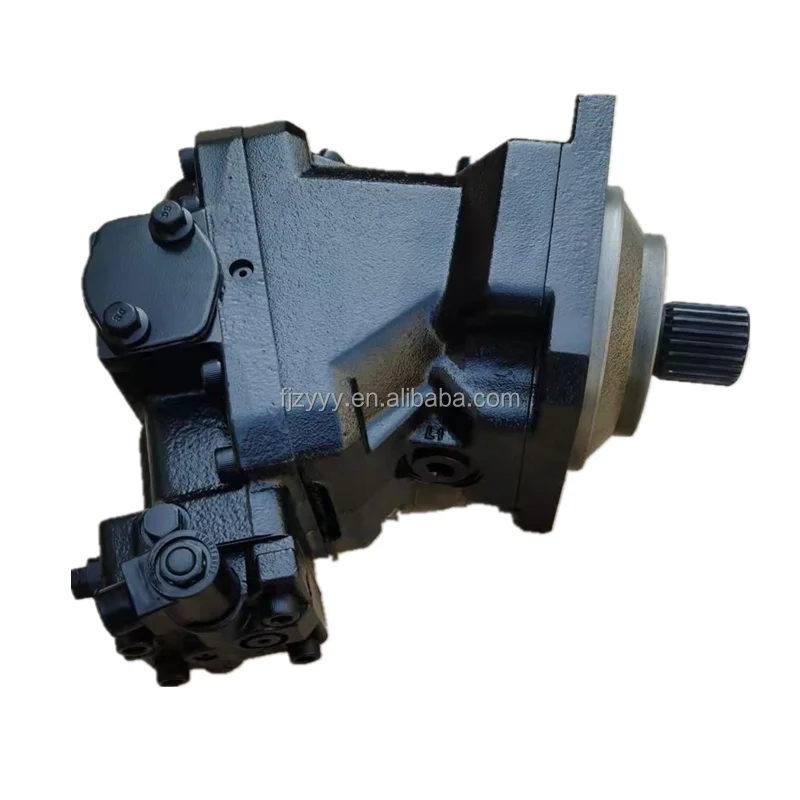

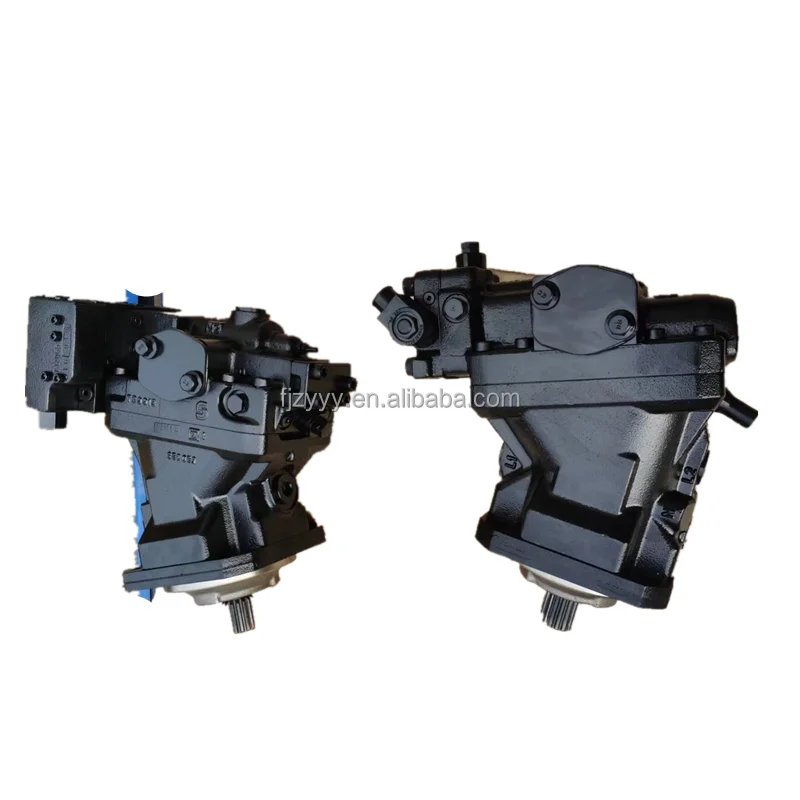

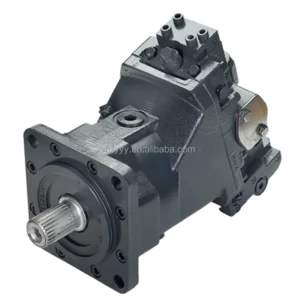

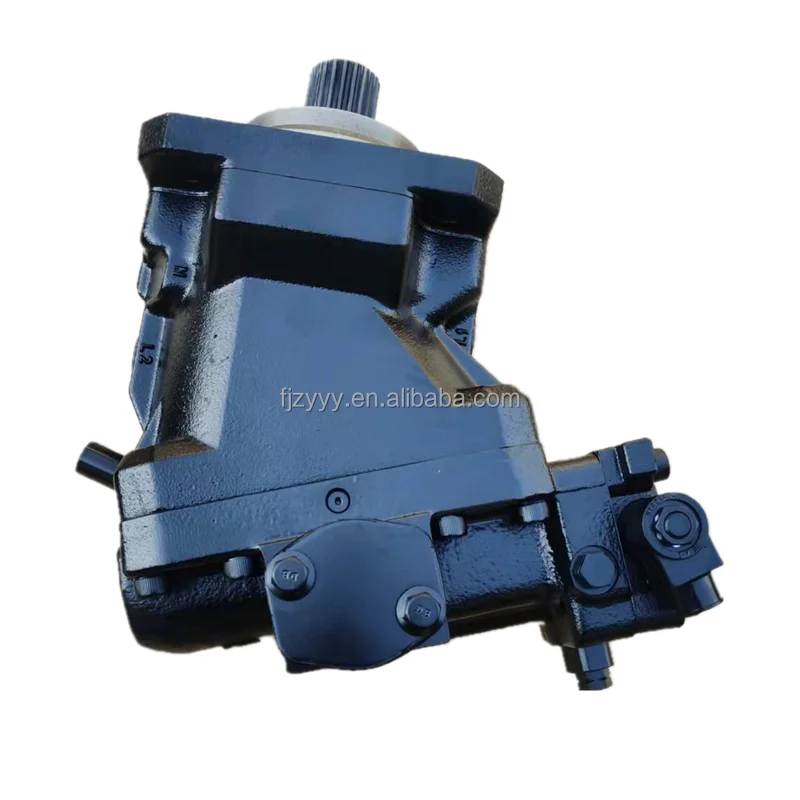

Danfoss 51D160 & 51D110 High-Speed Variable Bent Axis Motors

Product Overview: The Danfoss 51 Series and its 51D evolved versions represent the cutting edge of hydrostatic drive technology. As bent-axis variable piston motors, they are specifically engineered to meet the demands of high-performance closed-circuit drive systems. By allowing the swashplate to swing between 0° and 32°, the 51D series provides an expansive displacement range, enabling machinery to transition seamlessly between high-torque loading and high-speed transit. This page features core models: 51D160 and 51D110. These motors are the definitive power units for self-propelled harvesters, large rollers, road milling machines, heavy-duty forestry equipment, and various specialized vehicle travel drives.

Key Technical Advantages:

• Extreme Displacement Ratio: Features infinite variability from maximum to zero (or set minimum) displacement, significantly optimizing power distribution and fuel efficiency.

• Superior High-Speed Capability: Advanced bent-axis technology allows for extremely high continuous RPMs in low-displacement modes, drastically increasing machine transport efficiency.

• Extreme Pressure Resilience: Rated for a continuous pressure of 450 Bar with peak capabilities reaching 480 Bar (7000 PSI), built to withstand intense shock loads in rugged terrains.

• Compact 51D Design: The optimized 51D architecture features a shorter axial length and flexible porting, greatly simplifying installation in tight chassis environments.

• Target Applications: Harvester travel drives, large vibratory rollers, asphalt pavers, and high-performance industrial winch systems.

Detailed Models & Complex Code Listing:

• Core Series: Danfoss 51 & 51D Series (Bent Axis Variable).

• Technical Spec Decoding:

  • 51D160 AD4N T3C0 LNJ1 ADA040AAE6 00B1: Size 160, featuring specific pilot logic, shaft ends, and minimum displacement limiters.

  • 51D110 1AD8NP7P7NNX1NNN041AAF000AA: Size 110, configured with high-strength splined shafts and precision electronic control modules.

• Core Performance Specs:

  • Displacement Range: 110 cm³/rev and 160 cm³/rev.

  • Max Operating Pressure: 480 Bar (7000 PSI).

  • Control Logic: Available in Hydraulic Proportional, Electric Proportional, or Two-Point control.
