CY14-1B Series Axial Piston Pump | 10YCY, 25YCY, 160YCY, 250YCY | YCY, SCY, MCY, PCY

Model Number

10/16/25/32/40/63/80/100/160/250YCY14-1B, YCY, SCY, MCY, PCY, MYCY

Inquiry

Product Description

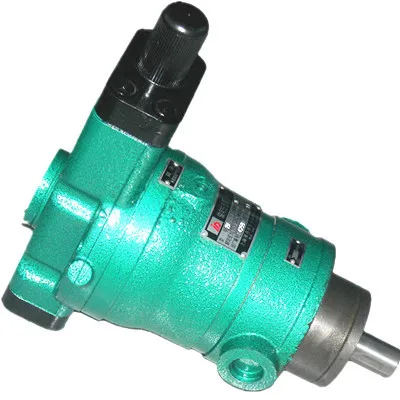

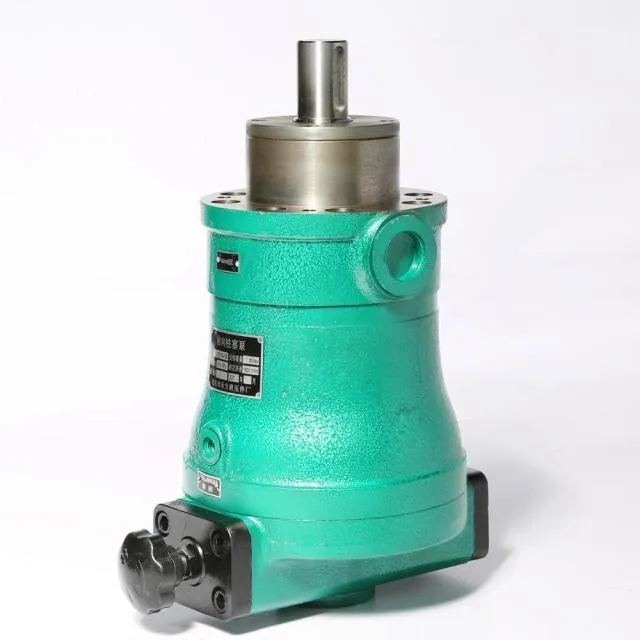

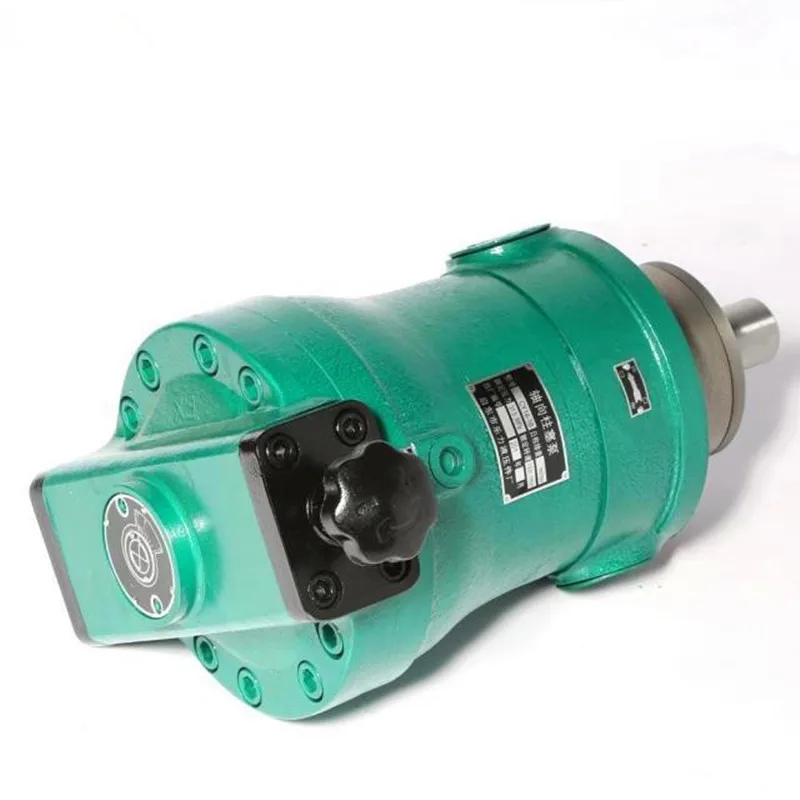

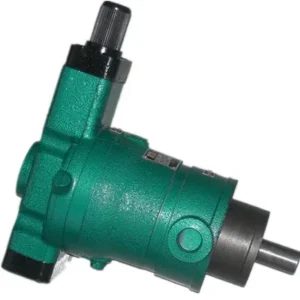

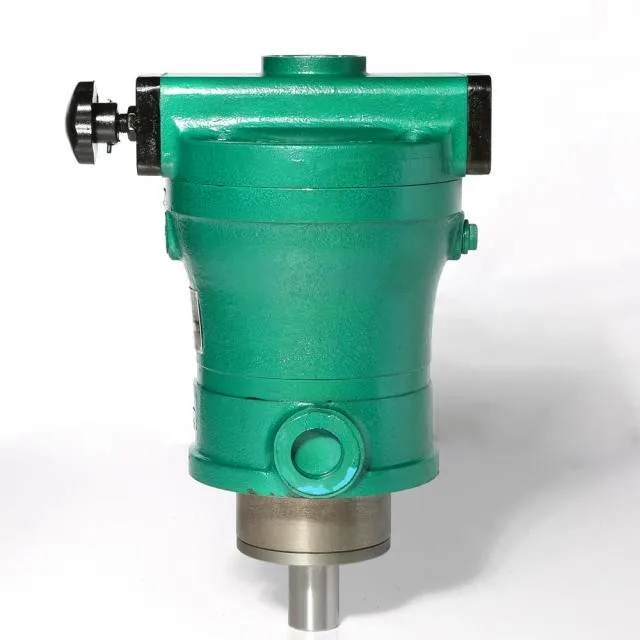

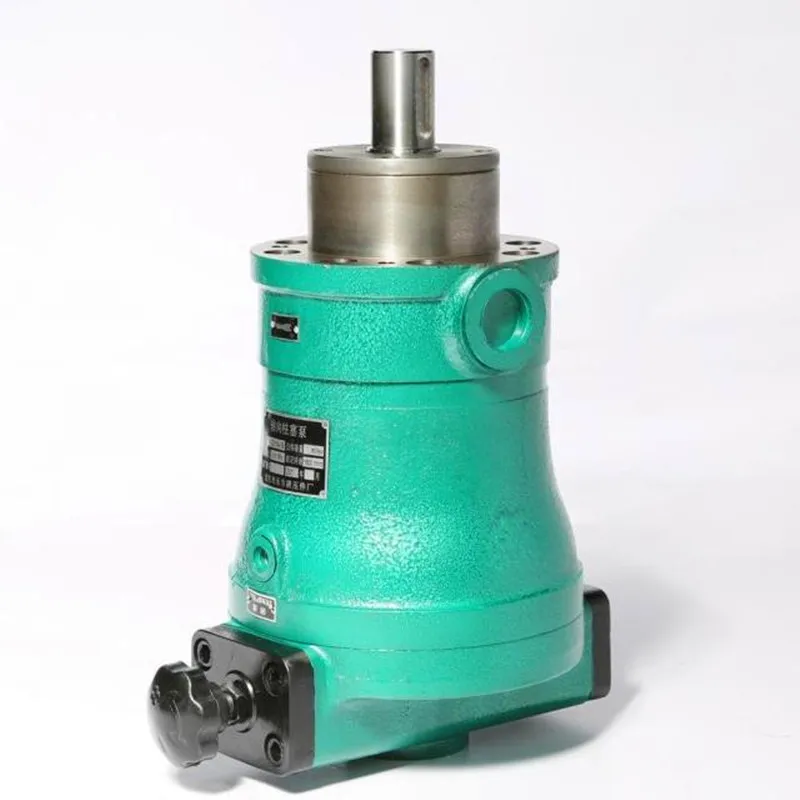

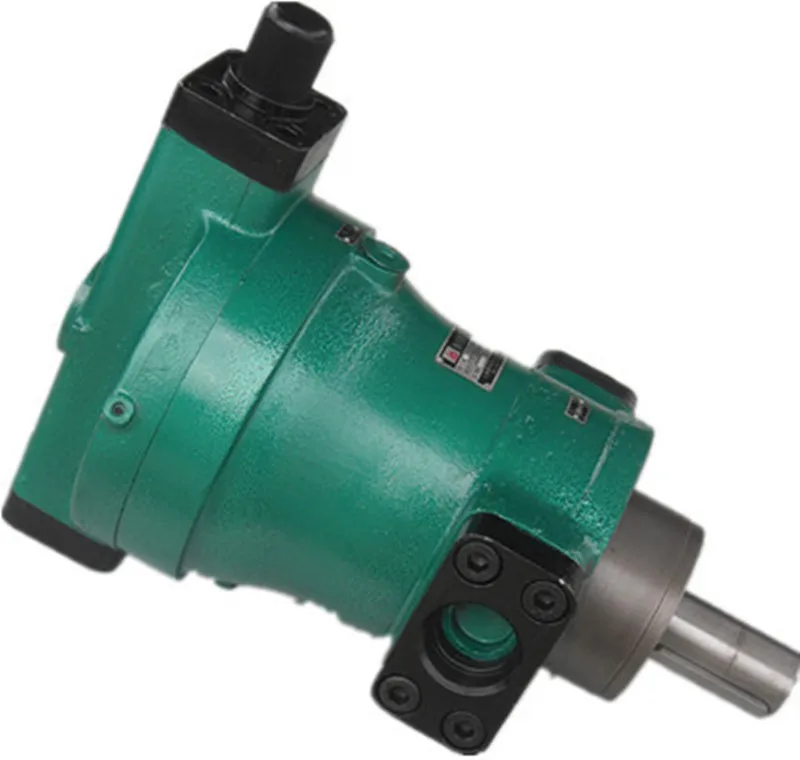

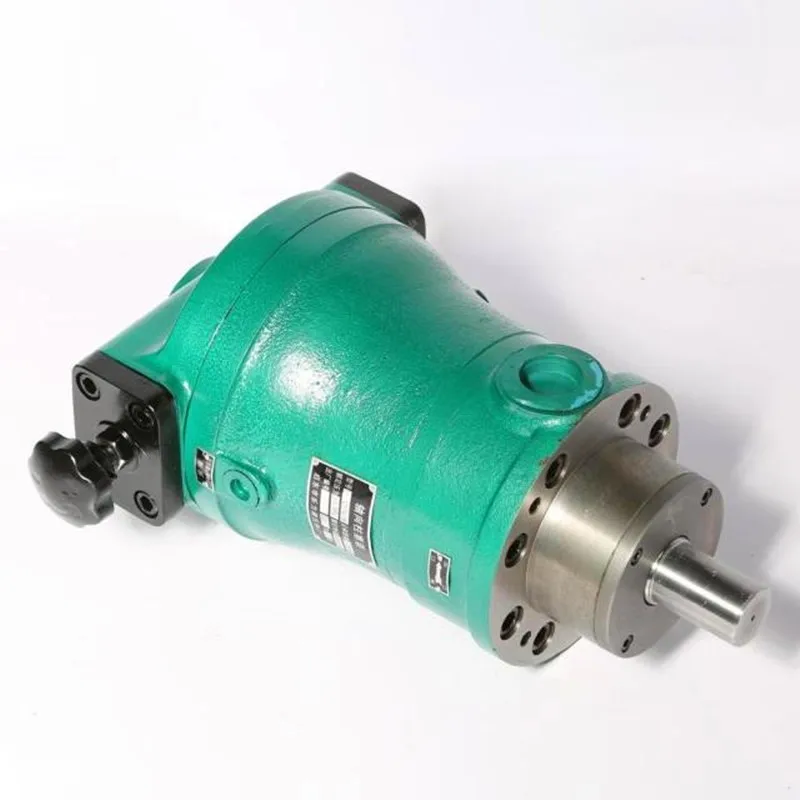

CY14-1B Series High-Pressure Axial Piston Pumps (10ml-250ml)

Product Overview: The CY14-1B series is a highly esteemed and widely utilized axial piston pump within the global industrial hydraulic sector. This series offers a comprehensive displacement range from the compact 10mL/r up to the high-capacity 250mL/r. Renowned for its simple architecture, excellent self-priming capabilities, and strong contamination resistance, the CY14-1B remains a top choice for cost-effective high-pressure solutions. Depending on your control requirements, we offer multiple regulator options: YCY (Constant Power), SCY (Manual), MCY (Fixed), PCY (Constant Pressure), and MYCY (Electro-Proportional). These pumps are the premier choice for forging machinery, metal balers, machine tool power systems, and diverse industrial hydraulic power units (HPUs).

Key Technical Advantages:

  • Exceptional Cost-Performance: A classic industrial design that guarantees high-pressure output while maintaining highly competitive acquisition and maintenance costs.

  • Versatile Variable Control: Featuring YCY and PCY modes that effectively balance load power to minimize system heat generation and energy waste.

  • Rugged Operational Reliability: Constructed with high-strength alloy steel rotating groups, engineered to withstand the continuous heavy-duty cycles of harsh industrial environments.

  • Full Displacement Range: Spanning from 10cc to 250cc, this range accommodates everything from small lab equipment to massive brick press systems.

  • Ease of Maintenance: The transparent design and high degree of component interchangeability allow for easy sourcing of overhaul parts worldwide.

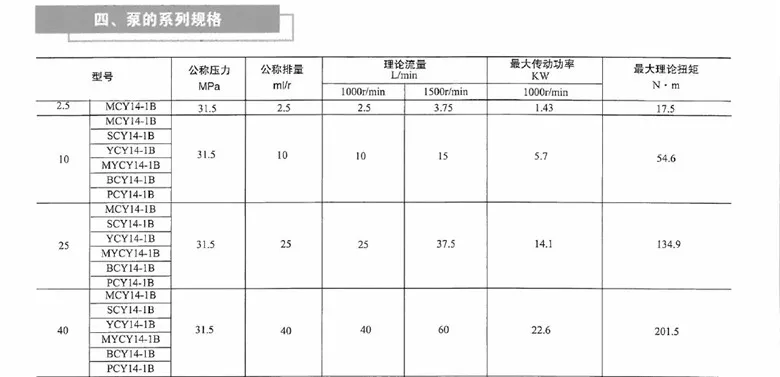

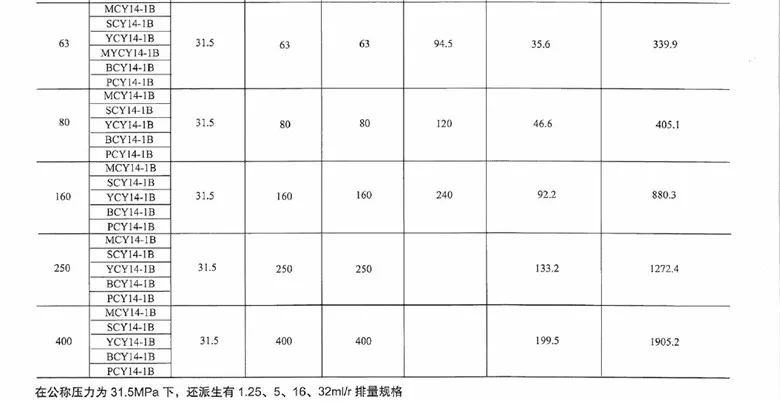

Detailed Models & Parameters:

  • Core Series: CY14-1B Series.

  • Displacement Keywords: 10, 16, 25, 32, 40, 63, 80, 100, 160, 250 (mL/r).

  • Control Keywords: YCY (Power), SCY (Manual), MCY (Fixed), PCY (Pressure), MYCY (Proportional).

  • Nominal Pressure: 31.5 MPa (315 Bar / 4568 PSI).

  • Peak Pressure: 40 MPa (400 Bar / 5800 PSI).

  • Rotation: Standard Right-hand (CW); Left-hand (CCW) available upon request.

  • Target Applications: Industrial presses, scrap metal balers, hydraulic shears, machine tool HPUs, and injection molding auxiliary systems.
