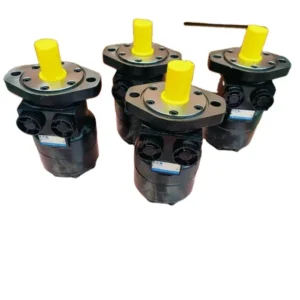

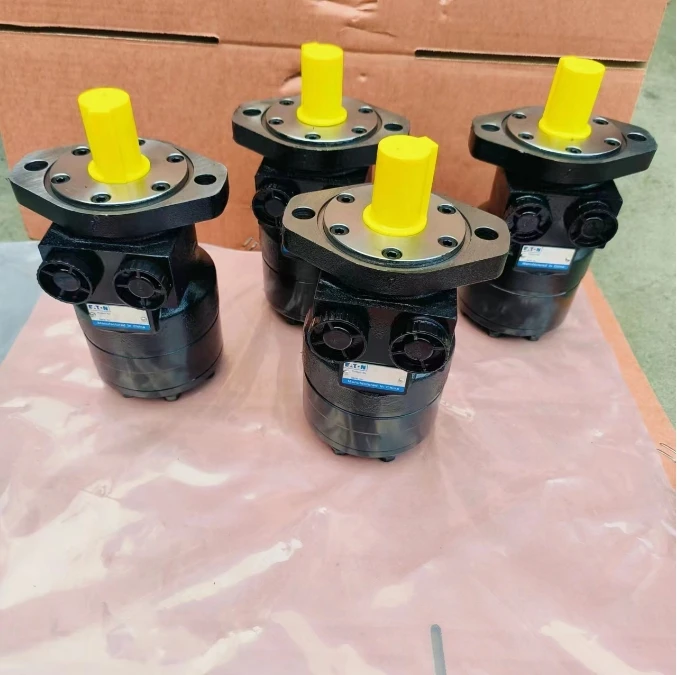

Eaton Char-Lynn H Series Low Speed High Torque Orbit Motors

Product Overview: The Eaton Char-Lynn H Series is one of the most classic and reliable orbit motors in global industrial applications. Synonymous with “Low Speed High Torque (LSHT)” drive technology, this series is specifically designed for continuous or intermittent medium-to-light load applications. This featured selection includes core part numbers: 103-1564-012 (Higher displacement version) and 103-1012-012 (Standard configuration). Utilizing advanced Gerotor technology, H Series motors deliver powerful tractive effort within a minimal envelope, making them the premier choice for conveyor drives, agricultural harvesters, and light-duty winches.

Key Technical Advantages:

• Compact & Powerful: Features an exceptional power-to-weight ratio. Optimized fluid paths deliver maximum torque output within the smallest possible frame size.

• Superior Low-Speed Stability: The orbit principle guarantees smooth power delivery at low RPMs, effectively eliminating “dead zones” or startup jitter.

• Advanced Sealing System: Equipped with high-performance shaft seals that handle significant back pressure, drastically reducing leakage risks and extending service life.

• Versatile Configurations: Part number suffixes like -012 denote specific shaft types (Keyed/Splined) and mounting combinations, ensuring full interchangeability with original equipment.

• Target Applications: Agricultural implements (planters/harvesters), food processing conveyors, street sweepers, light-duty winches, and material handling systems.

Detailed Models & Parameters:

• Core Series: Eaton Char-Lynn H Series (Gerotor Design).

• Core Part Numbers: 103-1564-012, 103-1012-012.

• Technical Specs Decoding:

  • 103-1564-012: 2-Bolt mounting flange, equipped with a standard keyed shaft, high-displacement spec.

  • 103-1012-012: 2-Bolt mounting flange, compatible with standard hydraulic porting.

• Displacement Range: Offering a broad spectrum from 59 cm³/rev to 370 cm³/rev.

• Pressure Specs: Continuous operating pressure up to 125 Bar (1800 PSI), with peak pressure capabilities up to 165 Bar (2400 PSI).
