CBW Series Hydraulic Gear Pump | CBW-F206, CBW-F310, CBW-F320 | High Pressure Aluminum Pump

Model Number

CBW

Inquiry

Product Description

CBW Series High-Performance Aluminum Hydraulic Gear Pumps

Product Overview: The CBW Series serves as the vital power foundation for small-to-medium hydraulic systems, widely utilized in forklifts, mini loaders, combine harvesters, and truck tail lift systems. This featured range covers the entire core lineup: the compact CBW-F202, CBW-F203, CBW-F204, CBW-F205, CBW-F206 and the medium-flow models CBW-F304, CBW-F306, CBW-F310, CBW-F314, CBW-F316, CBW-F320. Engineered with high-strength extruded aluminum bodies and automated axial gap compensation, these pumps deliver elite volumetric efficiency even under high pressures exceeding 20 MPa.

Key Technical Advantages:

  • 100% Direct Replacement: Strictly adheres to industrial standard OEM parameters. Available with various mounting flanges (Oval, Square), drive shafts (Keyed, Splined, Tang), and port configurations (Threaded, Flanged) to ensure seamless compatibility.

  • High-Tensile Aluminum Housing: The specialized anodized body offers superior fatigue and wear resistance while remaining lightweight—ideal for installations in cramped compartments.

  • Axial Pressure Compensation: Equipped with precision floating bushings that automatically adjust gaps based on operational pressure, maintaining volumetric efficiencies over 93% throughout its service life.

  • High Speed & Low Noise: Optimized for high-RPM operation, supporting speeds up to 3000-3500 RPM. Precision-ground gear sets significantly reduce flow ripples and decibel levels.

  • Target Applications: Main pumps for 1-3 ton forklifts, harvester header lifts, mini bulldozers, and truck tail lift mechanisms.

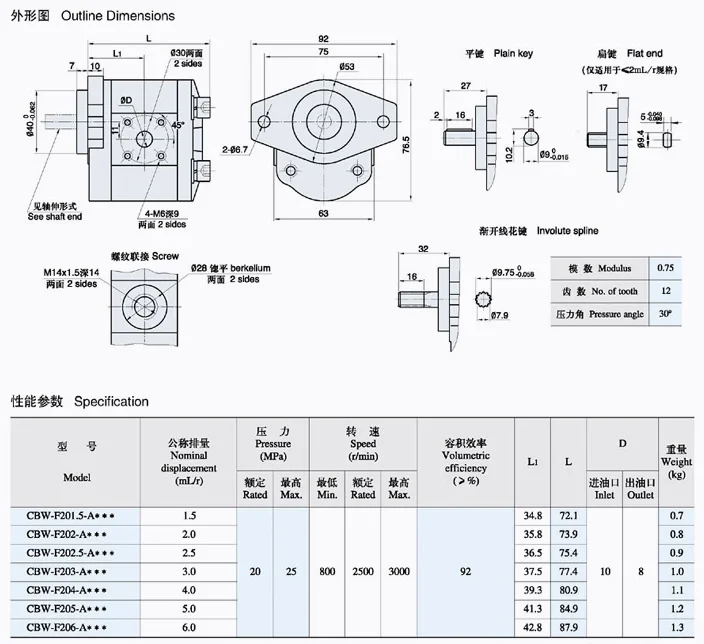

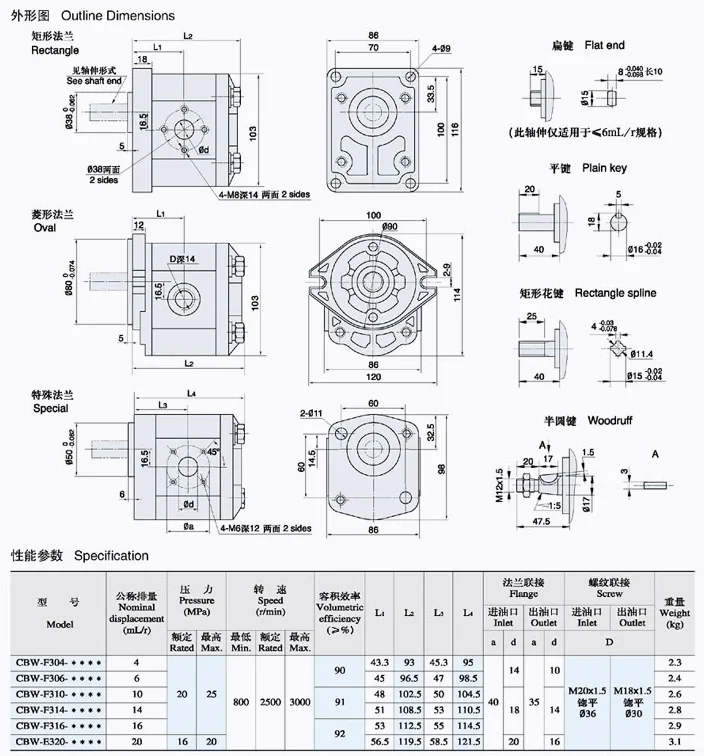

Detailed Models & Parameters:

  • Core Series: CBW High Pressure Series.

  • Model Keywords: CBW-F202, CBW-F203, CBW-F204, CBW-F205, CBW-F206, CBW-F304, CBW-F306, CBW-F310, CBW-F314, CBW-F316, CBW-F320.

  • Rated Pressure: 20 MPa (200 Bar); Peak pressure up to 25 MPa (3625 PSI).

  • Displacement Range: Precision coverage from 2ml/r up to 20ml/r.

  • Recommended Speed: 2000 – 3500 RPM.
