CBT-E3 Series Hydraulic Gear Pump | CBT-E304 to CBT-E325 | High-Pressure Aluminum Pump
| Model Number | CBT-E304, CBN CBT-E306 E308 E310 E312 E314 E316 E318 E320 E325 |
|---|
Product Description

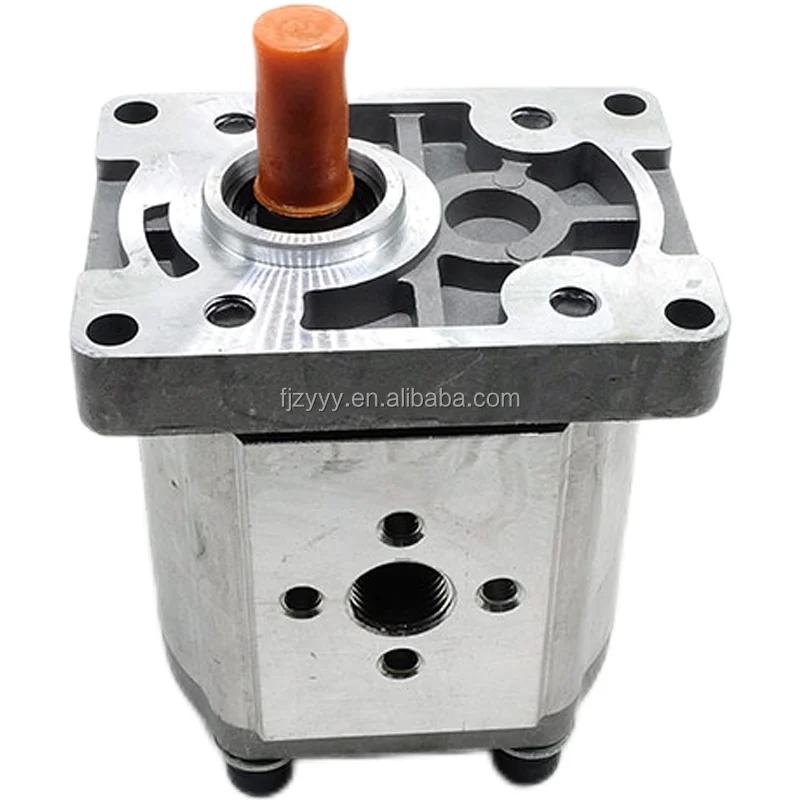

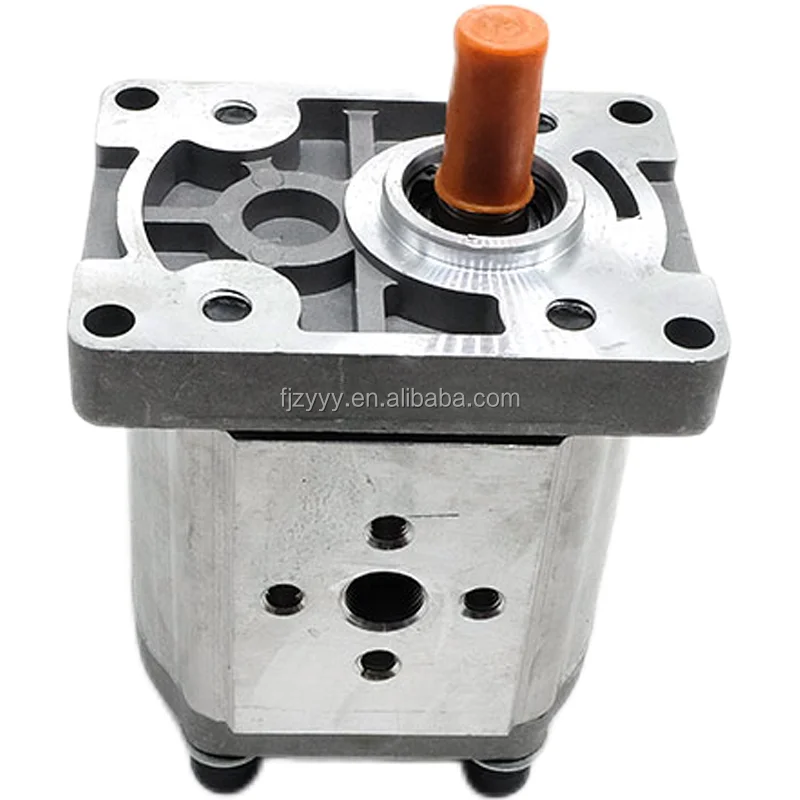

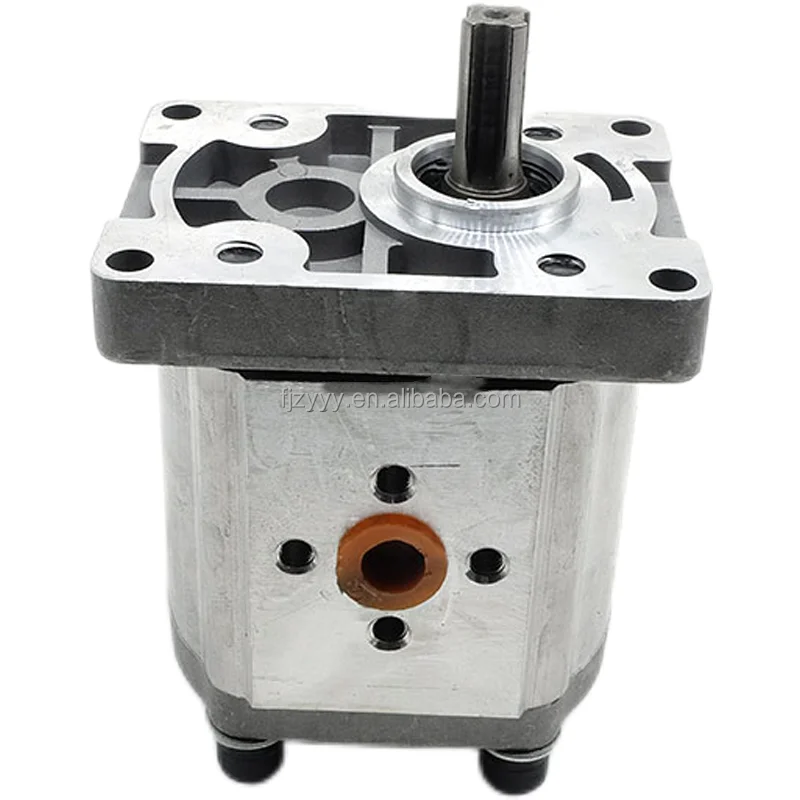

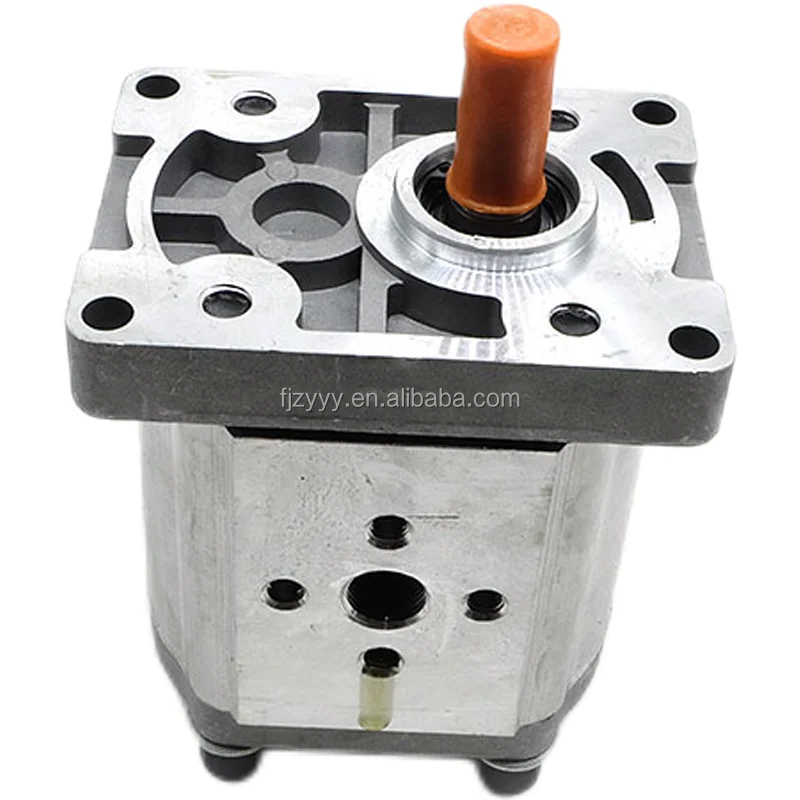

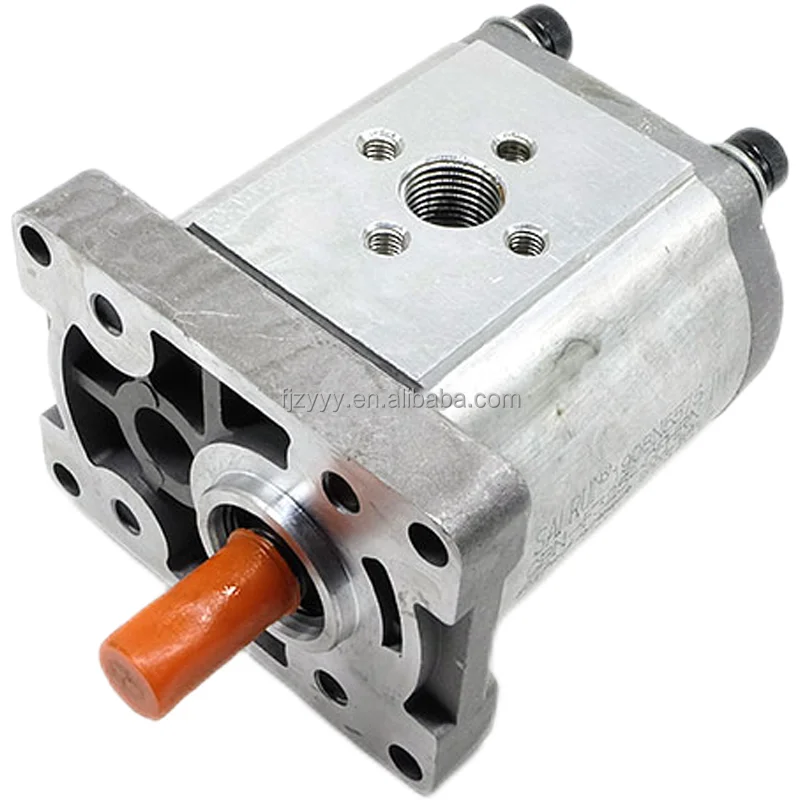

CBT-E3 Series High-Performance High-Pressure Hydraulic Gear Pumps
Product Overview: The CBT-E3 Series (often interchangeable with the CBN series) is one of the most reliable and widely used power sources in modern hydraulic systems. As a high-performance external gear pump, the CBT-E3 series features a high-tensile extruded aluminum alloy body, specifically engineered to handle pressure spikes and rigorous operation. This featured range covers the entire spectrum from the micro-displacement CBT-E304 to the high-flow CBT-E325, including popular models like E306, E310, and E316. Equipped with advanced axial gap compensation, these pumps deliver exceptional volumetric efficiency even under fluctuating loads.
Key Technical Advantages:
Lightweight High-Strength Design: The pump body is crafted from specialized extruded aluminum with precision cast covers, maintaining structural integrity under continuous high-pressure (Rated 16-20 MPa).
100% Direct OEM Replacement: Manufactured strictly to international mounting standards. Whether it’s flange connections, shaft types (Keyed/Splined), or porting, these pumps provide a seamless fit for major global brands.
Superior Volumetric Efficiency: Equipped with pressure-balanced floating side plates that adjust clearances automatically, maintaining efficiency above 93% and reducing system heat generation.
Smooth & Quiet Operation: Optimized gear profiles combined with heavy-duty self-lubricating bearings significantly reduce mechanical vibration and hydraulic noise.
Target Applications: Main pumps for 1-3.5T forklifts, harvester steering circuits, tractor hydraulic lifts, sanitation trucks, and various industrial hydraulic power units.
Detailed Models & Parameters:
Core Series: CBT-E3 & CBN High Pressure Series.
Model Keywords: CBT-E304, CBT-E306, CBT-E308, CBT-E310, CBT-E312, CBT-E314, CBT-E316, CBT-E318, CBT-E320, CBT-E325.
Displacements (ml/rev): Covering precise specs: 4ml, 6ml, 10ml, 16ml, up to 25ml.
Pressure Ratings: Rated at 16-20 MPa (160-200 Bar / 3000 PSI); peak pressure capability up to 25 MPa.

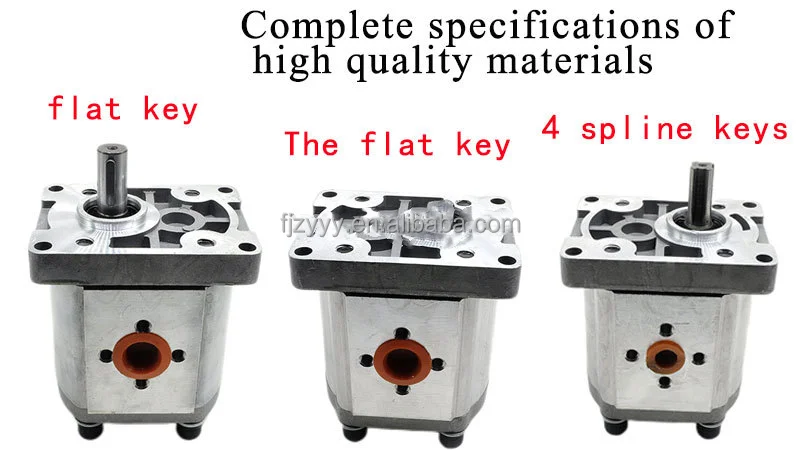

Configurations: Available in Clockwise (R/CW) and Counter-Clockwise (L/CCW), with multiple shaft and flange options.
