CBG3 Series Hydraulic Gear Pump | CBG3100, CBG3125, CBG3160, CBG3200 | High Pressure Single Pump
| Model Number | CBG3100, CBG3125, CBG3160, CBG3180, CBG3200, CBG3140 |
|---|
Product Description

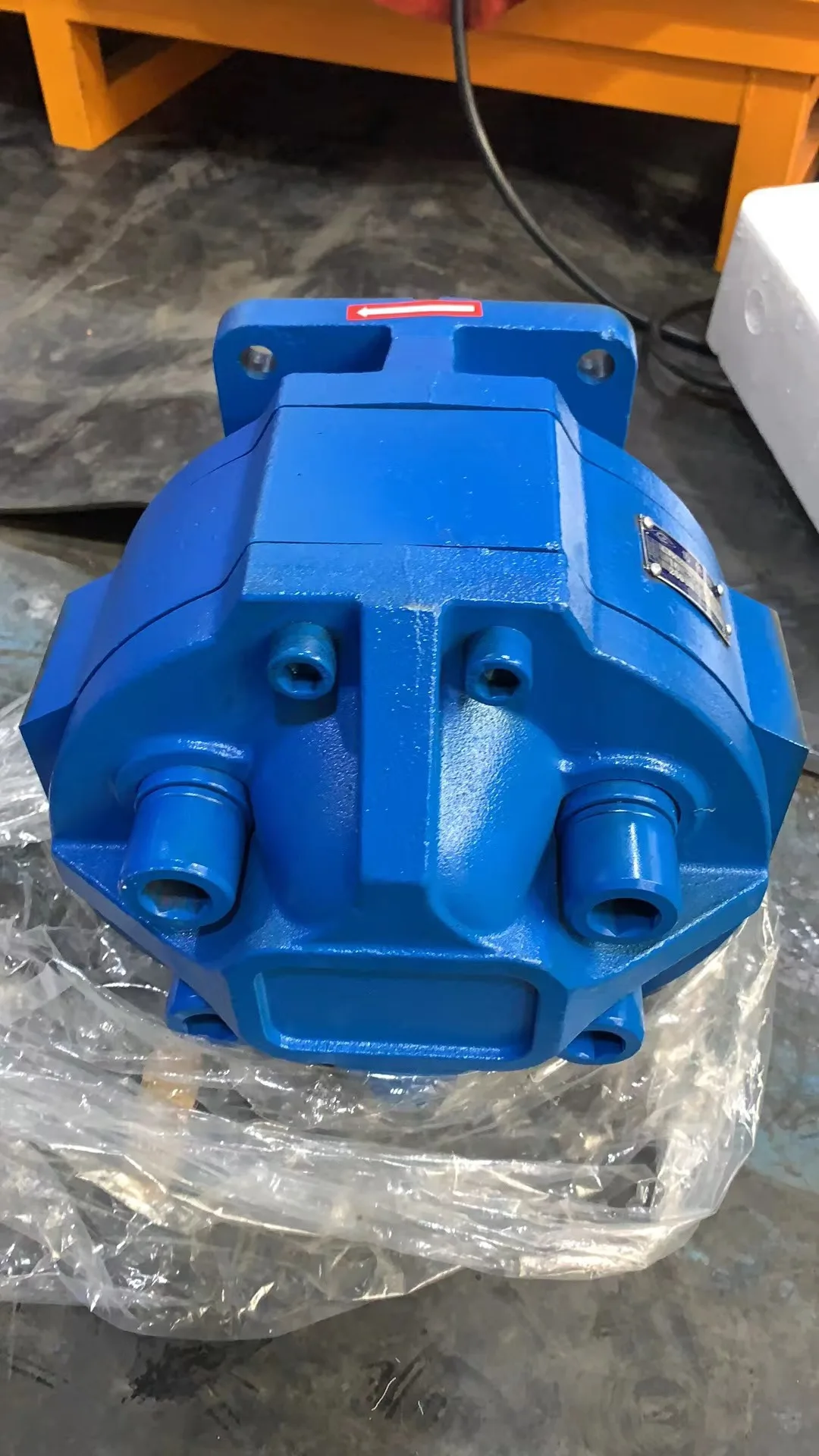

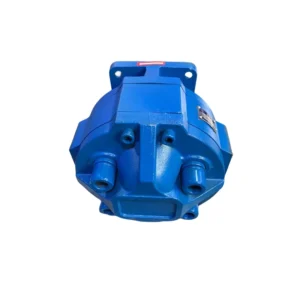

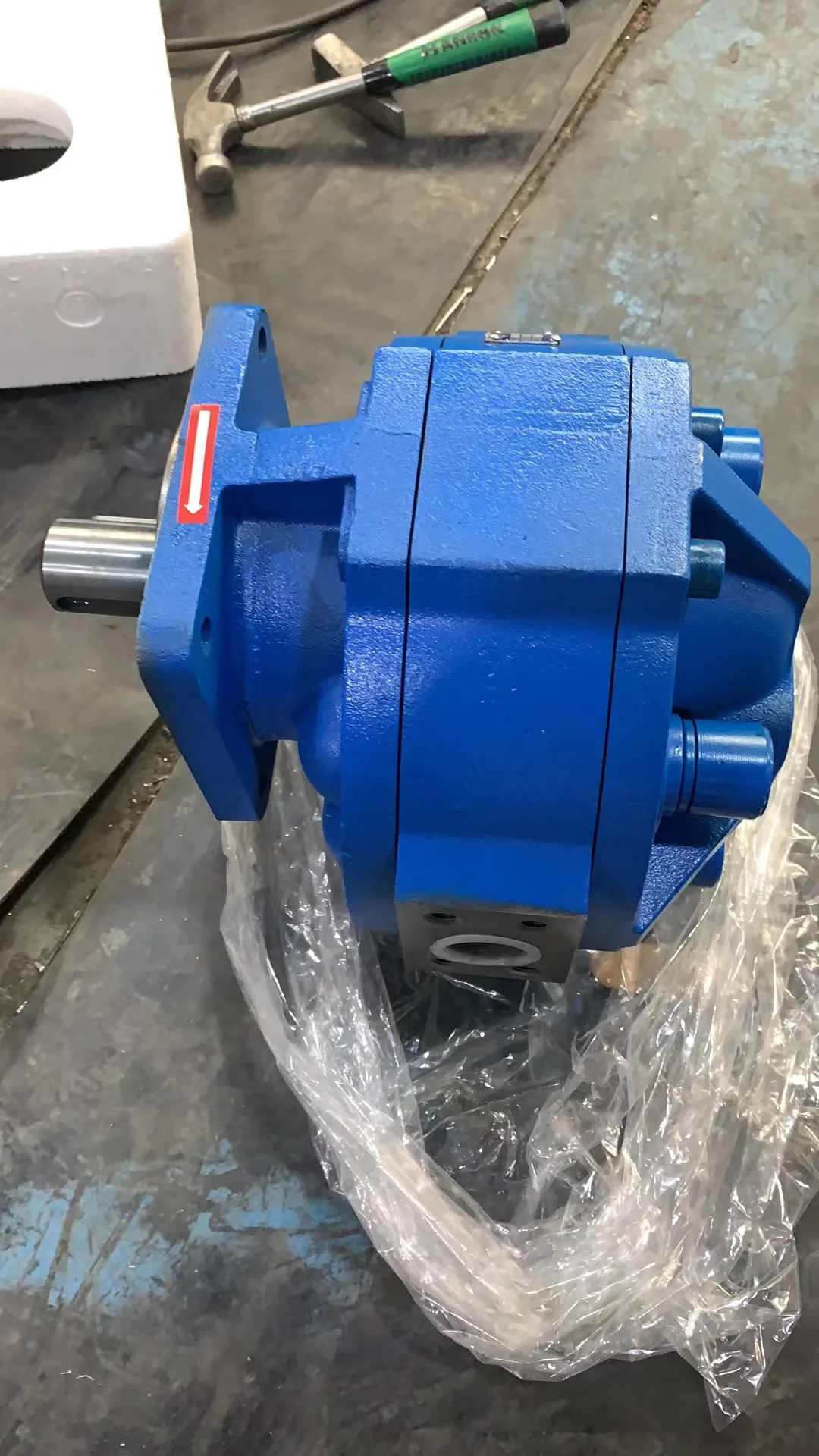

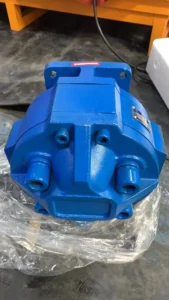

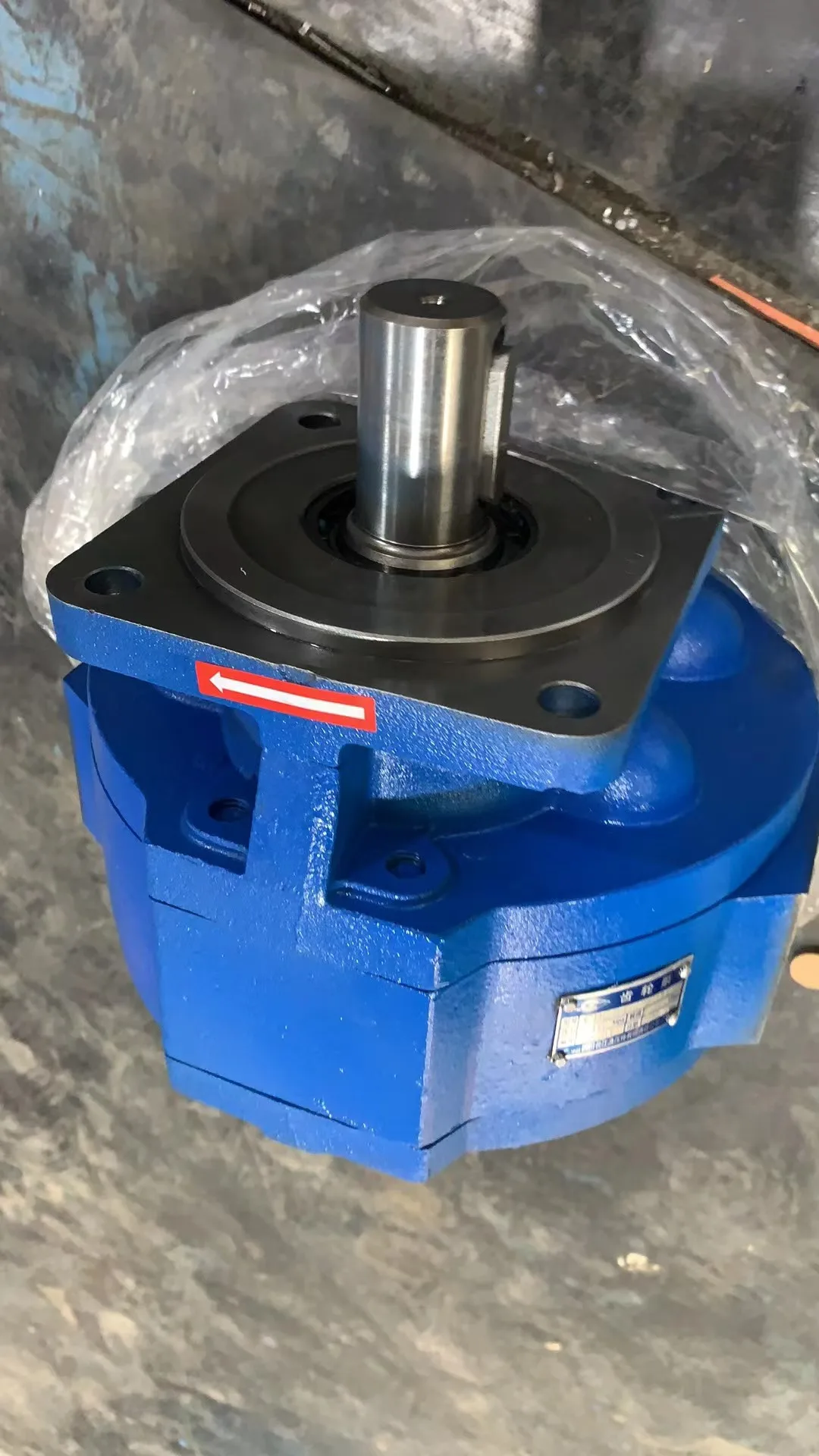

CBG3 Series Heavy-Duty Large Displacement High-Pressure Gear Pumps
Product Overview: The CBG3 Series represents a premium power core engineered specifically to meet the rigorous demands for ultra-large flow and continuous high pressure in heavy-duty machinery. This featured selection covers the complete displacement range: CBG3100, CBG3125, CBG3140, CBG3160, CBG3180, and the ultra-high capacity CBG3200. Constructed with high-strength cast iron housings, these pumps offer superior fatigue and impact resistance. Utilizing advanced axial gap compensation, the CBG3 series maintains elite volumetric efficiency even under continuous high-pressure operations (up to 25 MPa), making it the premier choice for excavators, loaders, and large-scale industrial presses.
Key Technical Advantages:
Reinforced Cast Iron Build: Manufactured with high-grade cast iron bodies to withstand the instantaneous pressure spikes caused by frequent reversals in heavy machinery, significantly extending the service life between overhauls.
High Volumetric Efficiency: Equipped with floating bushings and axial pressure-balanced mechanisms to minimize internal leakage, maintaining efficiencies over 93% throughout its service life while reducing energy loss.
Superior Self-Priming: Optimized internal gear meshing chambers ensure rapid oil suction across various speeds, effectively preventing dry-run damage to internal components.
Wear-Resistant Bearing System: Features high-load alloy bearings optimized for high tolerance against oil contamination in harsh mining and construction environments, ensuring reliable continuous operation.
100% OEM Compatibility: Strictly adheres to international mounting standards with various flange and shaft configurations, ensuring guaranteed “Plug-and-Play” replacement for major heavy machinery power systems.
Detailed Models & Parameters:
Core Series: CBG3 Heavy-Duty Series.
Model Keywords: CBG3100, CBG3125, CBG3140, CBG3160, CBG3180, CBG3200.
Displacement Range: Covers a high-capacity matrix from 100 mL/r to 200 mL/r.
Pressure Ratings: Rated at 20 MPa continuous; Peak up to 25 MPa (3625 PSI).
Mounting Specs: Available in standard SAE or Rectangular flanges with Splined or Keyed shafts.
Target Applications: Large loader steering pumps, excavator auxiliary pumps, dump truck hoists, and scrap baler hydraulic stations.
