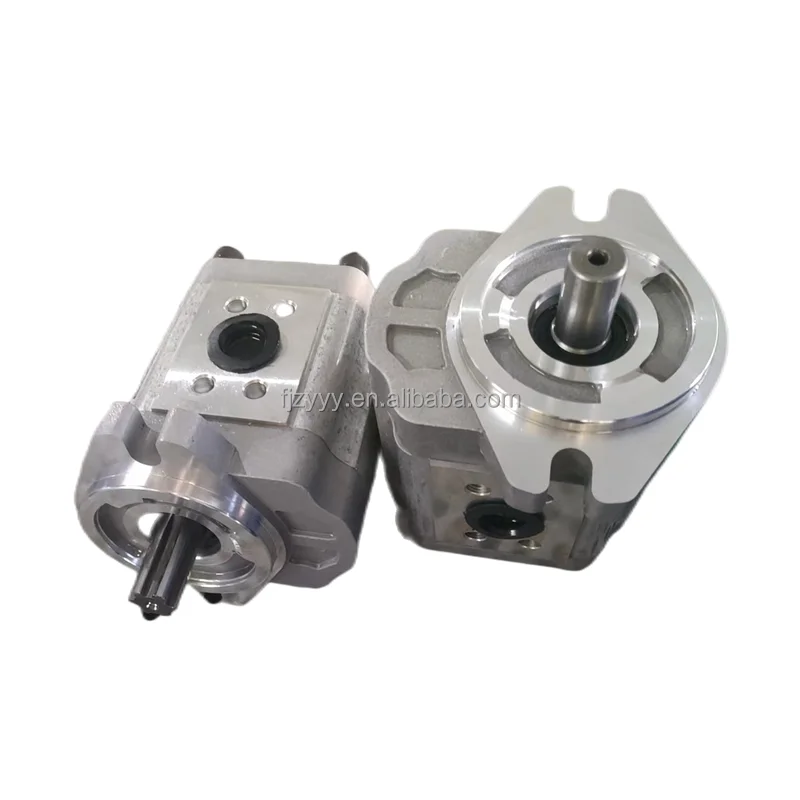

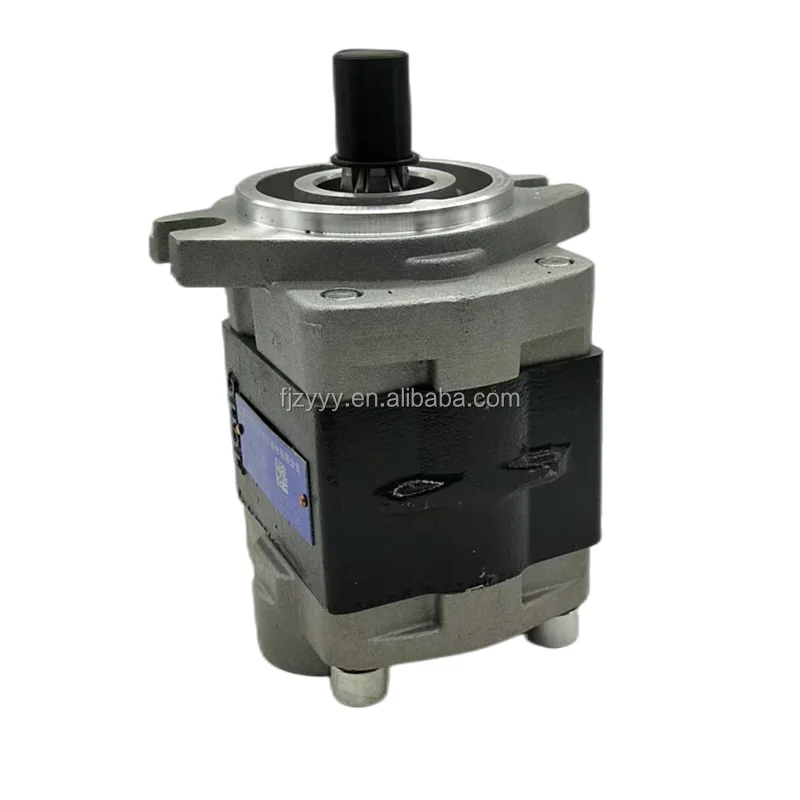

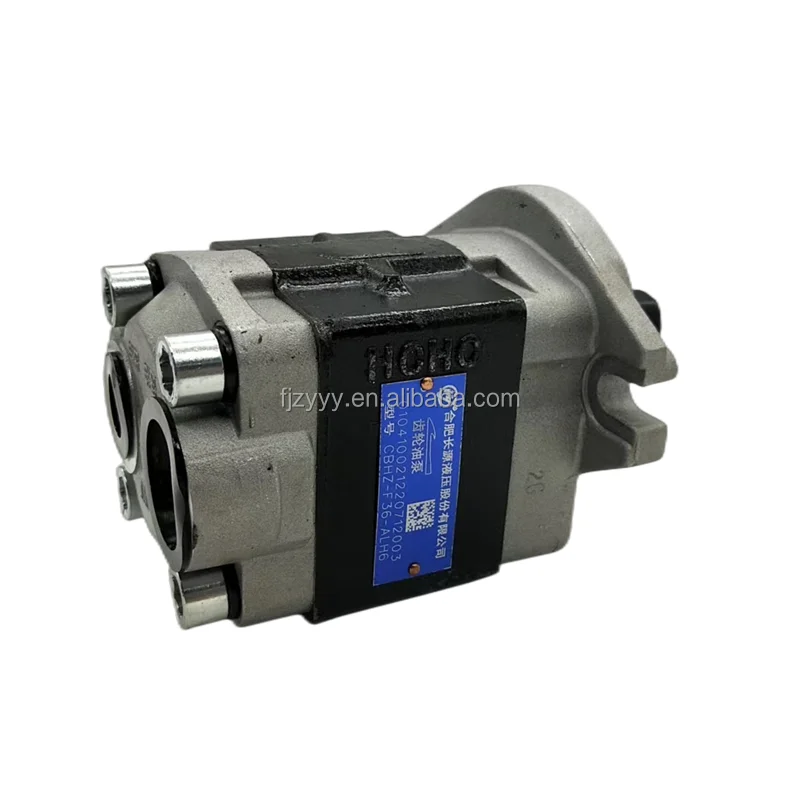

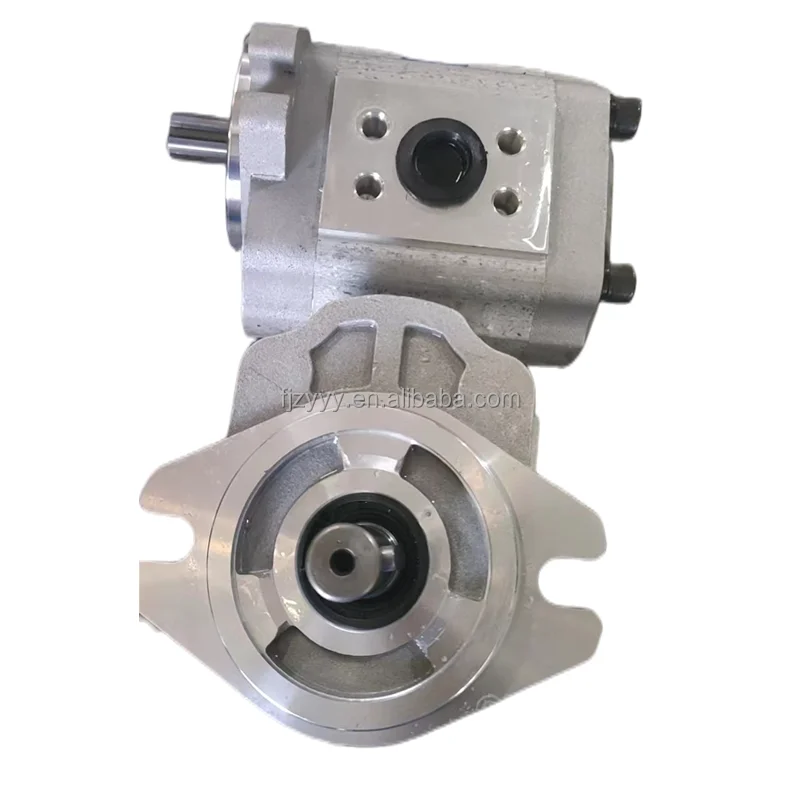

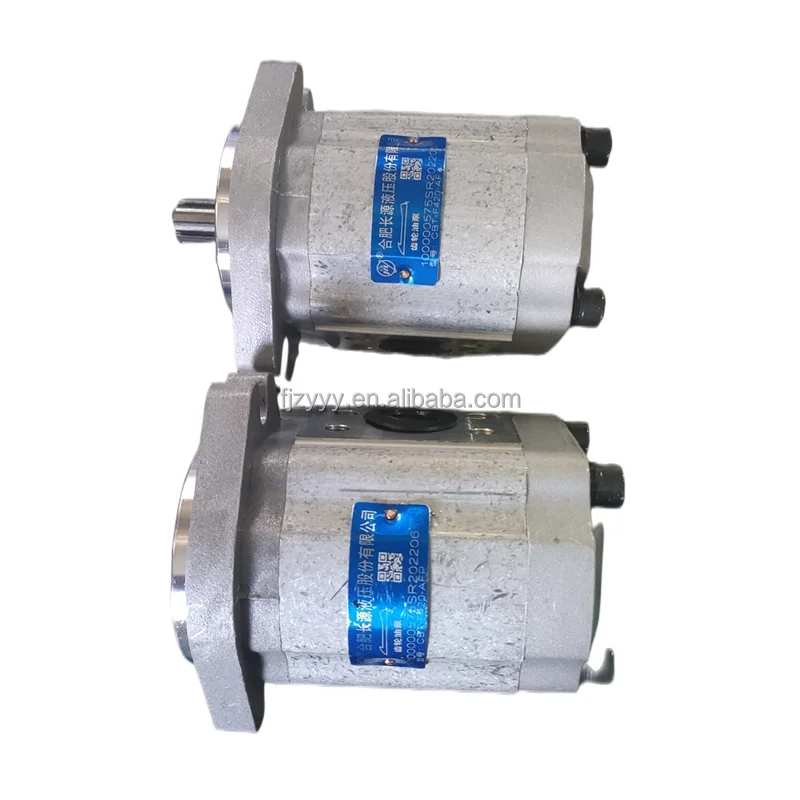

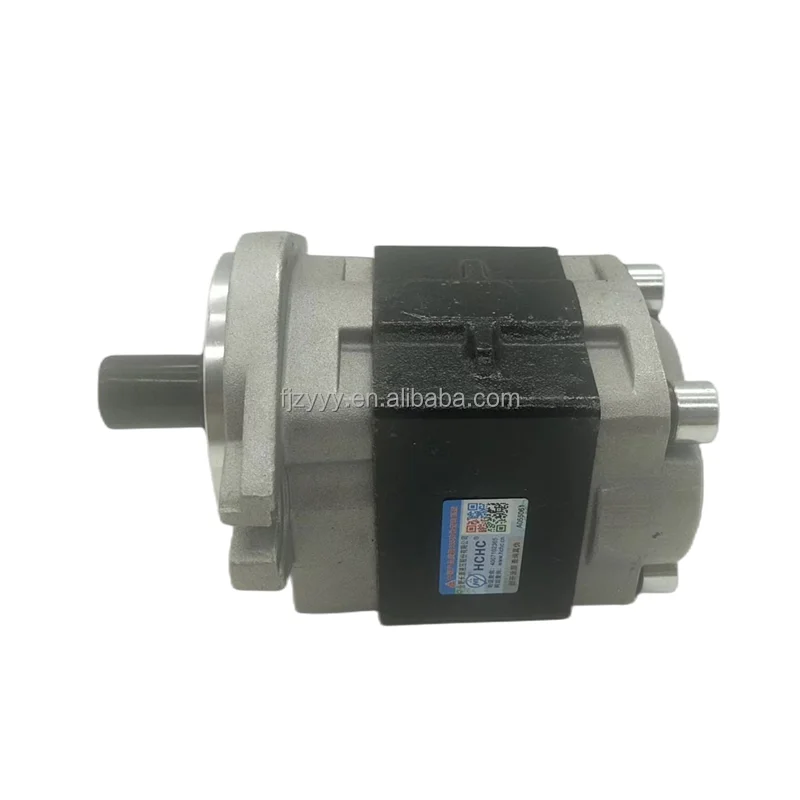

CB-FC Series High-Pressure Forklift Hydraulic Gear Pumps

Product Overview: The CB-FC Series serves as the dynamic powerhouse for forklift and mobile machinery hydraulic systems, renowned for its exceptional reliability and stable output under high-pressure conditions. This featured selection covers the full spectrum of models, from the compact CB-FC10 and CB-FC18 to mid-range CB-FC25 and CB-FC32, and heavy-duty CB-FC40 and CB-FC50, including the specialized CB-FC31.5-FL-X interface. Engineered with high-strength cast iron bodies and advanced automatic axial gap compensation, these pumps maintain elite volumetric efficiency at peak pressures up to 25 MPa. It is the premier power source for lifting and steering systems in 1-10 ton forklifts.

Key Technical Advantages:

• Superior Pressure Resilience: Rated for a continuous operating pressure of 20 MPa with peaks reaching 25 MPa (3625 PSI), specifically reinforced to handle the shock loads during frequent forklift lifting operations.

• High Efficiency & Longevity: Equipped with automatic axial pressure-compensated side plates, these pumps maintain efficiencies over 93% throughout their service life, minimizing system heat buildup.

• 100% Forklift OEM Compatibility: Strictly adheres to industry standards (e.g., FL-X special interface codes), ensuring identical flange patterns, shaft ends (splined or keyed), and port positions for leading brands like Heli and Hangcha.

• Heavy-Duty Build: Features specially coated sliding bearings designed to offer superior contamination resistance when operating with hydraulic fluids containing minor impurities.

• Quiet Operation: Optimized gear profiles drastically reduce operational noise, enhancing the environment for indoor and warehouse operations.

Detailed Models & Parameters:

• Core Series: CB-FC Forklift Performance Series.

• Model Keywords: CB-FC10, CB-FC18, CB-FC25, CB-FC32, CB-FC40, CB-FC50, CB-FC31.5-FL-X.

• Displacements: Full industrial range from 10ml/r up to 50ml/r.

• Pressure Ratings: Rated at 20 MPa continuous; Peak up to 25 MPa (3625 PSI).

• Connection Specs: Supports FL-X (Square Flange/Splined Shaft) and various non-standard custom codes.

• Target Applications: Internal combustion forklift lift circuits, electric forklift hydraulic stations, compact cranes, and road maintenance machinery.
