CB-B Series External Gear Pump | CB-B6, CB-B10, CB-B63, CB-B125 | Industrial Oil Transfer Pump

Model Number

CB – B6 / CB – B10

Inquiry

Product Description

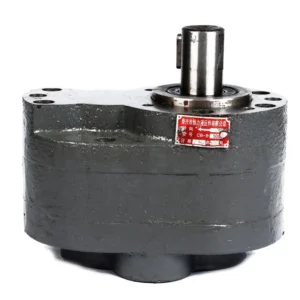

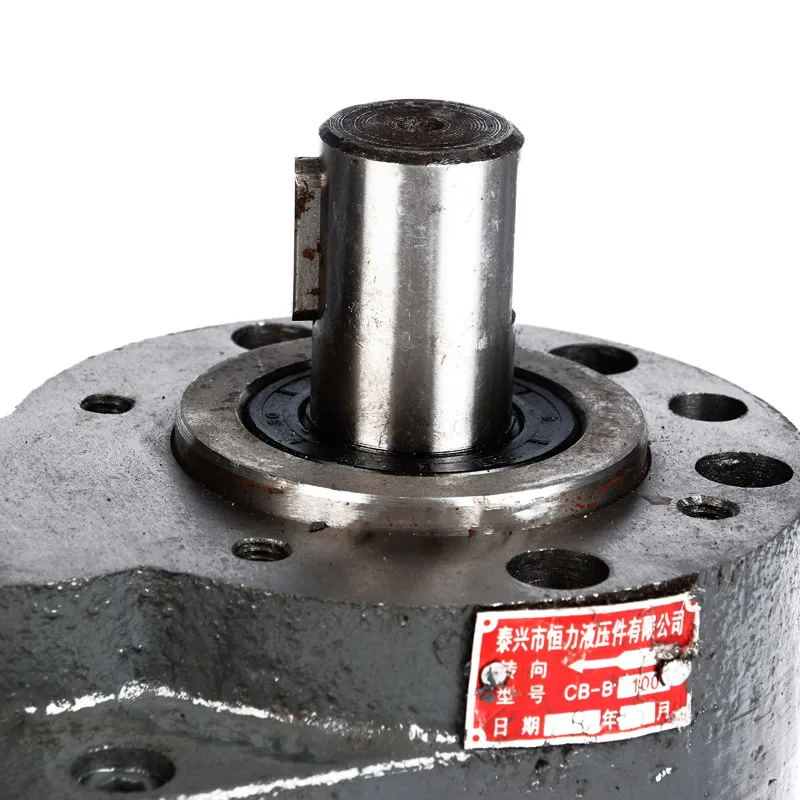

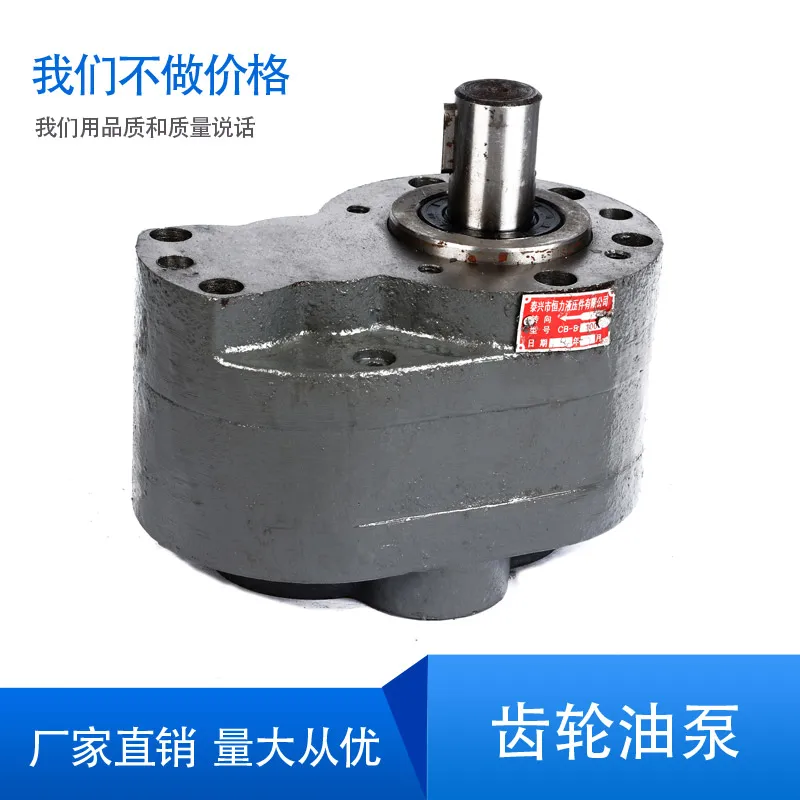

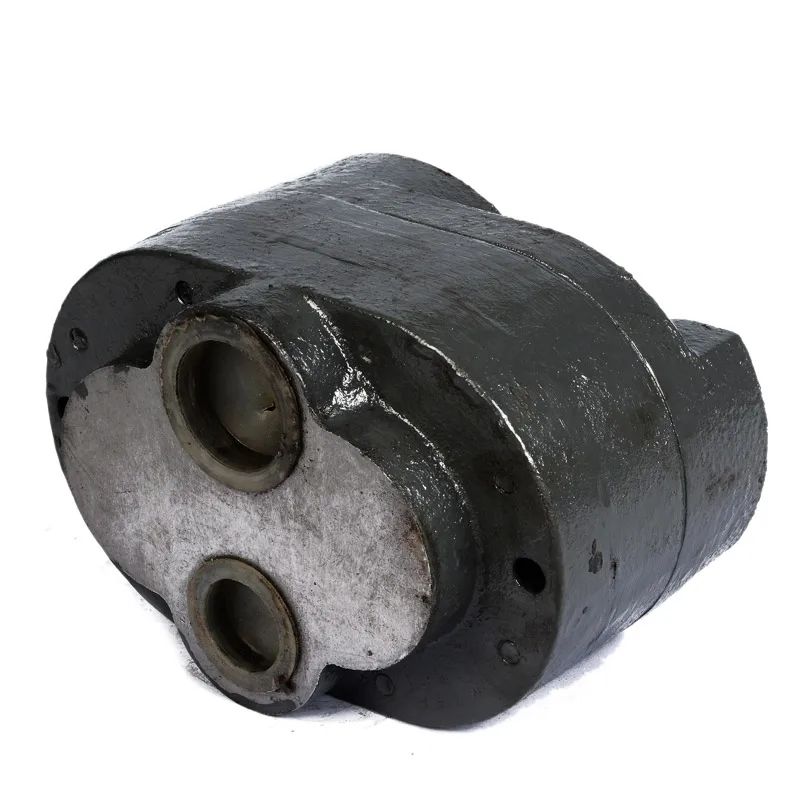

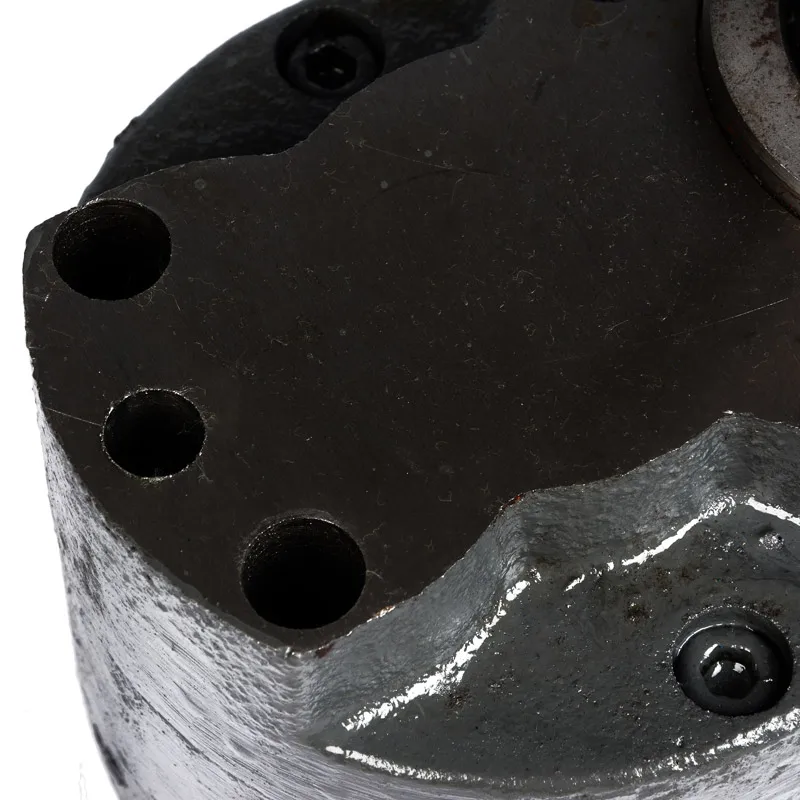

CB-B Series Low-Pressure Industrial External Gear Pumps

Product Overview: The CB-B Series is a cost-effective external meshing hydraulic pump widely utilized in machine tool hydraulic systems, textile machinery, rubber processing equipment, and various low-pressure lubrication circuits. This range covers the full spectrum of capacities: from compact models CB-B6, CB-B10, B16, B25 to high-flow units B63, B80, B100, and CB-B125. Engineered with high-tensile cast iron housings and precision-ground gears, these pumps operate smoothly at 2.5 MPa without complex compensation mechanisms, making them a reliable choice for industrial fluid transfer.

Key Technical Advantages:

  • Simple & Rugged Design: Featuring a classic structure without side-plate compensation, the minimal internal parts significantly reduce failure rates due to contamination and ensure easy maintenance.

  • Superior Self-Priming: Exceptional vacuum suction performance makes these pumps ideal for configurations where the oil tank is located below the pump, ensuring immediate system pressure upon startup.

  • Cost-Efficient Solution: Compared to high-pressure pumps, the CB-B series offers extreme cost-effectiveness for lubrication and cooling circulation systems, serving as an ideal replacement for expensive imported low-pressure units.

  • 100% Direct Replacement: Adheres to standard industrial flange and shaft specifications (such as keyed shafts), ensuring rapid matching with existing electric motors and Hydraulic Power Units (HPU).

  • Target Applications: Machine tool guideway lubrication, hydraulic chuck power, cooling oil circulation, filtration systems, and low-pressure hydraulic stations.

Detailed Models & Parameters:

  • Core Series: CB-B Low Pressure Gear Pump Series.

  • Model Keywords: CB-B6, CB-B10, B16, B25, B63, B80, B100, CB-B125.

  • Rated Pressure: 2.5 MPa (25 Bar).

  • Displacement Range: From 6ml/r to 125ml/r.

  • Recommended Medium: Mineral-based hydraulic oils (Viscosity 20-200 cSt).
