AZPF & AZPG Series Hydraulic Gear Pump | AZPF-12-004, AZPFF-10-011 | Rexroth Type Oil Pump
| Model Number | AZPF-12-028LPR12MB |
|---|
Product Description

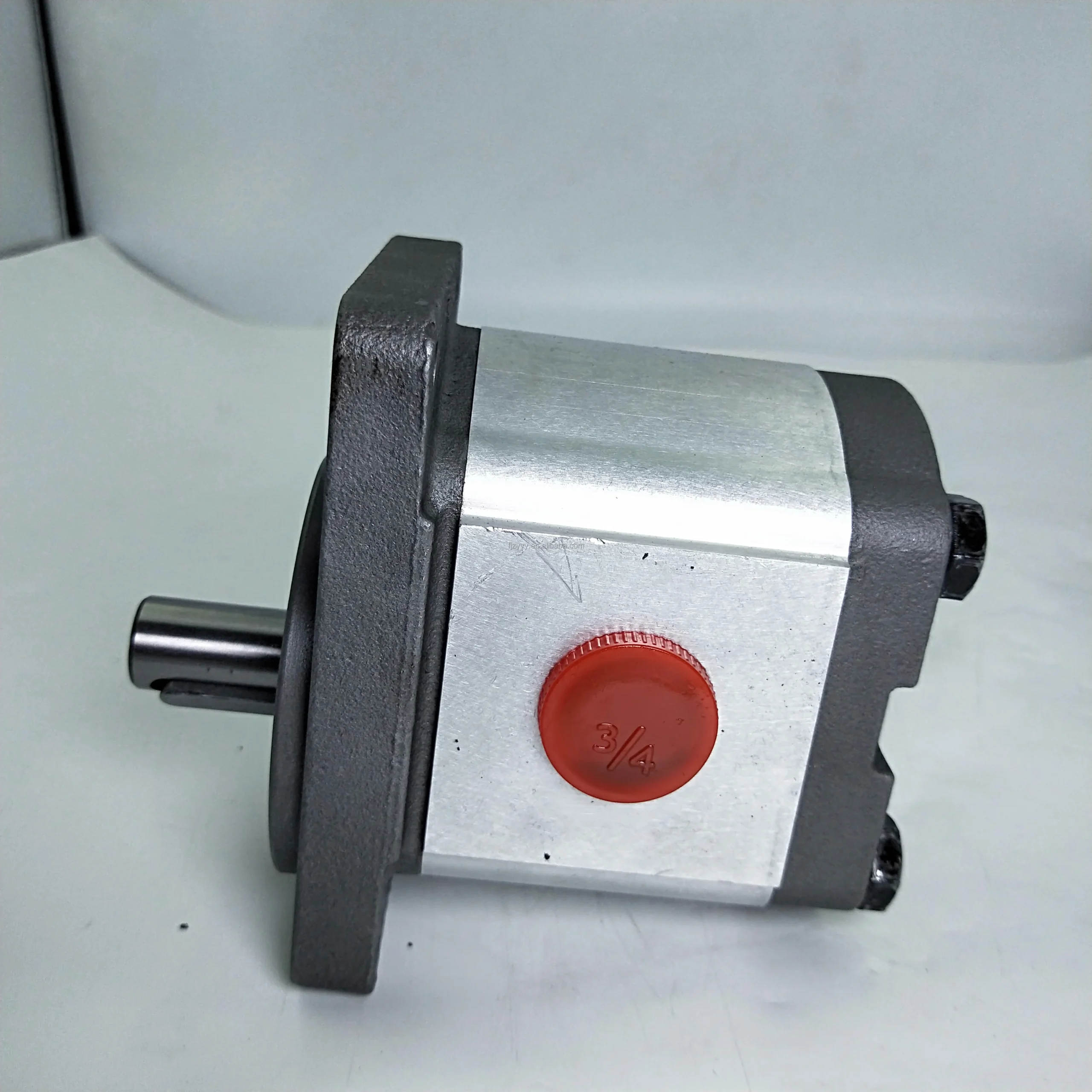

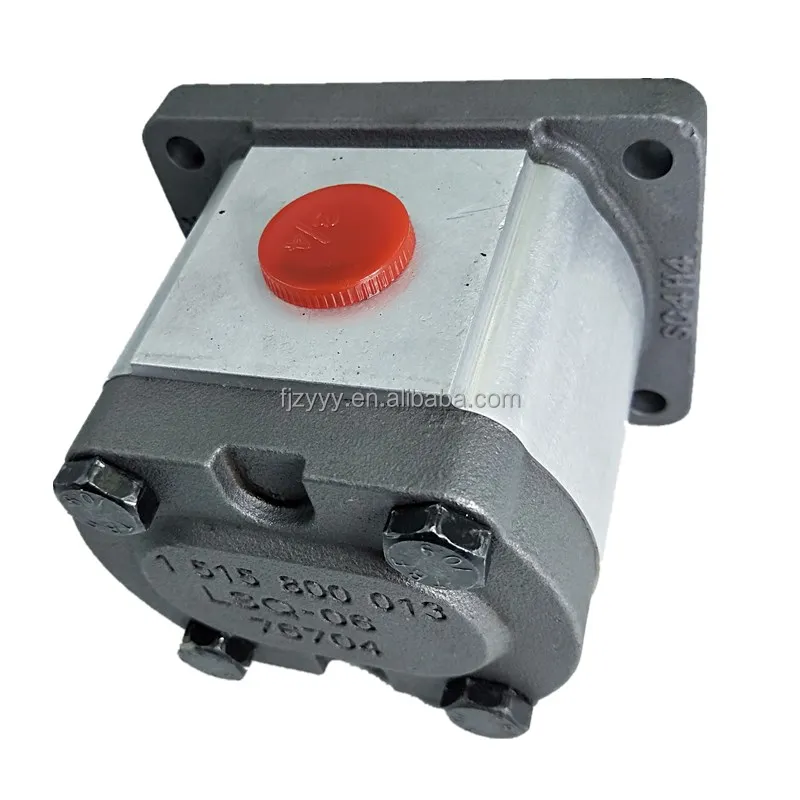

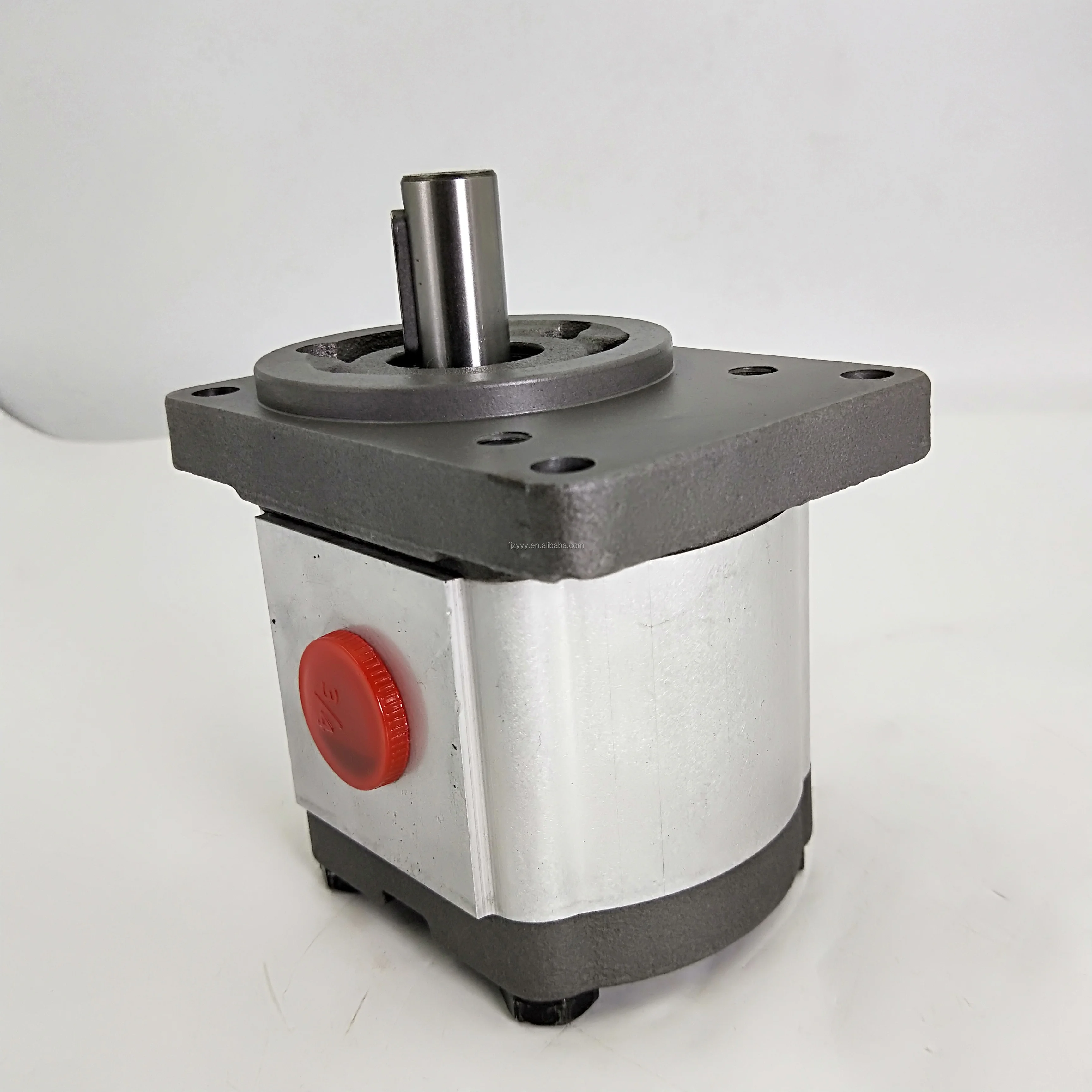

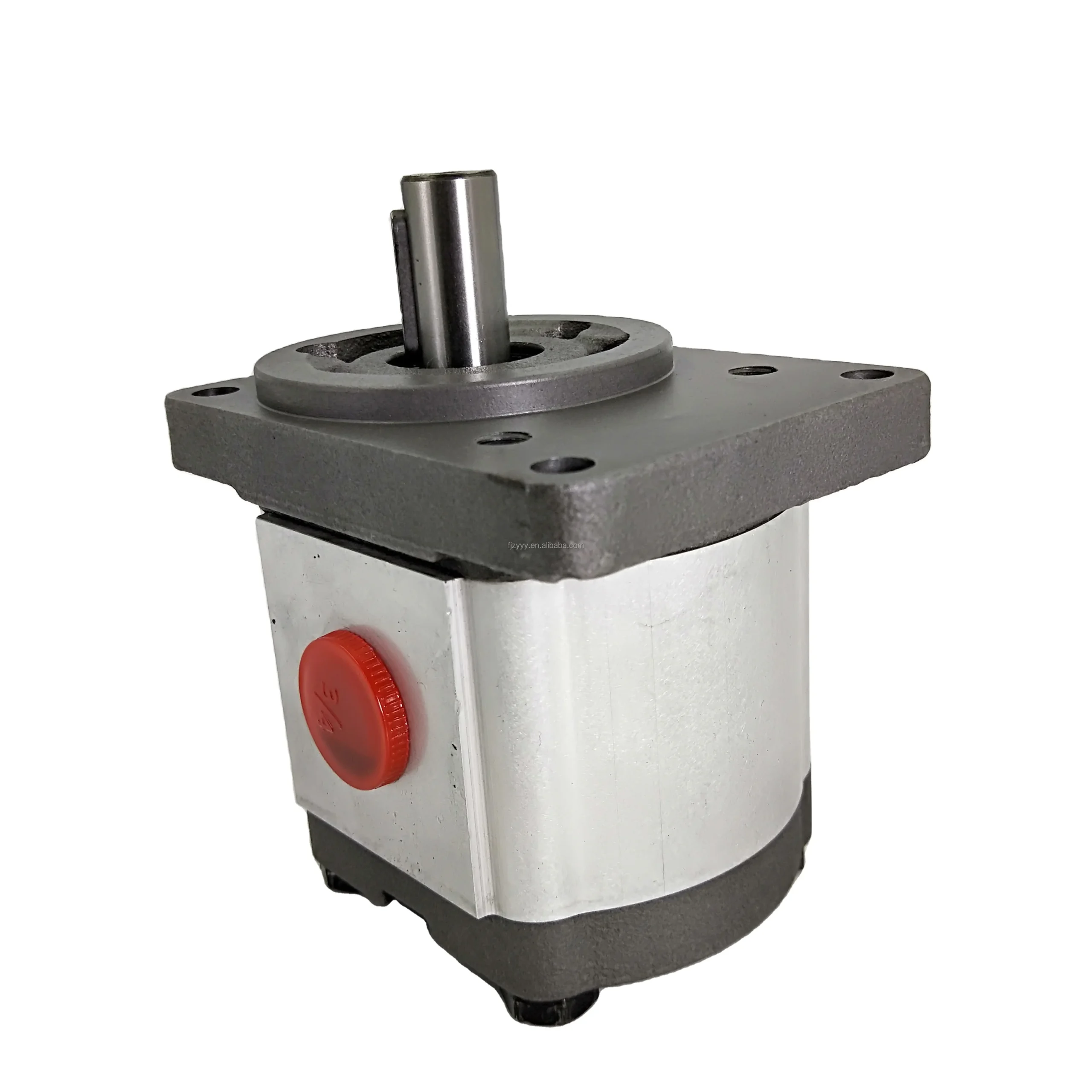

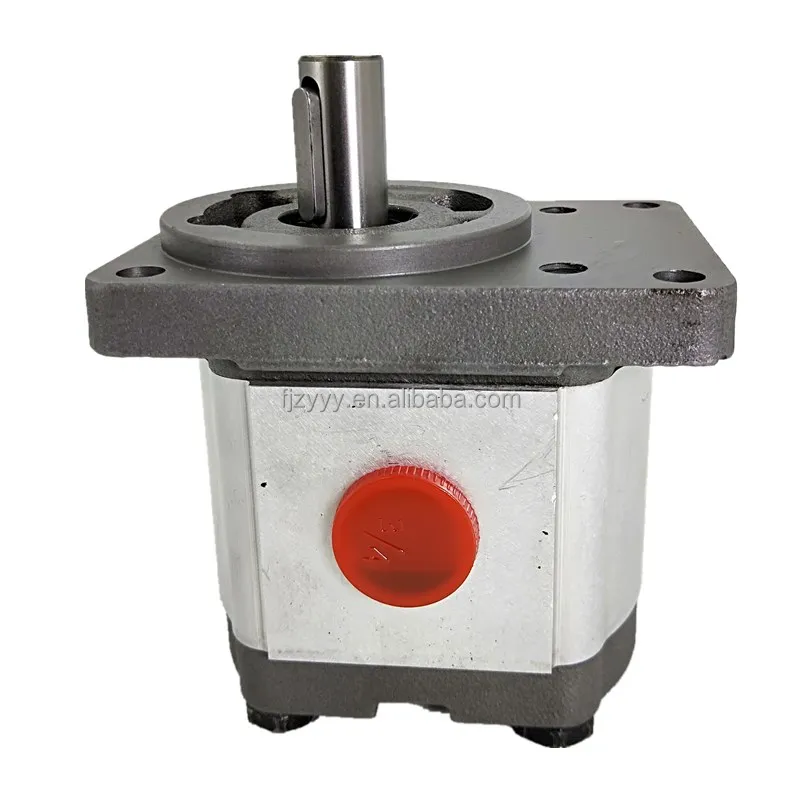

AZPF & AZPG Series High-Performance Hydraulic Gear Pumps
Product Overview: The AZPF and AZPG Series represent the benchmark for power and reliability in industrial and mobile hydraulic sectors. Renowned for their robust pressure handling and compact footprint, this selection features core specifications: AZPF-12-004LNT20MB, AZPF-12-028LPR12MB, and the tandem configuration AZPFF-10-011/011LCB2020MB. Engineered with high-strength extruded aluminum bodies and advanced sleeve bearing technology, these pumps are specifically designed to meet the rigorous demands of forklifts, excavators, and industrial presses for high pressure (up to 28 MPa) and long-term operational stability under heavy loads.
Key Technical Advantages:
100% Plug-and-Play Replacement: Strictly adheres to international OEM specifications. Suffix codes like LNT20MB and LCB2020MB guarantee that mounting flanges (SAE or European standards), shaft ends, and port positions are 100% identical to original units for a seamless installation.
Superior Pressure Resilience: Rated for a continuous operating pressure of 25 MPa (250 Bar) with peaks reaching 28 MPa (280 Bar), built to absorb intense load shocks typical of heavy-duty machinery cycles.
Efficient Pressure Compensation: Features automatic axial gap-compensated wear plates to minimize internal leakage, maintaining volumetric efficiencies over 93% throughout the pump’s service life and effectively reducing system heat.

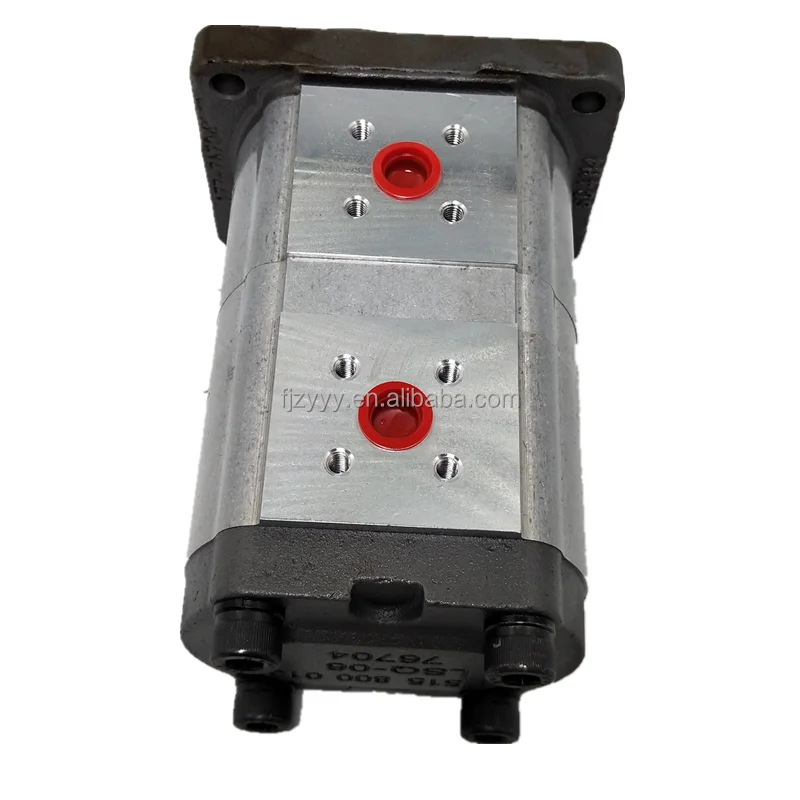

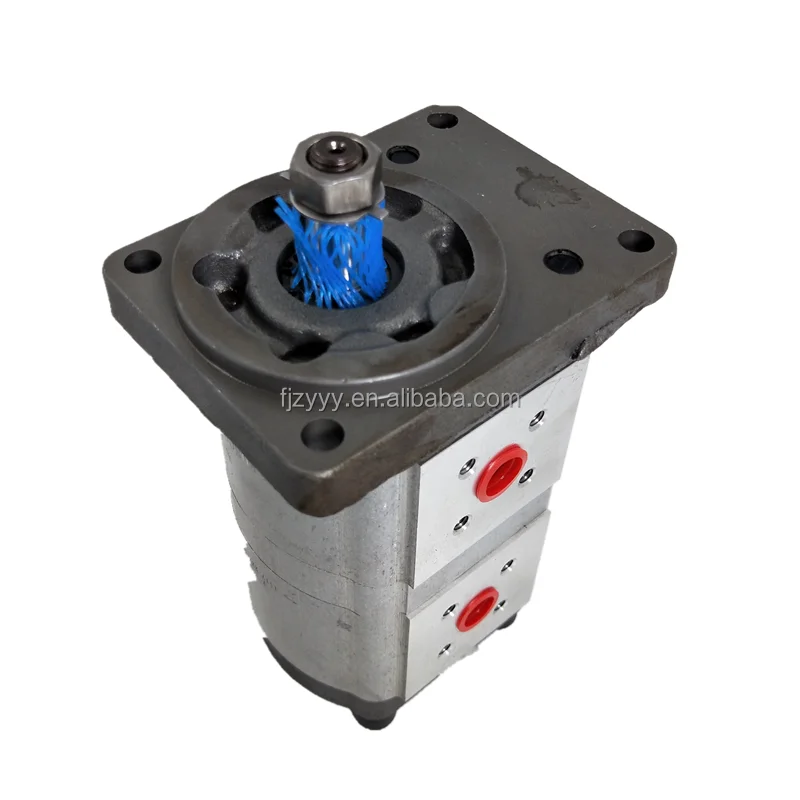

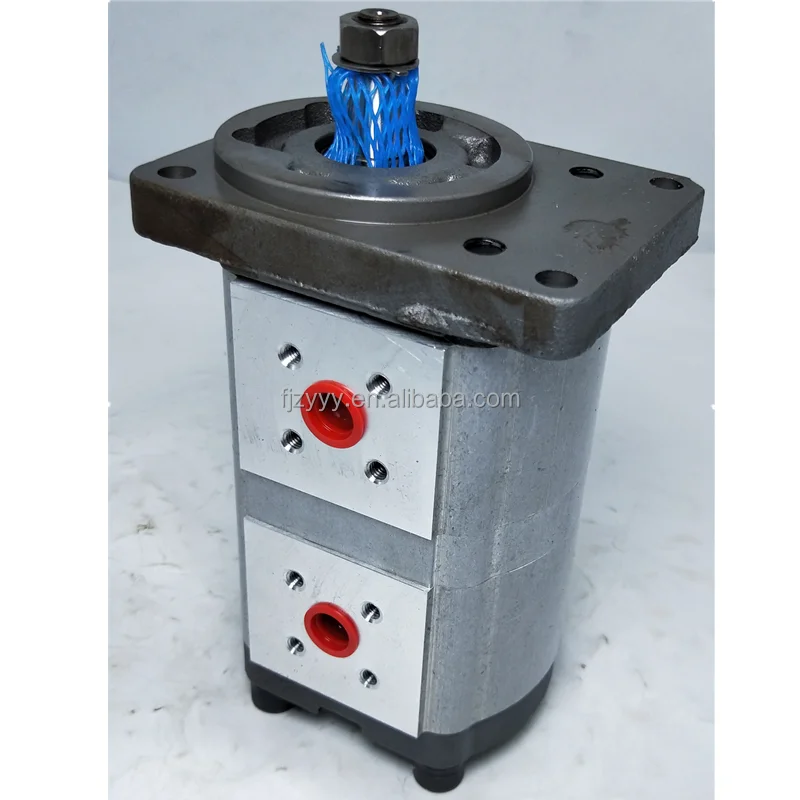

Flexible Tandem Configurations: Supports single, double (e.g., AZPFF series), and even triple pump setups, allowing a single drive shaft to power multiple independent circuits, optimizing system space.
Quiet & Smooth Operation: Precision-ground gear sets drastically reduce pressure ripples and mechanical noise during high-pressure cycles, protecting downstream valves and seals.
Detailed Models & Parameters:
Core Series: AZPF, AZPG, AZPFF High Pressure Performance Series.
Model Keywords: AZPF-12-004LNT20MB, AZPF-12-028LPR12MB, AZPFF-10-011/011LCB2020MB.
Displacements: Covering precise specs from 4cc to 28cc/rev and their tandem combinations.
Pressure Ratings: Rated at 25 MPa (250 Bar); Peak pressure up to 28 MPa (280 Bar).
Target Applications: Tractor hydraulics, forklift main lift pumps, injection molding auxiliary circuits, and mobile hydraulic power units (HPU).
