Atos PPGEE & DPGEE Series Integrated Digital Proportional Valves

Product Overview:

The PPGEE and DPGEE series represent the pinnacle of precision in modern hydraulic control. These valves feature Integrated Digital Electronics, enabling stepless regulation of pressure and flow through high-performance open or closed-loop control. While the PPGEE-6 focuses on precision proportional pressure reduction, the DPGEE-10 utilizes a pilot-operated structure to deliver high-flow directional control at the NG10 size. These valves are widely used in injection molding, ceramic presses, metal forming, and various automated production lines, serving as core components for the digital transformation of hydraulic systems.

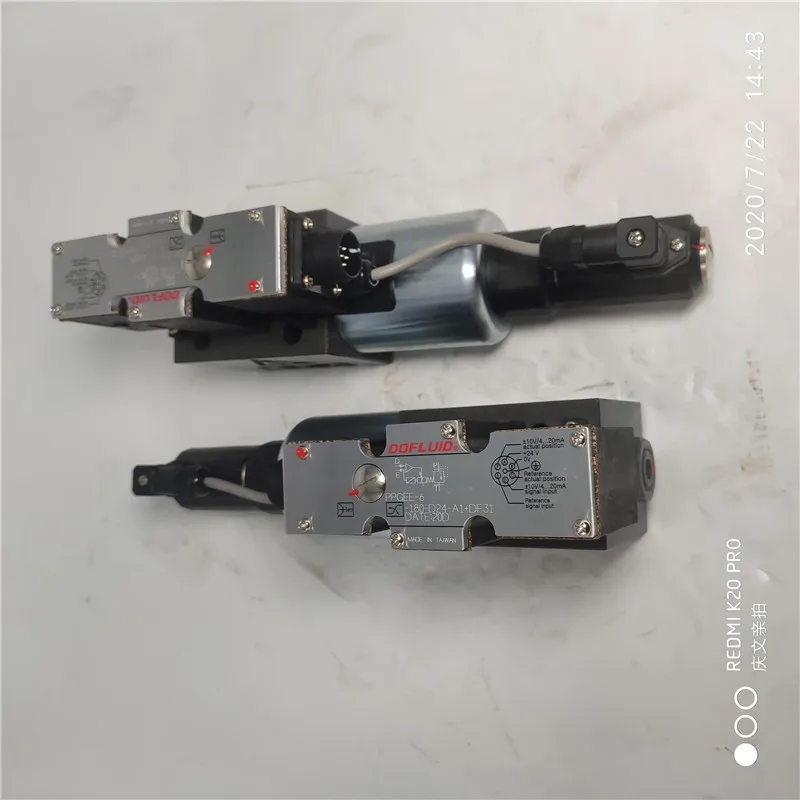

Featured models: PPGEE-6-180-D24-A1, DPGEE-10-3C40-75-D24-A1-16F, and DPGEE-10-3C2-75-D24-A1-N+DF31.

Key Technical Advantages:

• Integrated Digital Amplifier: The driver is mounted directly on the valve, receiving commands via the A1 analog interface (or digital fieldbus), offering superior EMI resistance and simplified wiring.

• High-Response Pilot Technology: The DPGEE series utilizes a pilot-operated design to ensure excellent dynamic characteristics and stability during high-flow switching.

• Precision Pressure Regulation: The PPGEE series is engineered for proportional pressure reduction, featuring a 180 bar range paired with a sensitive 24V DC solenoid.

• Versatile Spool Configurations: Available with 3C40, 3C2, and other spool logics to meet diverse actuator requirements (cylinders, motors) for synchronized or independent control.

• Industrial Resilience: Compliant with 2026 Industry 4.0 standards, featuring high ingress protection and strict electromagnetic compatibility (EMC).

Detailed Specifications & Parameters:

• Featured Model Matrix:

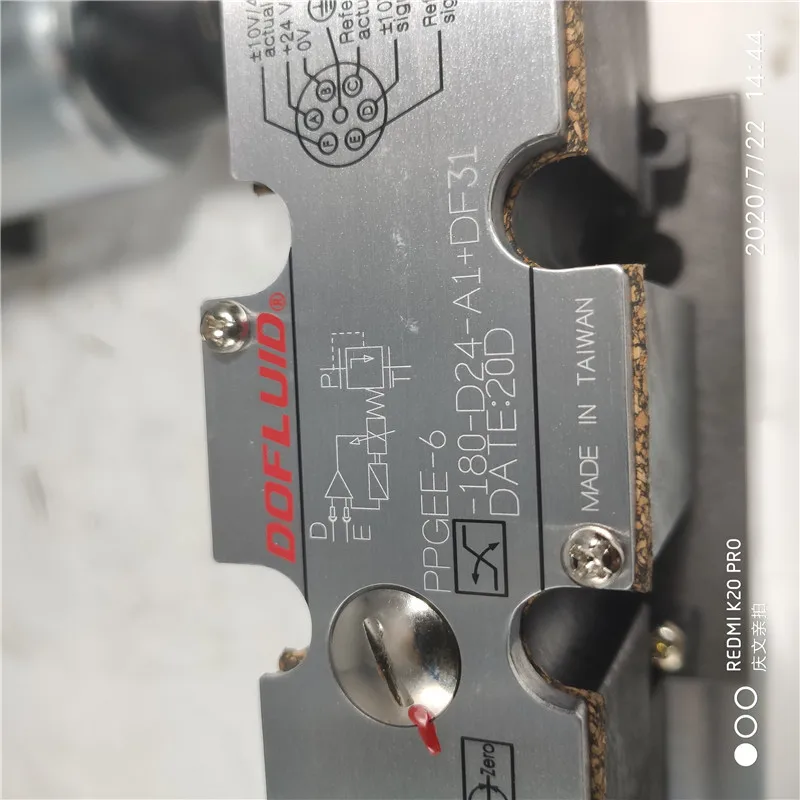

  • PPGEE-6-180-D24: Size NG6, proportional pressure reducing valve, max regulated pressure 180 bar, 24V DC supply.

  • DPGEE-10-3C40: Size NG10, pilot-operated proportional directional valve, 75 L/min nominal flow rating.

  • DPGEE-10-3C2: Size NG10, specialized spool function supporting high-performance control logic.

• Core Technical Specs:

  • Operating Voltage: 24V DC (D24).

  • Command Signal: Standard analog A1 signal (typically $\pm 10\text{V}$ or $4-20\text{mA}$).

  • Max Operating Pressure: Up to 315-350 bar at port P.

  • Seal Material: High-quality standard seals; optional FKM (Viton) for chemical/thermal resistance.
