Atos PPGEE & DPGEE Series Integrated Digital Proportional Valves

Product Overview:

The Atos PPGEE and DPGEE series represent the pinnacle of digital hydraulic control technology. These valves feature integrated high-performance digital electronics (OBE), enabling precise, stepless regulation of pressure and flow. The PPGEE-6 focuses on proportional pressure reduction at the NG6 size, while the DPGEE-10 utilizes a pilot-operated structure to provide robust directional and flow management at the NG10 size. With the DF31 digital preset option, these valves deliver exceptional dynamic response and repeatability for 2026 smart manufacturing applications, including injection molding and metal forming.

Featured models: PPGEE-6-180-D24-A1, DPGEE-10-2B2B-75-D24-A1, and DF31 Digital Modules.

Key Technical Advantages:

• Integrated Digital Driver (A1 Interface): The OBE is mounted directly on the valve, enhancing noise immunity and simplifying control cabinet wiring.

• Precision Pressure Regulation (PPGEE): A 180 bar regulation range paired with D24 proportional solenoids ensures highly sensitive response.

• High-Performance Pilot Actuation (DPGEE): The pilot-operated design ensures excellent stability and low hysteresis even during high-flow switching.

• DF31 Digital Features: Provides enhanced diagnostics and parameter settings for refined control curve compensation.

• Industry 4.0 Ready: Compliant with the latest EMC standards and IP65/IP67 ratings, designed for harsh industrial environments.

Detailed Specifications & Model Matrix:

• Featured Model Matrix:

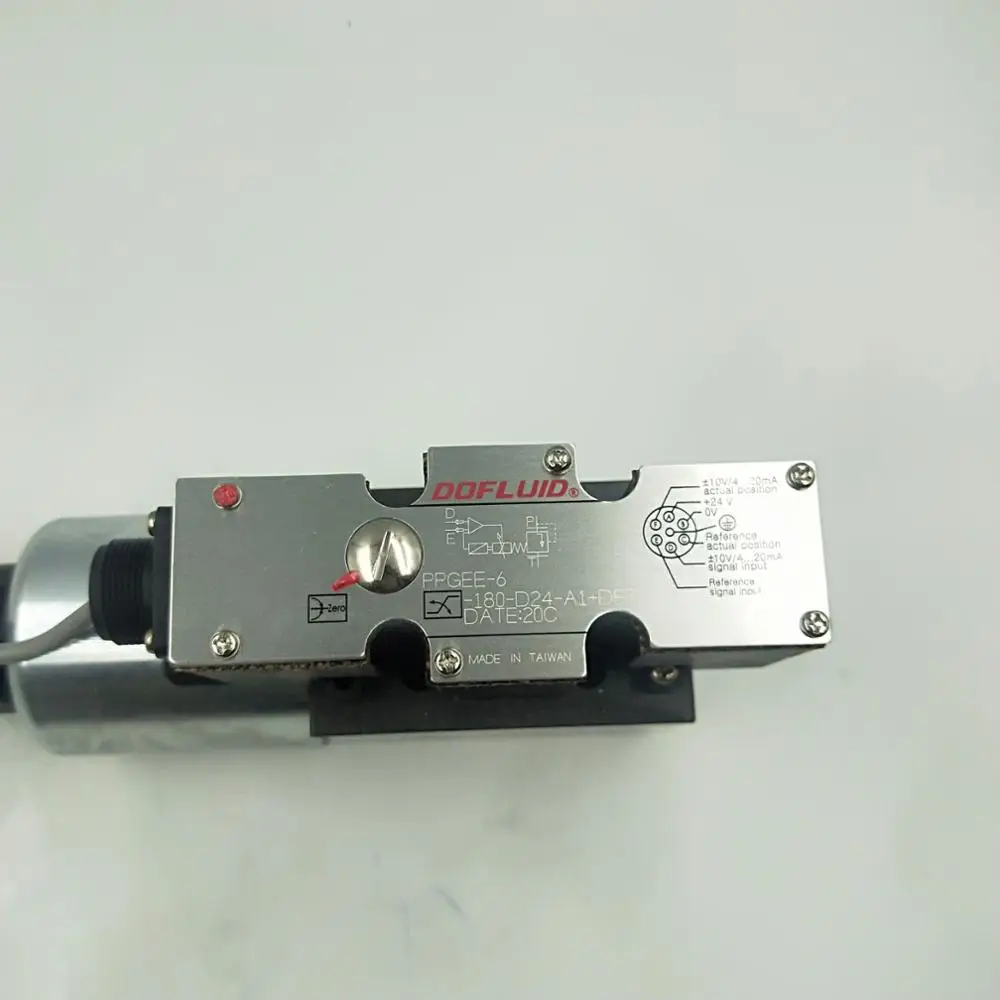

  • PPGEE-6-180: Size NG6, proportional pressure reducing valve, max regulated pressure 180 bar.

  • DPGEE-10-2B2B: Size NG10, pilot-operated proportional directional valve, 75 L/min nominal flow.

• Technical Specifications:

  • Supply Voltage: 24V DC (D24).

  • Command Signal: A1 Analog interface ($\pm 10\text{V}$ or $4-20\text{mA}$).

  • Max Operating Pressure: Up to 315-350 bar at port P.

  • Hysteresis: $\le 0.1\%$ (with closed-loop feedback).
