Atos DLHZO Proportional Valve | DLHZO-LEBQP-SN-NP-060 | DLHZO-TEB-SN-NP-040 | Servo-Proportional Control
| Model Number | DLHZO-LEBQP-SN-NP-060-V71/Q |
|---|
Product Description
Atos DLHZO Series High-Performance Servo-Proportional Valves
Product Overview:
The Atos DLHZO series represents the cutting edge of proportional hydraulic control, classified as “Servo-Proportional Valves.” This series integrates advanced Digital Electronics (TEB/LEB) and high-precision LVDT spool displacement sensors for true closed-loop control. Their dynamic performance rivals traditional servo valves, featuring exceptionally high frequency response and near-zero hysteresis. The LEBQP models further integrate pressure/flow (P/Q) composite control logic. These valves are essential for precision presses, plastics machinery, simulators, and high-accuracy systems requiring synchronized motion.

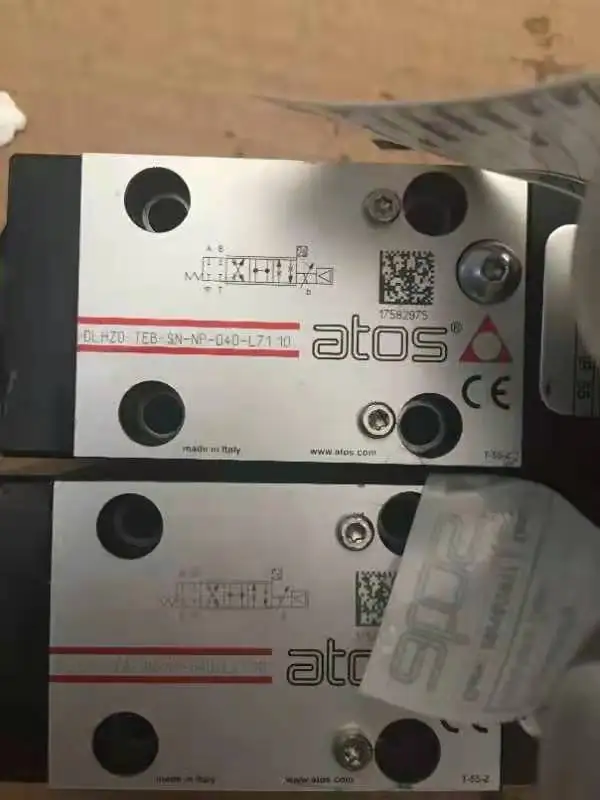

Featured models: DLHZO-LEBQP-SN-NP-060-V71/Q and DLHZO-TEB-SN-NP-040-L71/I.
Key Technical Advantages:
Servo-Class Dynamic Response: Engineered for ultra-high frequency switching and precision trajectory tracking, meeting the most demanding industrial closed-loop requirements.
Integrated On-Board Electronics (OBE): TEB (Standard) and LEB (Enhanced) drivers are mounted directly on the valve, communicating via analog or digital (NP protocol) interfaces for superior noise immunity.
Closed-Loop Spool Positioning (LVDT): Internal sensors monitor and correct spool displacement in real-time, ensuring linear flow control and exceptional repeatability.
Composite P/Q Control: The LEBQP version allows simultaneous regulation of Flow (Q) and Pressure (P), ideal for complex load management systems.
Standard Mounting: Utilizes the NG6 (ISO 4401-03) interface, allowing for direct replacement and performance upgrades of existing systems.
Detailed Specifications & Model Matrix:
Core Model Matrix:

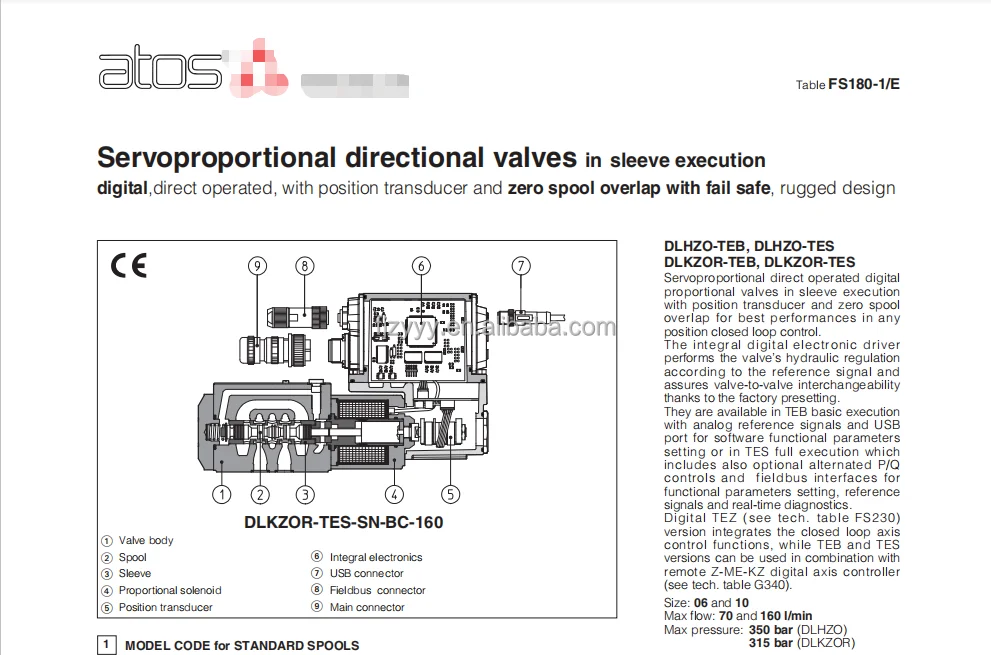

DLHZO-LEBQP: Digital servo-proportional valve with composite pressure and flow control, Size NG6.
DLHZO-TEB: High-performance digital proportional valve with integrated driver.
060 / 040 Flow Ratings: Correspond to specific flow curves at rated pressure drops for precise load matching.
Technical Specifications:
Max Operating Pressure: 315 – 350 bar.
Supply Voltage: 24V DC.
Command Signal: V71 ($\pm 10\text{V}$ voltage) or L71 ($4-20\text{mA}$ current).
Hysteresis: Effectively 0% due to high-performance electrical feedback.
