Aron Type AS Series Solenoid Valve | AS32060b | AS32061a | AS22060b | NG6 CETOP 3 | 24V DC 230V AC

AS Series High-Performance Direct-Operated Solenoid Valves

Product Overview: The AS series is a range of compact, direct-operated solenoid spool valves fully compliant with the ISO 4401-03 (CETOP 3) mounting standard. Engineered for industrial automation, machine tools, and compact Hydraulic Power Units (HPUs), these valves are recognized for their fast response times and extended service life. Utilizing wet-pin solenoid technology, the armature operates within hydraulic fluid, which maximizes heat dissipation and significantly dampens operational noise. The AS series is built for durability, supporting 100% ED (Continuous Duty) cycles in demanding environments.

Featured models include: AS22060b-R230, AS32061a-G24, AS32061a-R230, AS32060b-G24, and AS32060b-R230.

Key Technical Advantages:

• Versatile Logic Options: Includes 2206 (2-pos 4-way) and 3206 (3-pos 4-way) configurations with “a” and “b” solenoid arrangements to match precise directional control requirements.

• Global Power Compatibility: Available with G24 (24V DC) and R230 (230V AC) high-performance coils, making them suitable for both DC control logic and AC power grids.

• Ruggedized Leak-Proof Design: The wet-pin architecture eliminates dynamic seals, preventing common push-rod oil leaks. Rated at IP65 for superior dust and water resistance.

• Standard Interchangeability: Universal NG6 mounting dimensions allow for direct replacement of mainstream brands, reducing overall maintenance costs and downtime.

Detailed Specifications & Parameters:

• Featured Model Matrix:

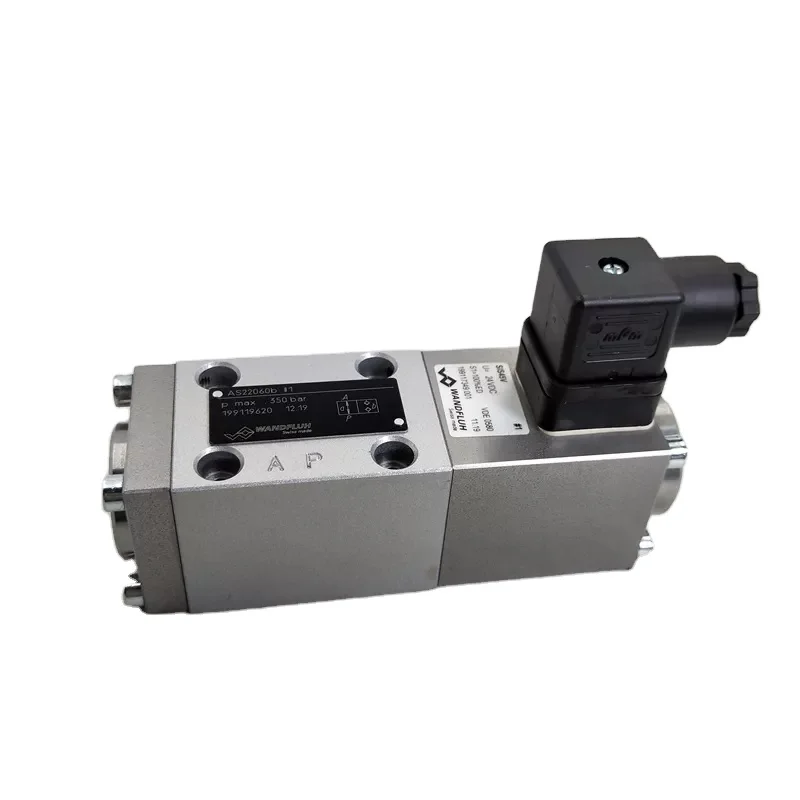

  • AS22060b-R230: 2-position 4-way, “b” solenoid layout, 230V AC actuation.

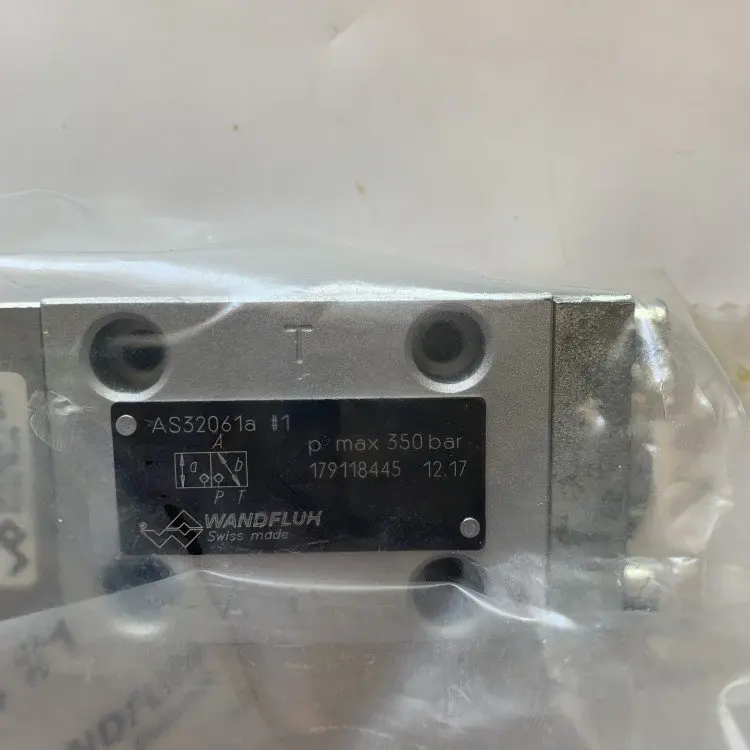

  • AS32061a-G24 / R230: 3-position 4-way, 1a logic, available in 24V DC or 230V AC variants.

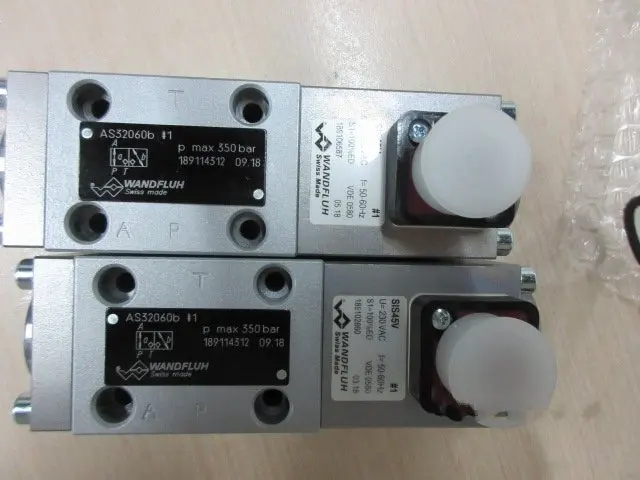

  • AS32060b-G24 / R230: 3-position 4-way, 0b logic, available in 24V DC or 230V AC variants.

• Core Technical Specs:

  • Mounting Interface: CETOP 3 / NG6 / ISO 4401-03.

  • Max Operating Pressure: Rated up to 31.5 MPa (315 bar).

  • Flow Capacity: Up to 60 L/min (depending on spool function).

  • Electrical Connection: Standard DIN 43650 connector compatibility.
