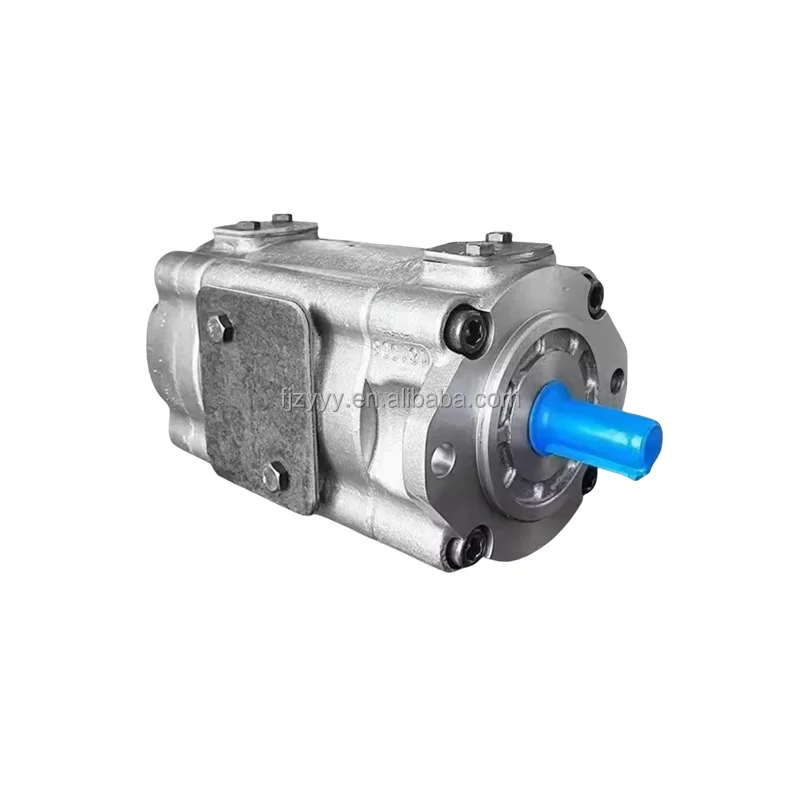

ABT Series High Pressure Vane Pump | ABT1, ABT2, ABT3 | Servo System Ready
| Model Number | ABT-100-2R00-B50Z |
|---|
Product Description

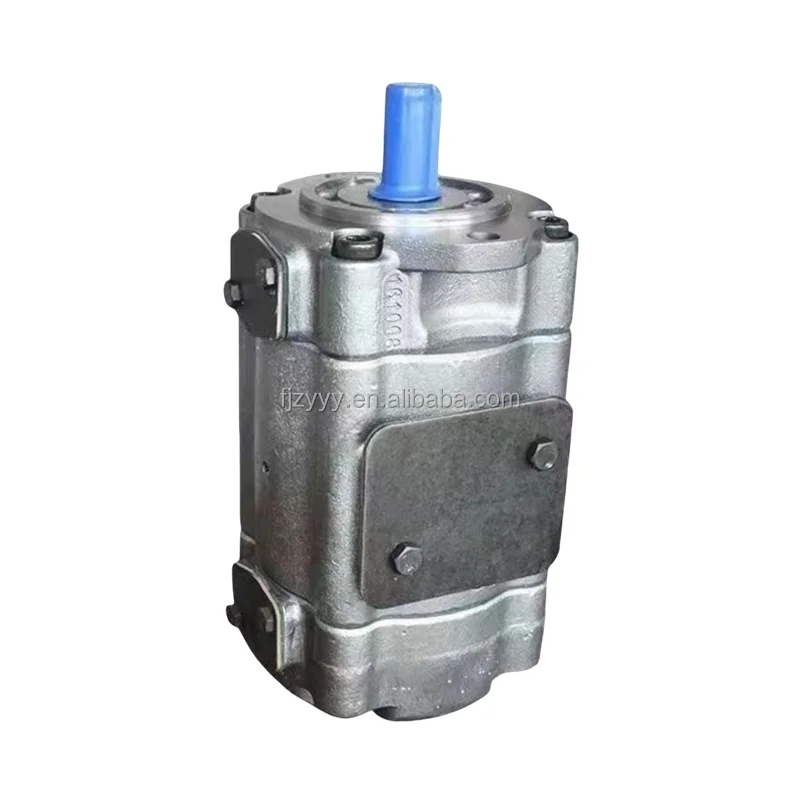

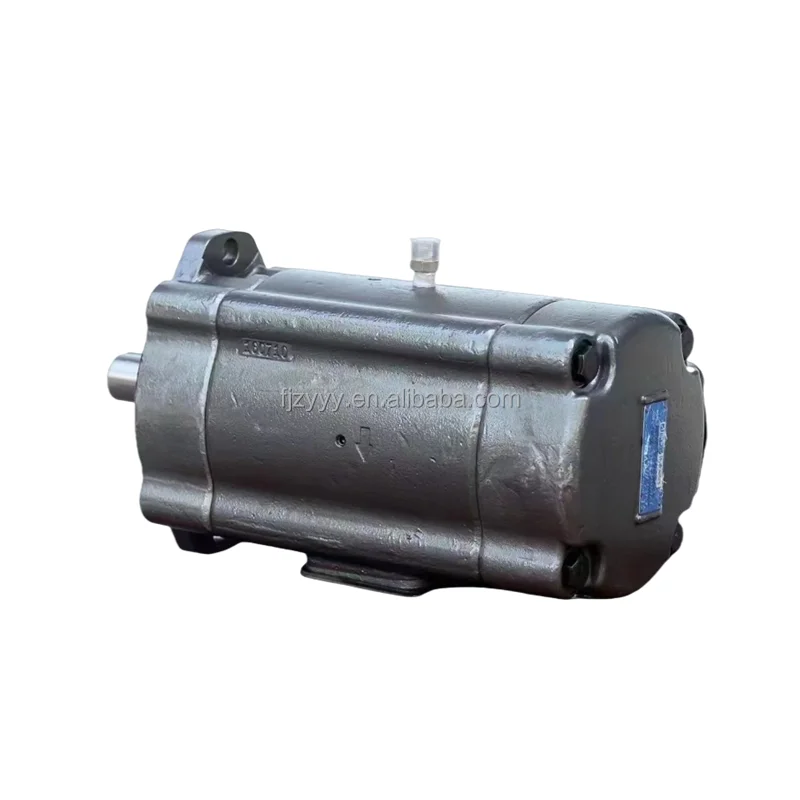

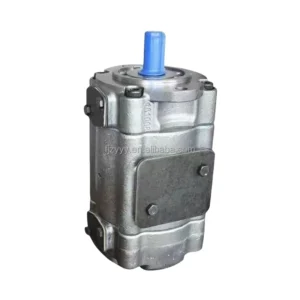

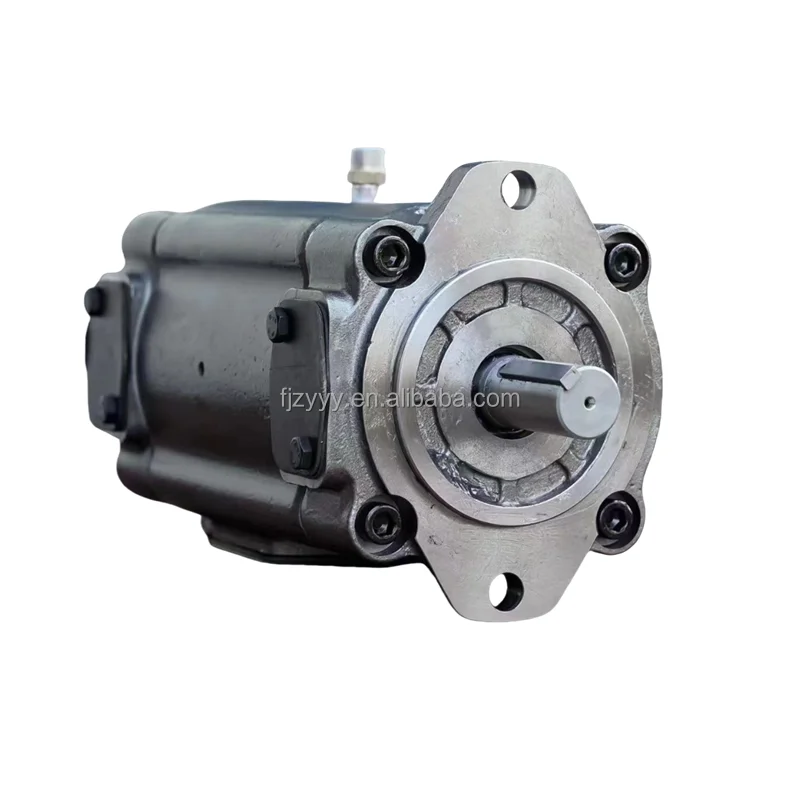

ABT Series High-Pressure Low-Noise Servo Hydraulic Vane Pumps
Product Overview: The ABT Series high-pressure vane pump is the premier power source specifically developed for modern servo-driven hydraulic systems. Engineered to withstand ultra-high operational pressures, the ABT series effectively solves noise and pulsation issues through a precision pressure-balanced construction. This featured range includes core models such as ABT1-32-2L01-B50E, ABT1-64-1R00-B10Z, ABT2-70-1L01-B50Z, and the high-capacity ABT3-160-2R00-B50Z. With a peak pressure capability of up to 32 MPa, the ABT series is the ideal choice for energy-saving upgrades in injection molding machines, bending machines, and precision pressing equipment.
Key Technical Advantages:
Ultra-High Pressure Capability: Constructed with high-strength alloy materials and specialized surface treatments, it delivers rated pressures of 25-32 MPa, far exceeding traditional vane pump limits.
Ultimate Silent Operation & Low Pulsation: Optimized for frequent speed fluctuations in servo-motor drives, it drastically reduces output pressure pulsation, ensuring system stability and ultra-low decibel output.
Superior Volumetric Efficiency: Built-in automatic compensation ensures peak efficiency even under continuous high-pressure cycles, reducing oil heat generation and enhancing the dynamic response of servo systems.
Modular Cartridge Maintenance: Features a “drop-in” cartridge design. Maintenance is streamlined—swap the cartridge kit without disconnecting main plumbing to restore 100% factory performance, significantly reducing downtime.
Target Applications: Servo-saving injection molding machines, automated die-casting systems, CNC bending machines, high-pressure test benches, and aerospace hydraulic simulations.

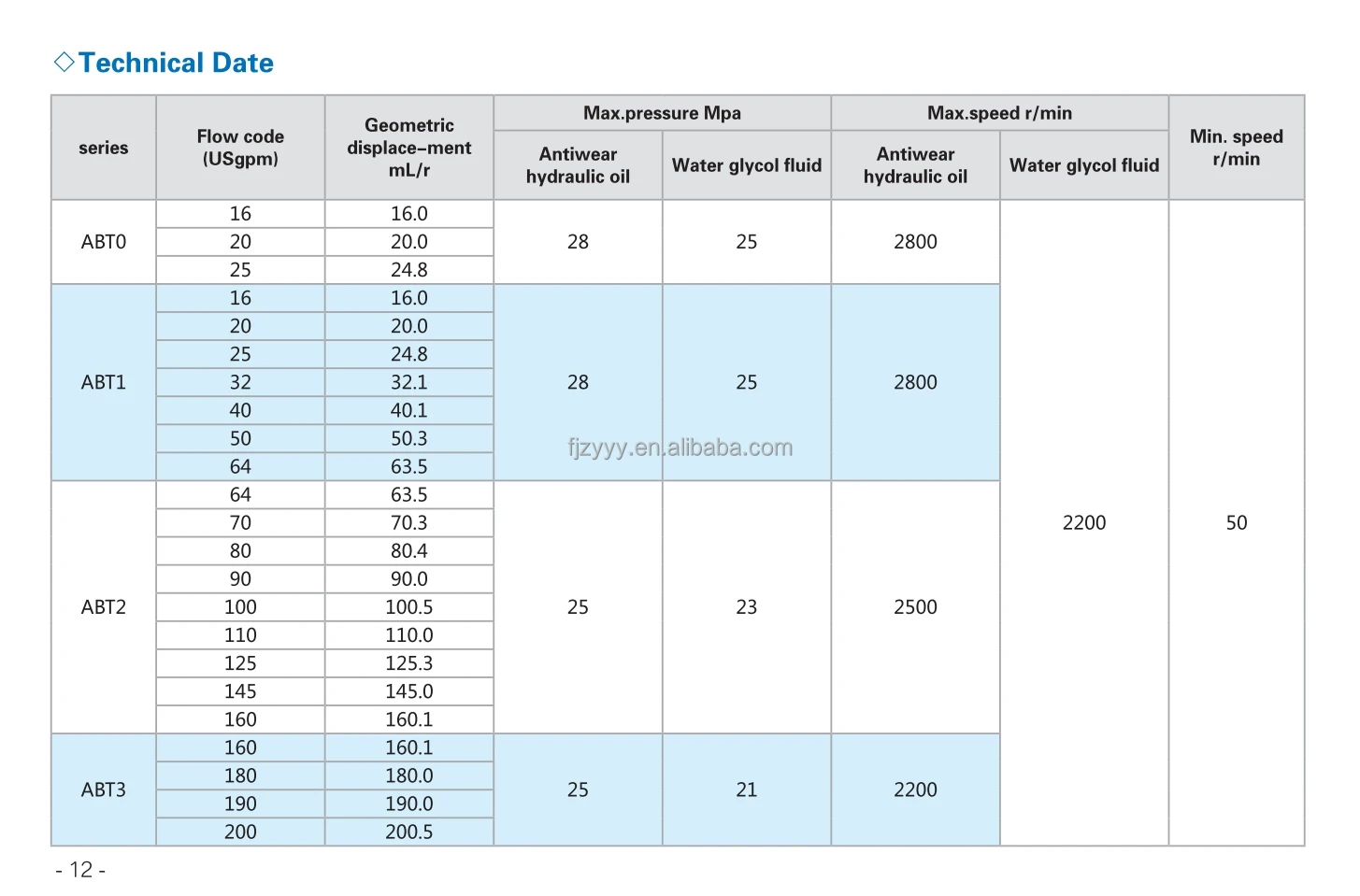

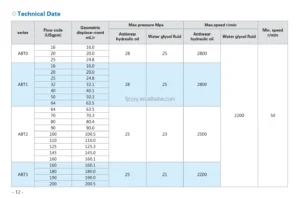

Detailed Models & Parameters:
Core Series: ABT1, ABT2, ABT3 Series High Pressure Pump.
Model Keywords: ABT1-32-2L01-B50E, ABT1-64-1R00-B10Z, ABT2-70-1L01-B50Z, ABT3-160-2R00-B50Z.
Displacement Range (cm³/rev): Complete spectrum featuring specifications like 32, 64, 70, and 160.

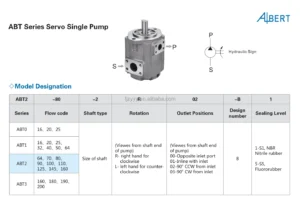

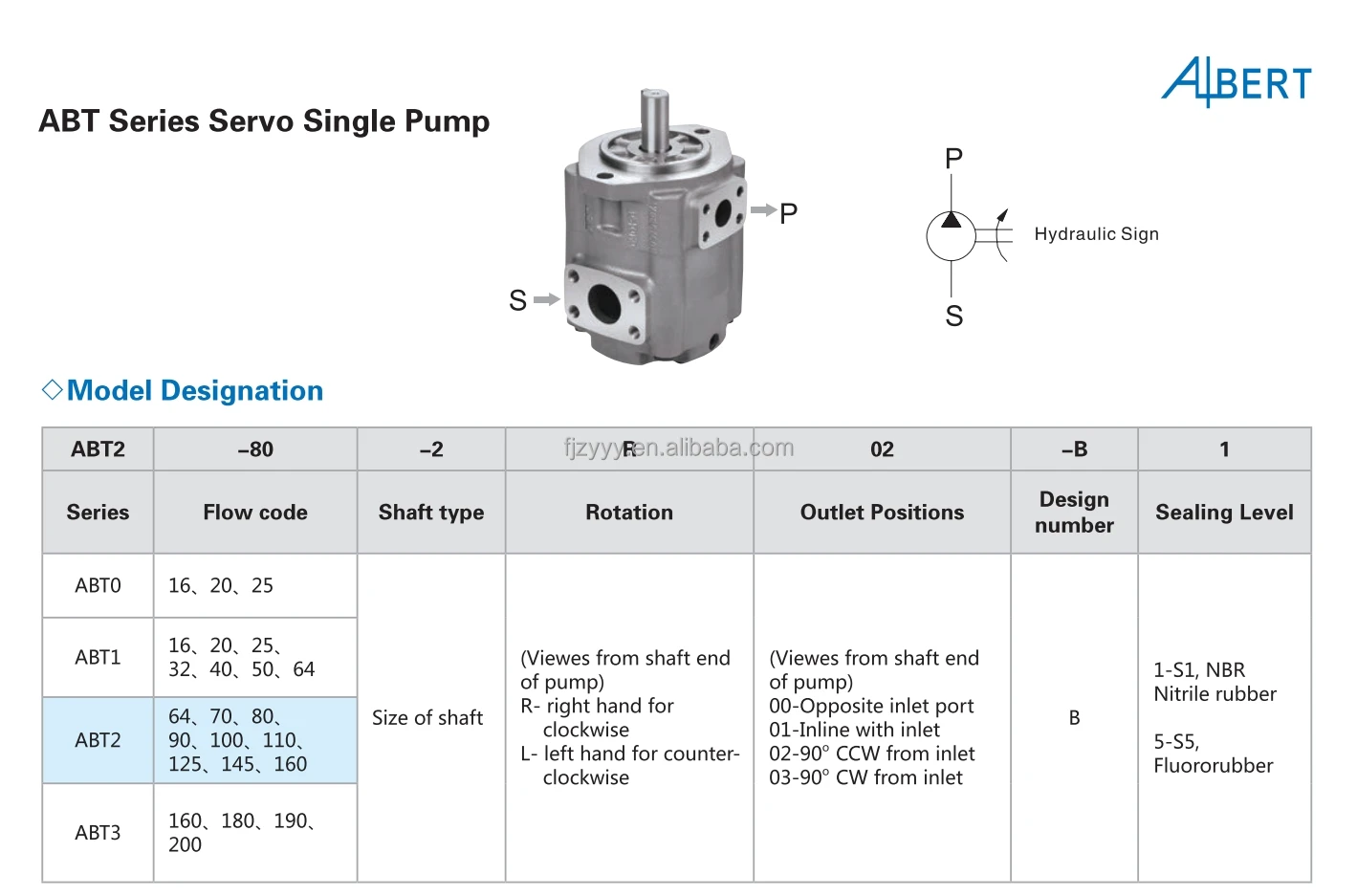

Technical Specs: 1 / 2 (Shaft identifiers); R / L (Rotation direction: Right/Left); 00 / 01 (Port orientation codes); B10 / B50 (Design sequence & performance codes); E / Z (Seal & specific configuration identifiers).
Pressure Ratings: Rated continuous working pressures up to 25-32 MPa (250-320 Bar).
