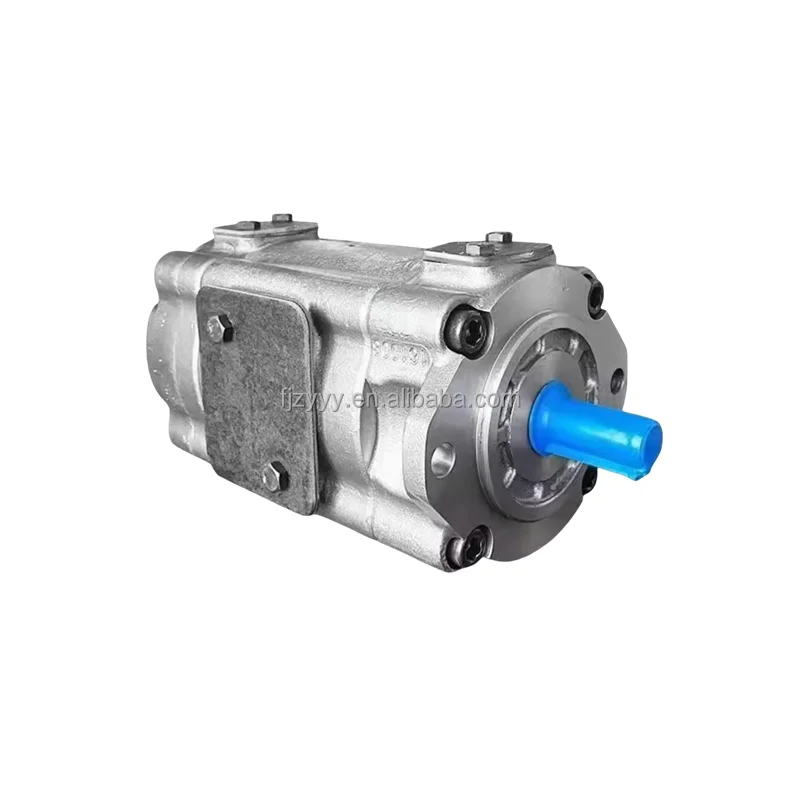

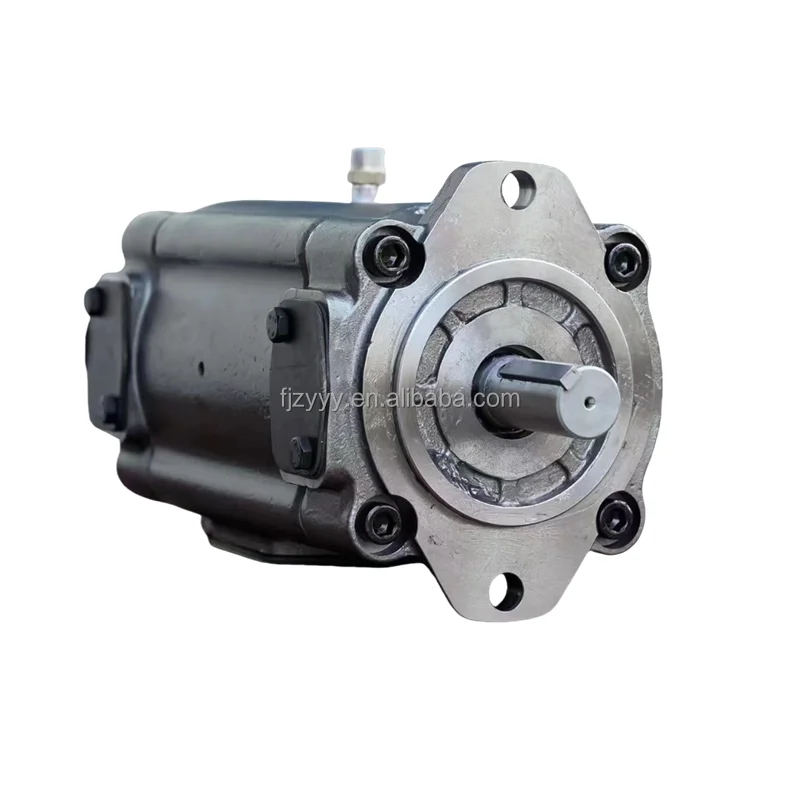

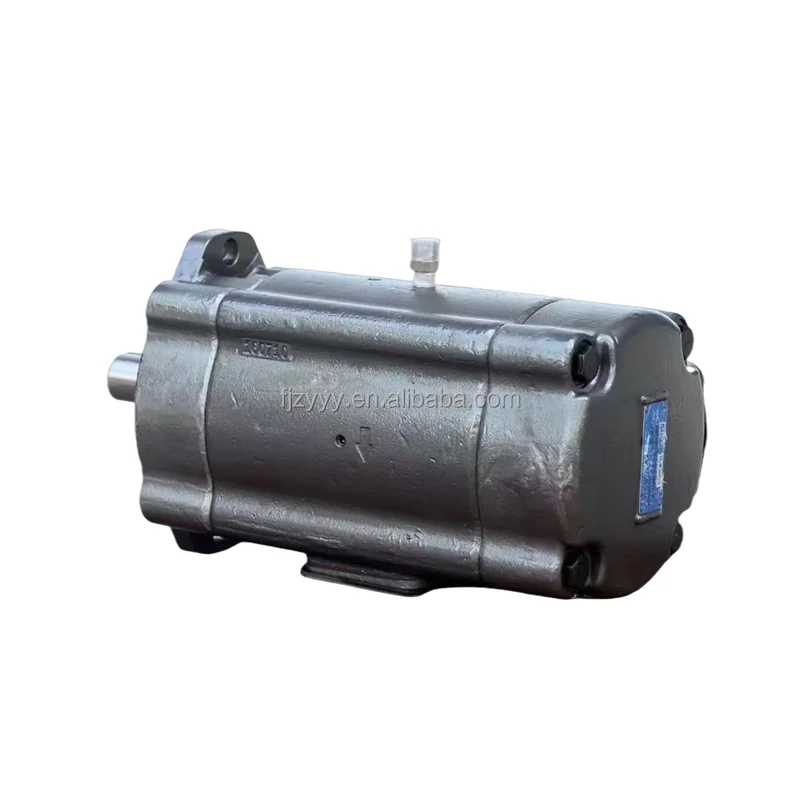

ABT Series High Pressure Vane Pump | ABT1, ABT2, ABT3, ABT22T | Servo System Ready
| Model Number | ABT-100-2R00-B50Z |
|---|
Product Description
ABT Series High-Pressure Low-Noise Servo Hydraulic Vane Pumps
Product Overview: The ABT Series high-pressure vane pump is the definitive power core engineered for modern servo-driven hydraulic systems. Designed to withstand peak pressures up to 32 MPa, this industrial-grade pump ensures exceptional stability even during the frequent acceleration and deceleration cycles typical of servo motors. This range features core single pumps including ABT1-64-1R00-B10Z, ABT2-125-2L02-B50Z, ABT2-160-2R00-B50Z, ABT3-160-2R01-B50E, and the high-performance double pump ABT22T-125-80-1R00-C1. Utilizing a precision pressure-balanced construction, the ABT series is the premier choice for achieving green energy transformation and precise control in industrial machinery.
Key Technical Advantages:
Superior Servo Compatibility: Specifically optimized for the high dynamic response of servo motors, supporting low-speed pressure holding and instantaneous high-speed output while significantly lowering system energy consumption.
Extreme Pressure Durability: Utilizing specialized hardened alloy steel and floating side-plate technology, it handles rated pressures of 25-32 MPa, far exceeding the performance limits of traditional vane pumps.
Ultimate Silence & Low Pulsation: Precision-ground rotors and noise-canceling groove designs drastically reduce pressure pulsation, ensuring ultra-low decibel levels even under ultra-high-pressure operation.
Rapid Maintenance with Cartridge Kits: The internal components feature a “drop-in” modular design. Maintenance is streamlined—swap the cartridge kit without disconnecting main plumbing to restore 100% factory performance and minimize downtime.
Target Applications: Servo energy-saving injection molding machines, ceramic brick presses, high-pressure bending machines, marine steering systems, and automated precision assembly lines.
Detailed Models & Parameters:
Core Series: ABT1, ABT2, ABT3 (Single) & ABT22T (Double) Series.
Model Keywords: ABT1-64-1R00-B10Z, ABT2-125-2L02-B50Z, ABT2-160-2R00-B50Z, ABT3-160-2R01-B50E, ABT22T-125-80-1R00-C1.

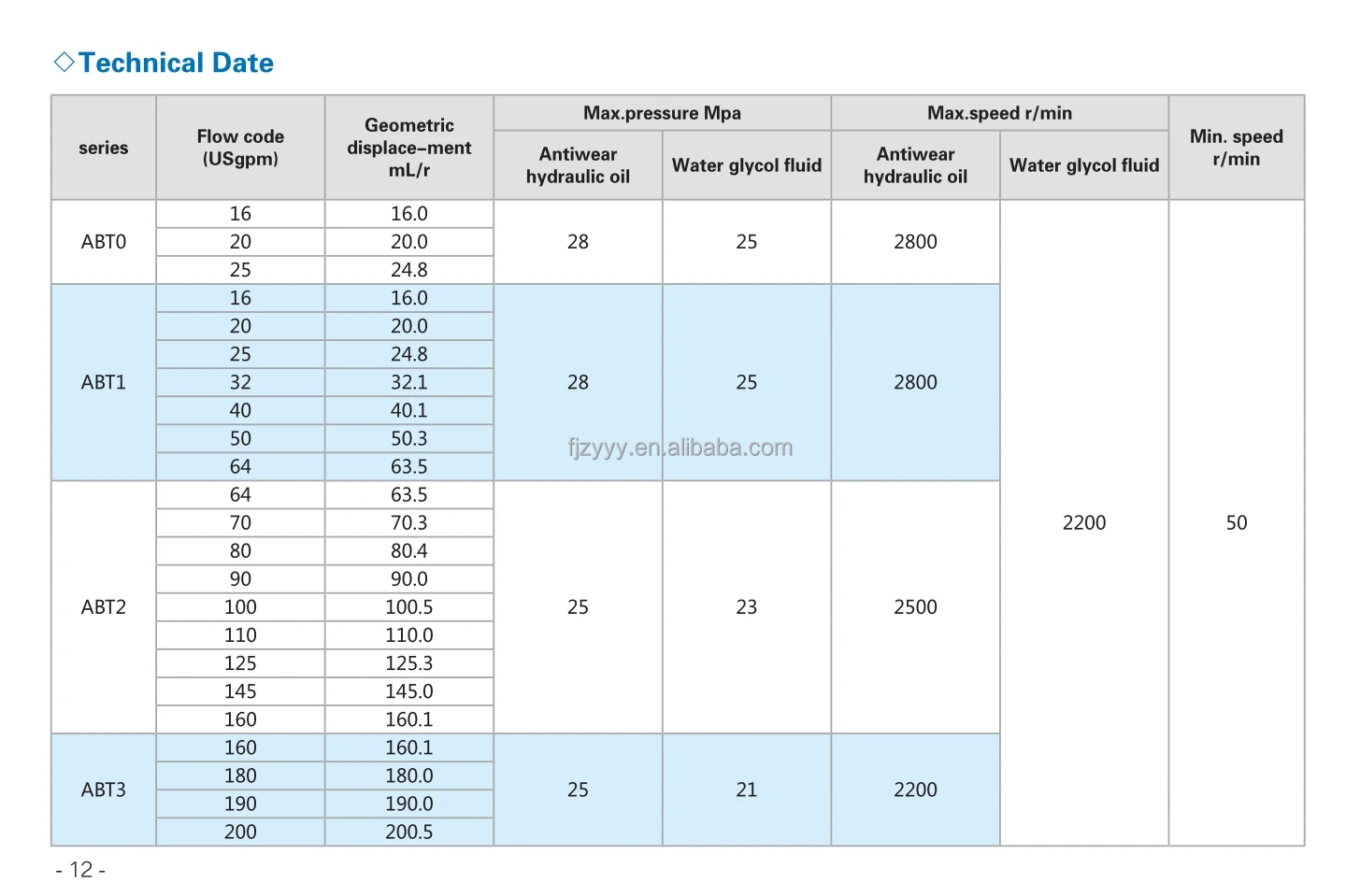

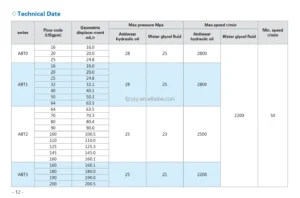

Displacement Range (cm³/rev): Complete spectrum featuring specifications like 64, 80, 125, and 160.

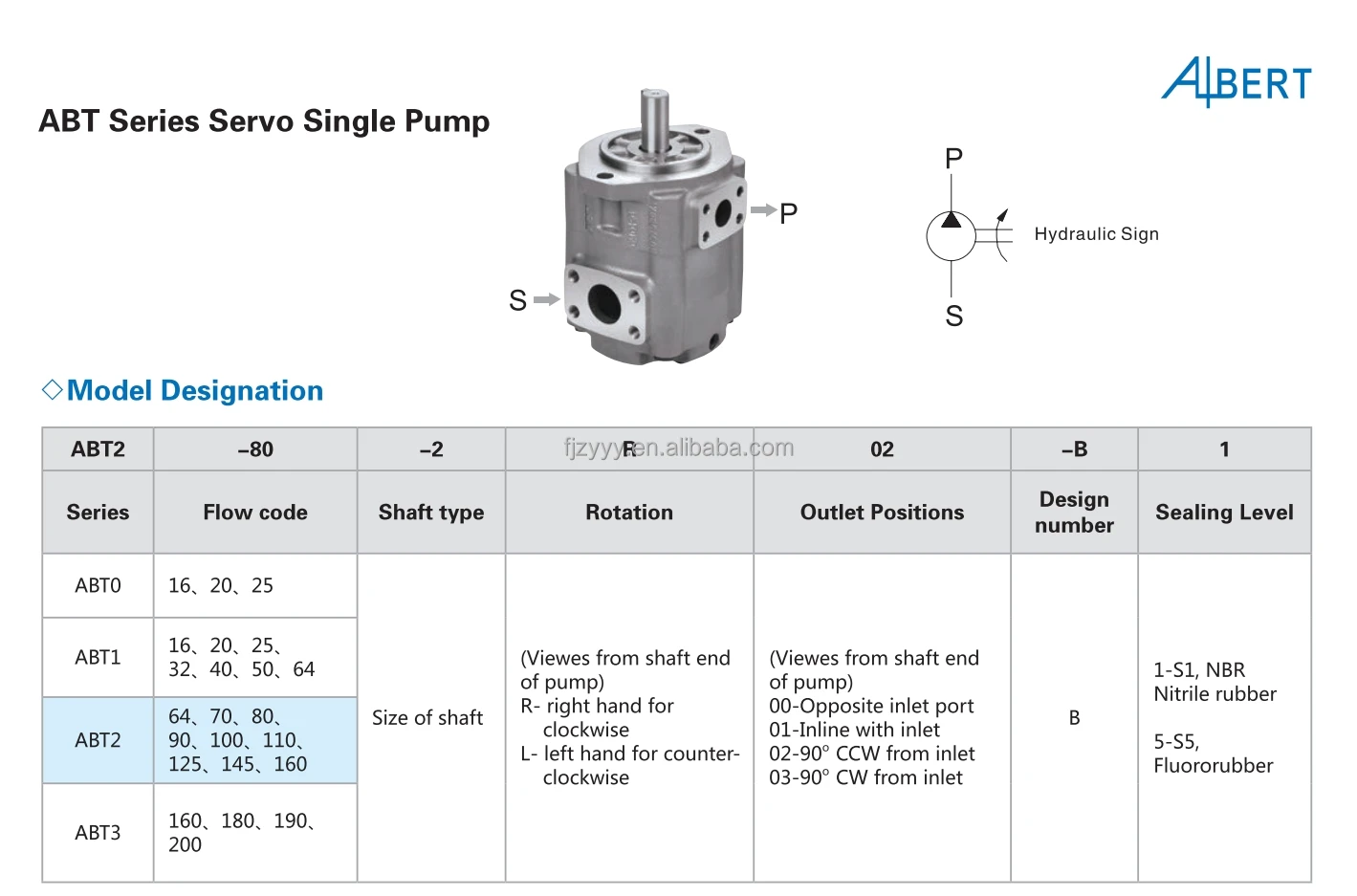

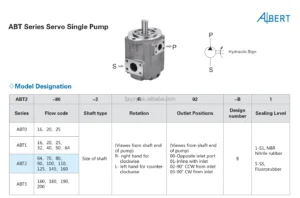

Technical Specs: 1 / 2 (Shaft identifiers); R / L (Rotation: Right/Left); 00 / 01 / 02 (Port orientation codes); B10 / B50 (Design sequence codes); E / Z (Seal & configuration identifiers).
Pressure Ratings: Rated continuous working pressures up to 25-32 MPa (250-320 Bar).
