63SCY14-1B Pump | Manual Variable Axial Piston Pump | 63ml/r High Pressure Plunger Pump
| Flow Rate | customizable |
|---|
Product Description

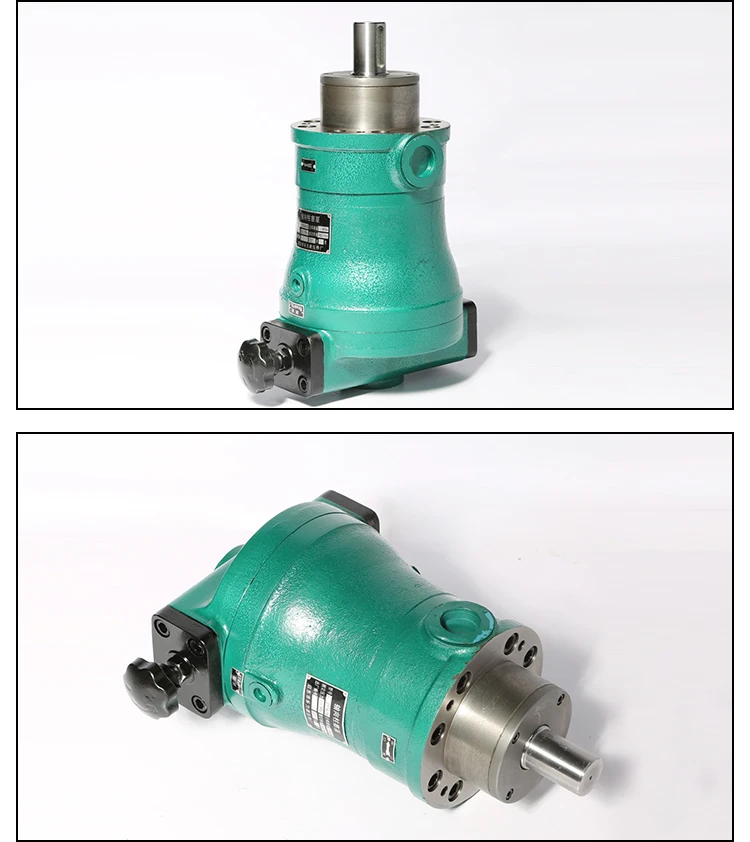

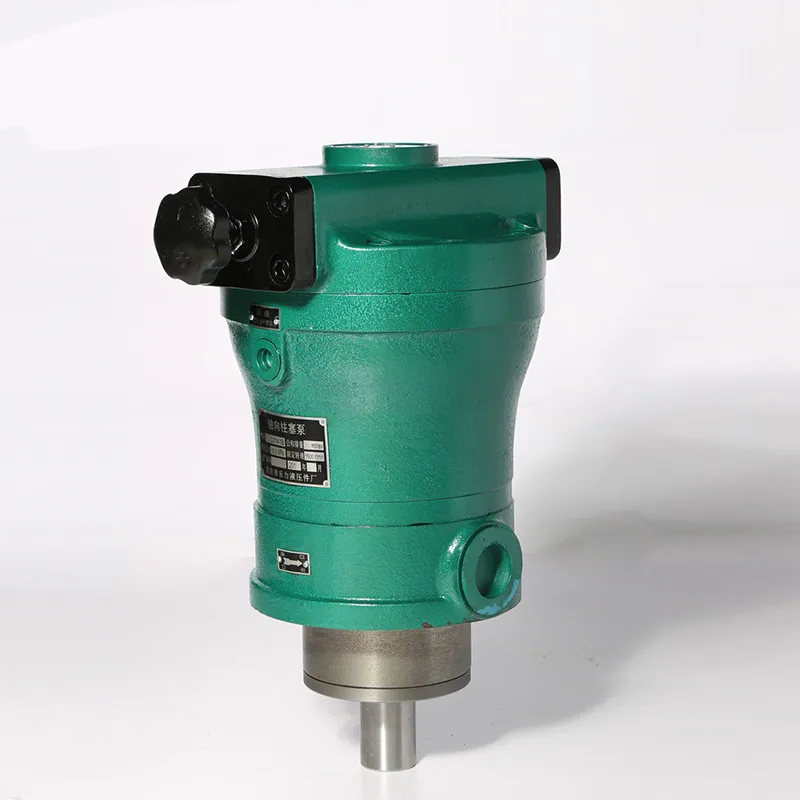

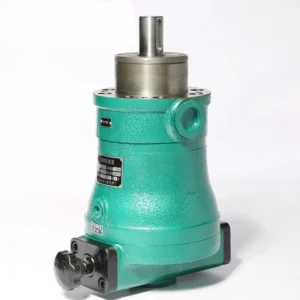

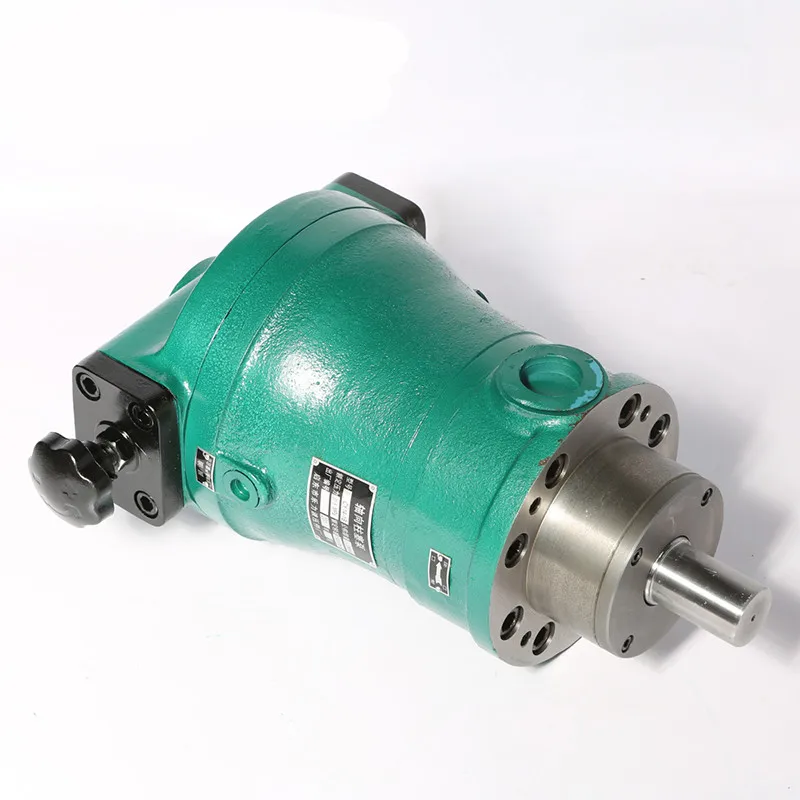

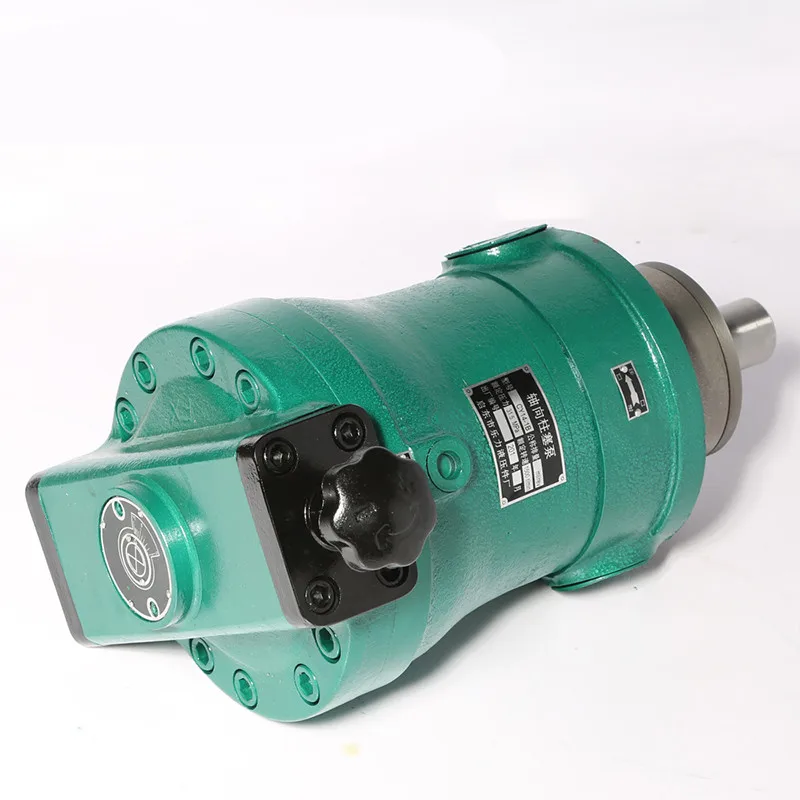

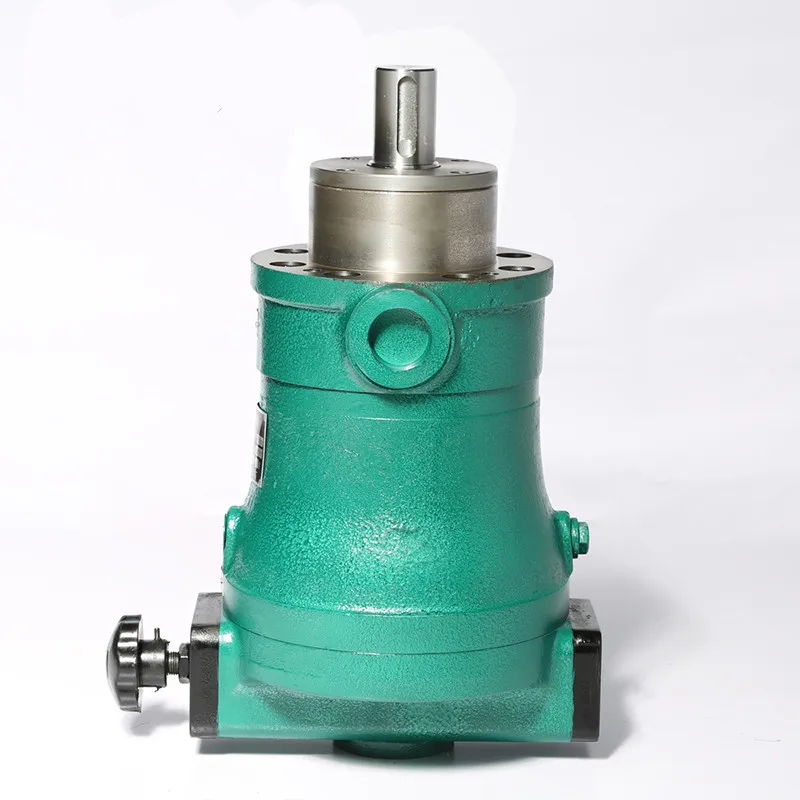

63SCY14-1B Manual Variable Axial Piston Pumps
Product Overview: The 63SCY14-1B is an industrial-grade high-pressure manual variable axial piston pump, a key model within the legendary 14-1B plunger pump family. Featuring a displacement of 63ml/r, this pump allows operators to intuitively adjust the internal swashplate angle via a mechanical handwheel, enabling proportional flow control without stopping the system. Renowned for its 31.5 MPa rated pressure, exceptional environmental adaptability, and low maintenance requirements, the 63SCY is widely used in metal forming tools, hydraulic presses, brick molding machines, and various medium-sized Hydraulic Power Units (HPU). Its mechanical reliability is particularly advantageous in harsh environments or applications where complex electronic controls are unnecessary.
Key Technical Advantages:
Intuitive Manual Proportional Control: Provides linear flow adjustment from zero to maximum via handwheel rotation, eliminating the need for expensive electro-hydraulic proportional valves.
Heavy-Duty High-Pressure Build: Rated for continuous operation at 31.5 MPa (4500 PSI) with peak capability up to 40 MPa. Built with reinforced ductile iron housing for stability under pressure surges.
Superior Suction Characteristics: Optimized cylinder block and valve plate design ensure excellent self-priming performance at a rated speed of 1500rpm, effectively preventing cavitation damage.
Wear-Resistant & Long Life: Core rotating components (pistons, slippers, retainer plates) are made from high-hardness alloy steel with specialized anti-wear treatments for extended service under load.
Cost-Effective Maintenance: The simple, standardized design ensures global spare parts availability, making it an ideal choice for retrofitting or replacing older hydraulic systems.
Detailed Models & Parameters:
Core Model: 63SCY14-1B (Manual Variable).
Displacement: 63 ml/r (cm³/rev).
Rated Pressure: 31.5 MPa (4500 PSI).
Peak Pressure Capability: 40 MPa (5800 PSI).
Rated Speed: 1500 rpm.
Target Applications: Industrial presses, forging machinery, auxiliary pumps for HPUs, and simplified hydraulic lifting systems.
Product Features:
1. Axial piston pump with swashplate design for hydraulic drive in open circuit
2. Optional installation location
3. Excellent oil absorption characteristics
4. Low noise level
5. Long service life
6. Modular design
7. Short response time
8. Variable speed drive options

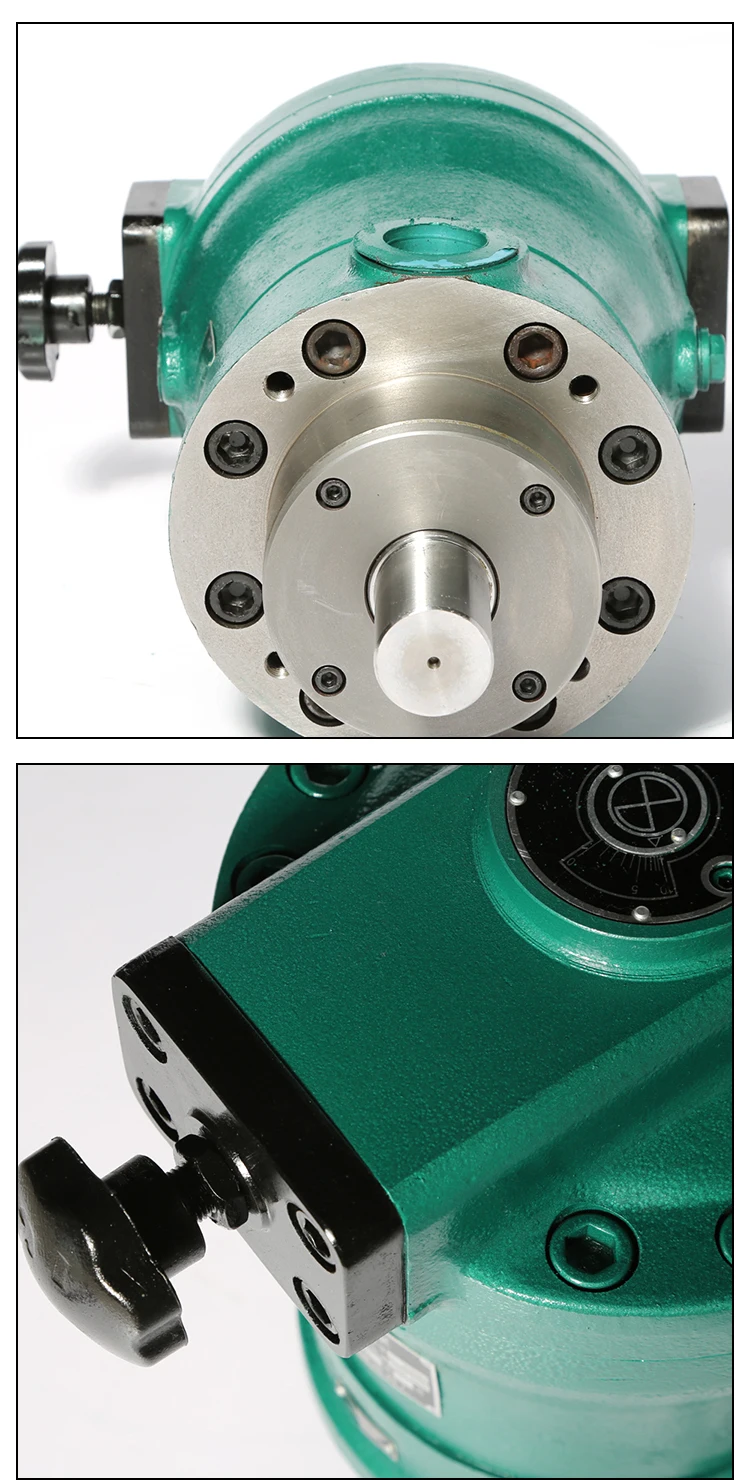

9. Visible swing angle indicator
10. The flow rate is proportional to the input transmission speed and displacement. By adjusting the swashplate angle, the output flow can be steplessly adjusted.
11. Use of HF oil in the case of reduced operating data There is a special model that can be used to run with HFC oil
