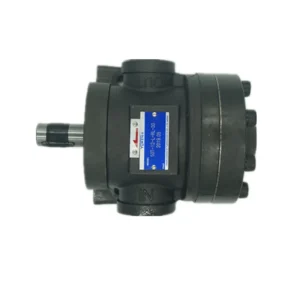

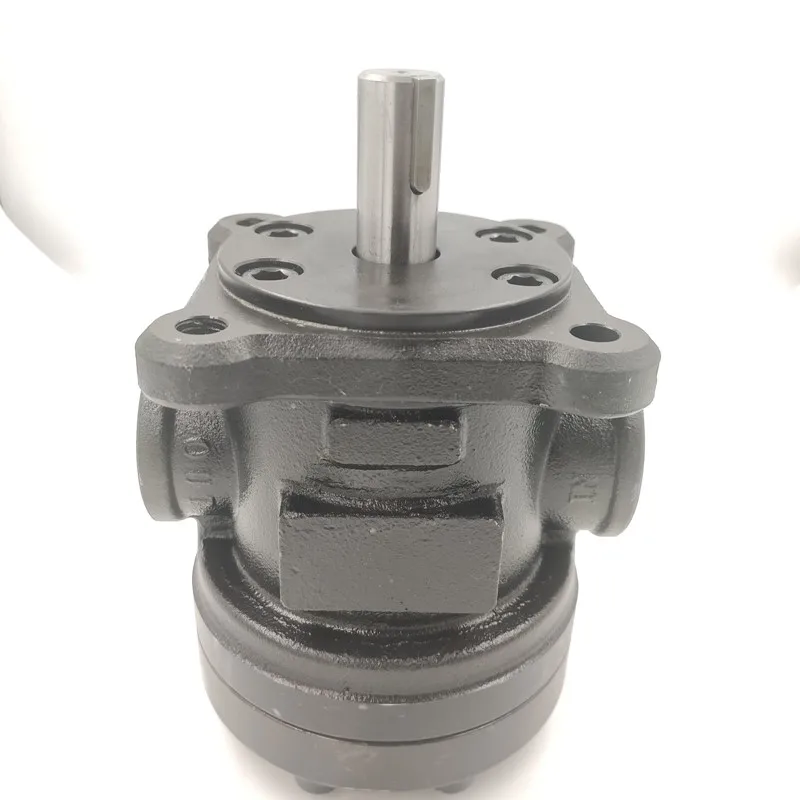

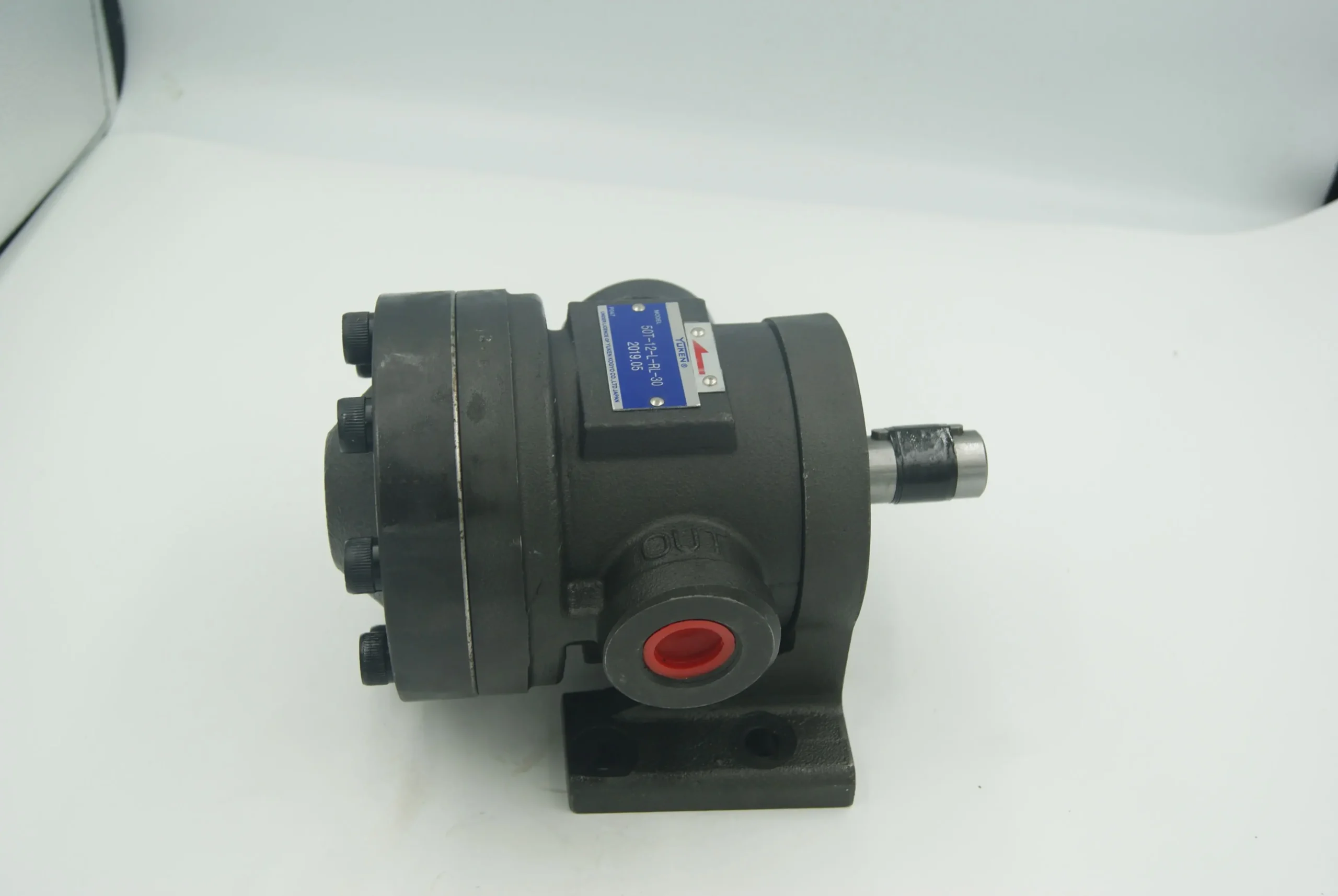

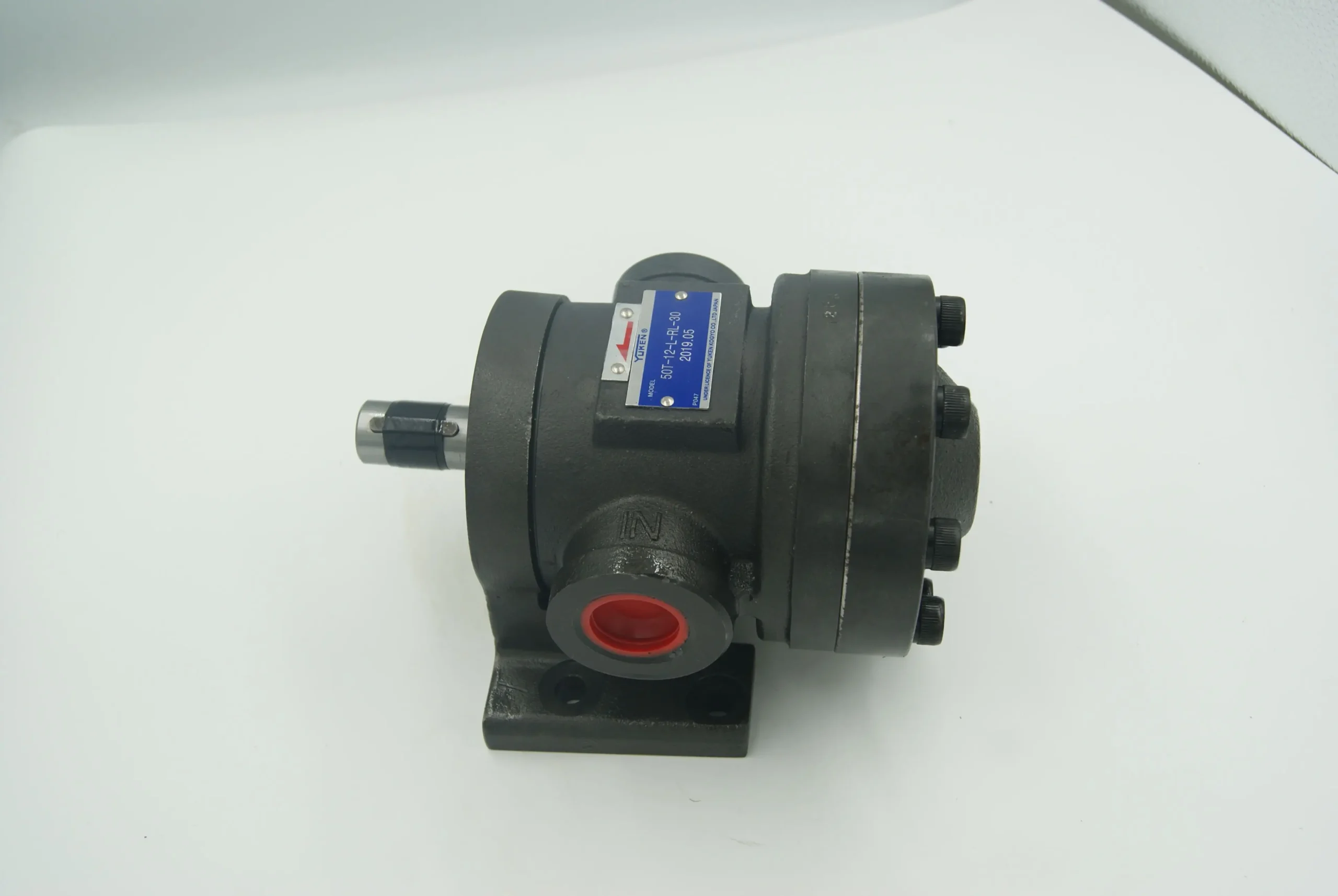

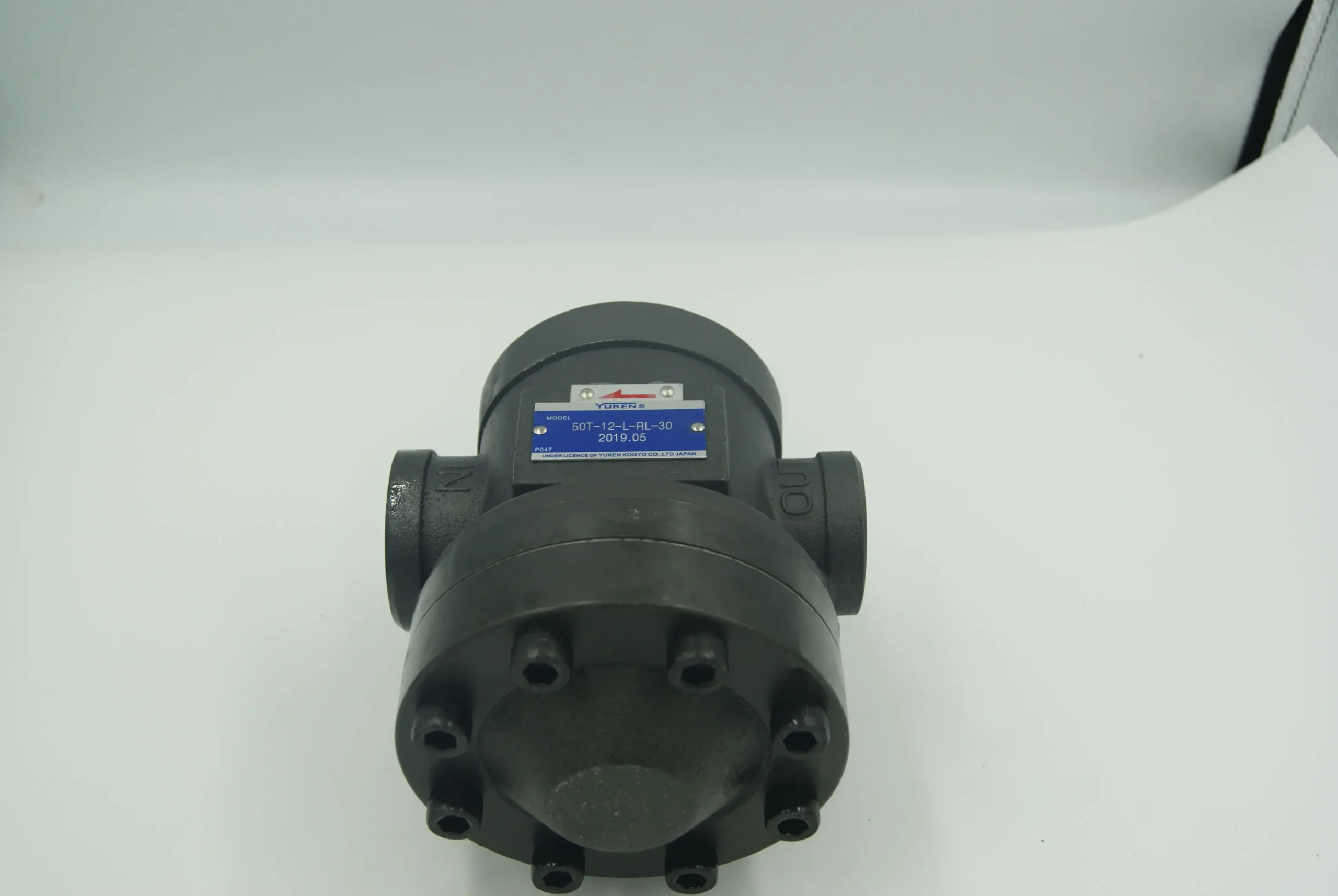

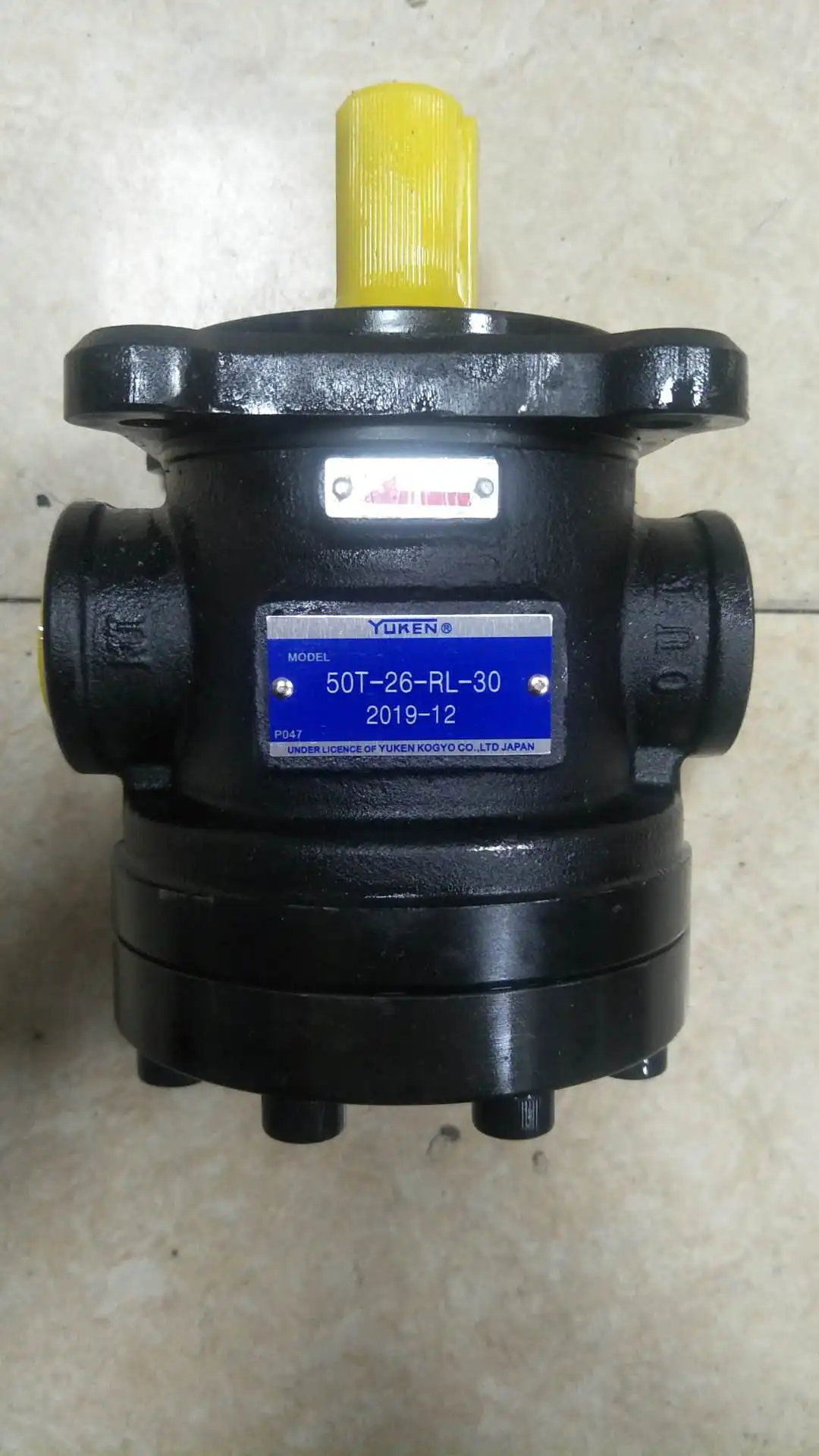

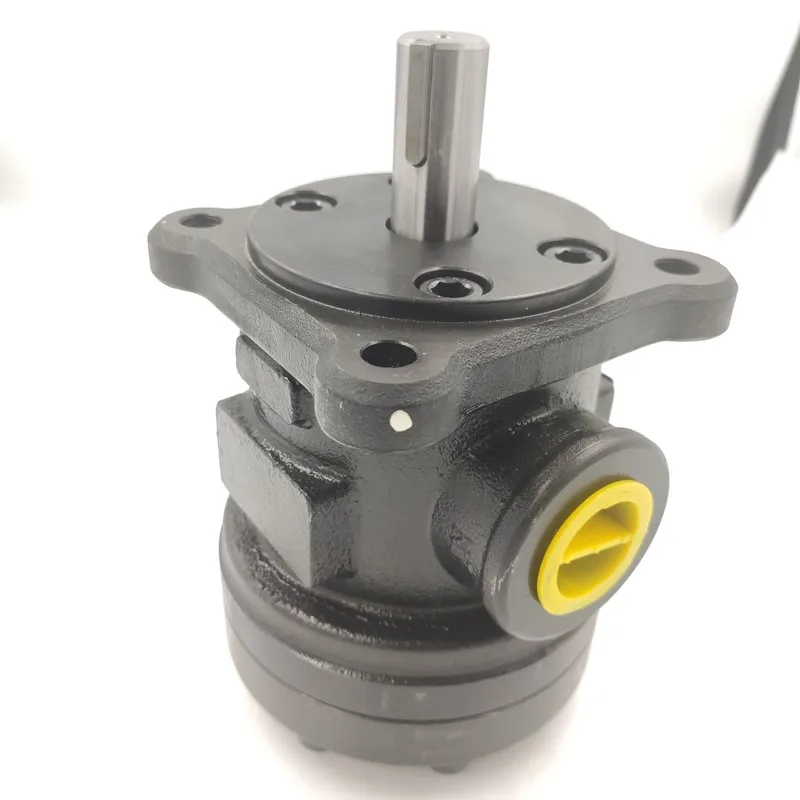

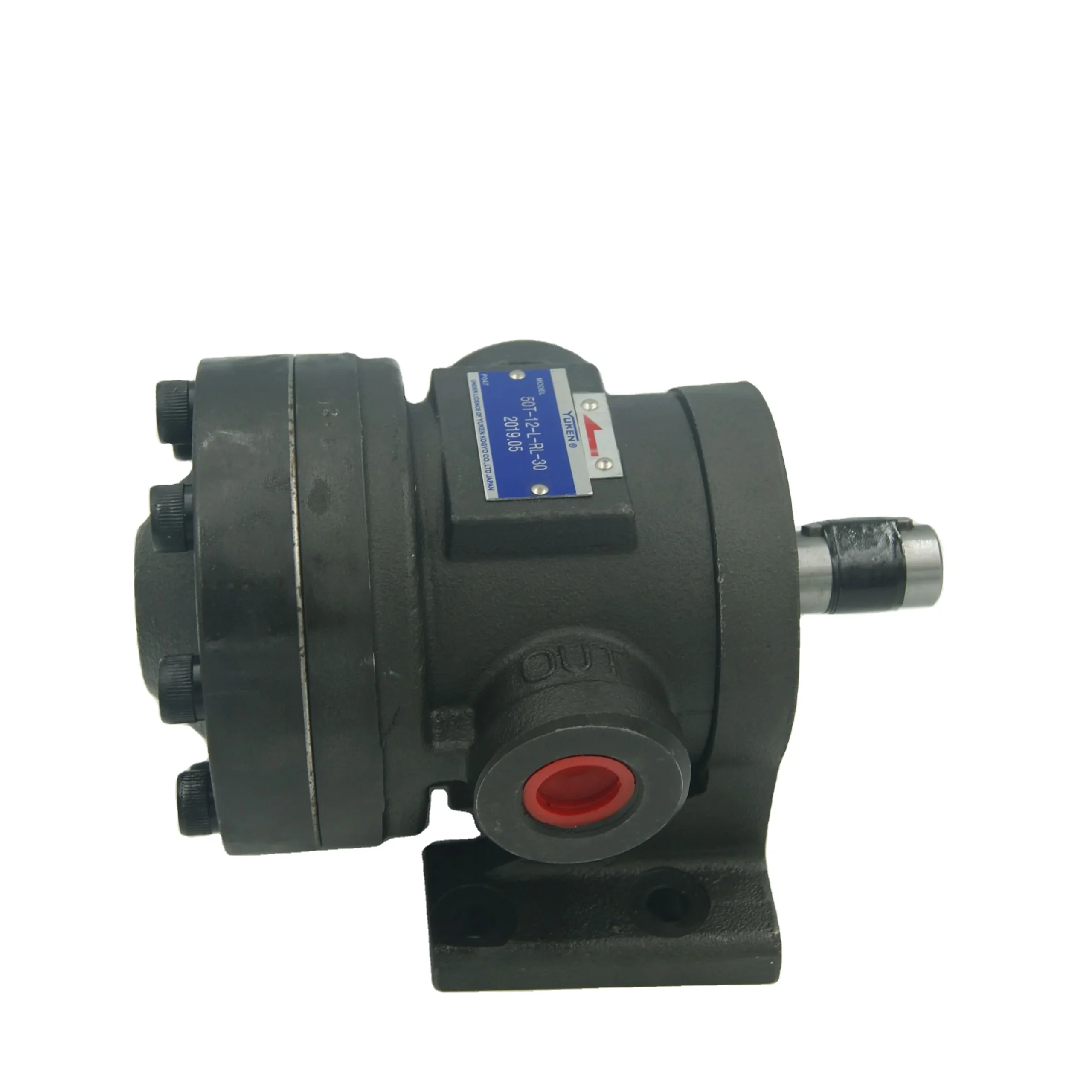

50T Series High-Performance High-Pressure Low Noise Vane Pumps

Product Overview: The 50T Series is globally recognized as the benchmark for “Silent Power Sources” in the industrial hydraulic sector. As a high-pressure fixed displacement vane pump, it is specifically engineered to meet the rigorous demands of heavy machinery for low noise and high efficiency under high-pressure conditions. This featured range includes core specifications: 50T-26-F-R-GPSN-02, 50T-26-F-R-GTSP-02, and 50T-26-F-R-GFAN-02. Utilizing a unique pressure-balanced construction and precision-ground vane sets, the 50T series maintains highly smooth flow output even at working pressures up to 21 MPa—making it the ideal choice for automated production lines with strict noise requirements.

Key Technical Advantages:

• Ultimate Silent Performance: Features specialized silencing grooves and pressure-relief port designs. Even under high-pressure operation, the noise levels remain far below conventional fixed pumps.

• Superior High-Pressure Stability: Symmetrical radial pressure-balanced design cancels out loads on the rotor, minimizing bearing stress and ensuring thousands of hours of stable life under 21 MPa continuous load.

• Versatile Connection Protocols (GPSN/GTSP/GFAN): Offers multiple shaft ends and mounting flange protocols, including straight key shafts, splined shafts, and specialized industrial interfaces for seamless integration with various machinery brands.

• Peak Volumetric Efficiency: Precision side-plate pressure compensation ensures efficiency levels remain above 95% across varying temperatures, effectively reducing system heat generation.

• Target Applications: Plastic injection molding machines, hydraulic press brakes, automatic balers, brick presses, and various medium-to-large scale industrial power units.

Detailed Models & Parameters:

• Core Series: 50T Series High Pressure Low Noise Vane Pump.

• Model Keywords: 50T-26-F-R-GPSN-02, 50T-26-F-R-GTSP-02, 50T-26-F-R-GFAN-02.

• Displacement Code: 26 (Nominal displacement identifier).

• Pressure Ratings: Rated continuous working pressures up to 17.2 – 21 MPa (172-210 Bar).

• Technical Specs: F (Flange Mounting); R (Right-hand rotation); 02 (Design sequence code).

• Interface Protocols: GPSN / GTSP / GFAN (Specific shaft and porting protocol codes).
