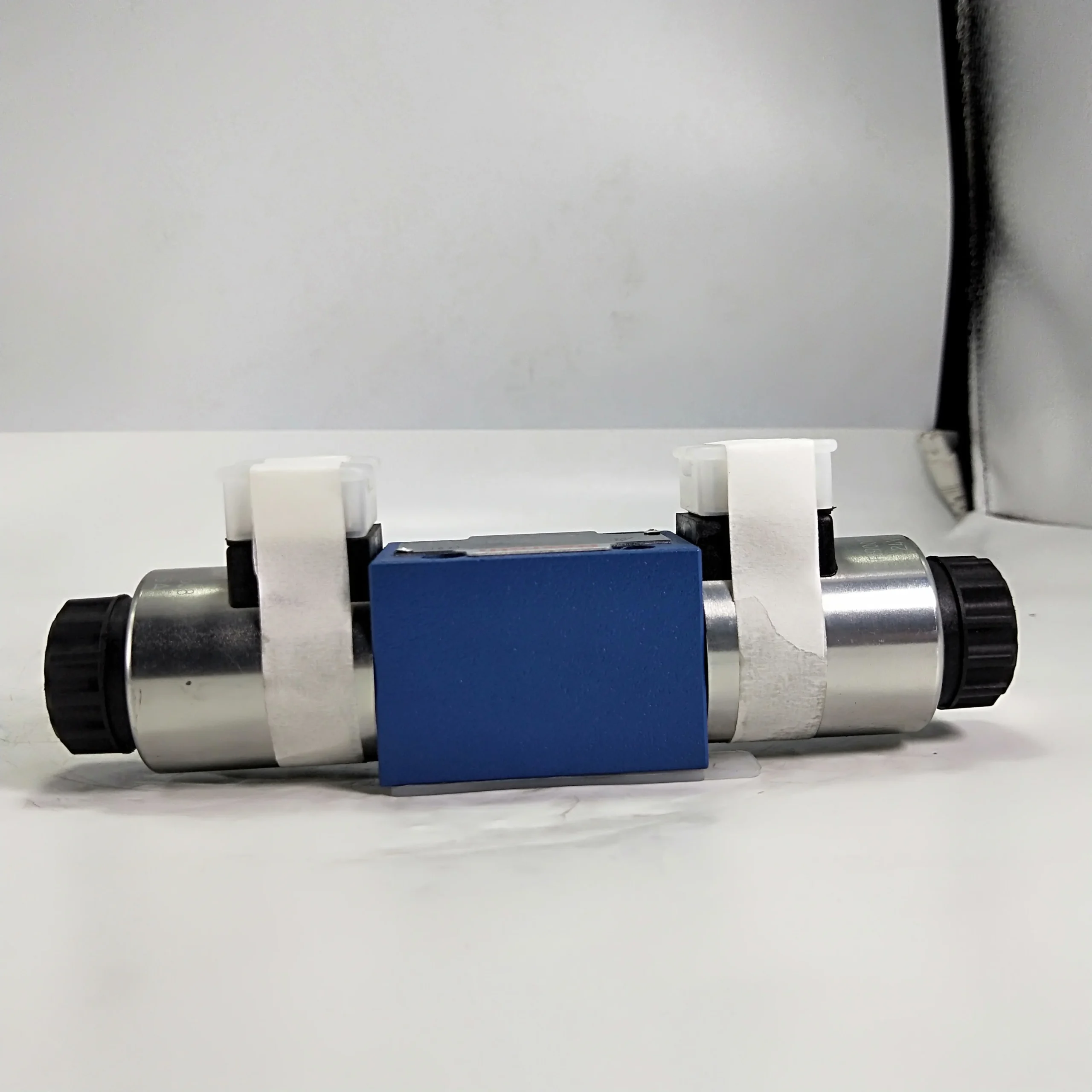

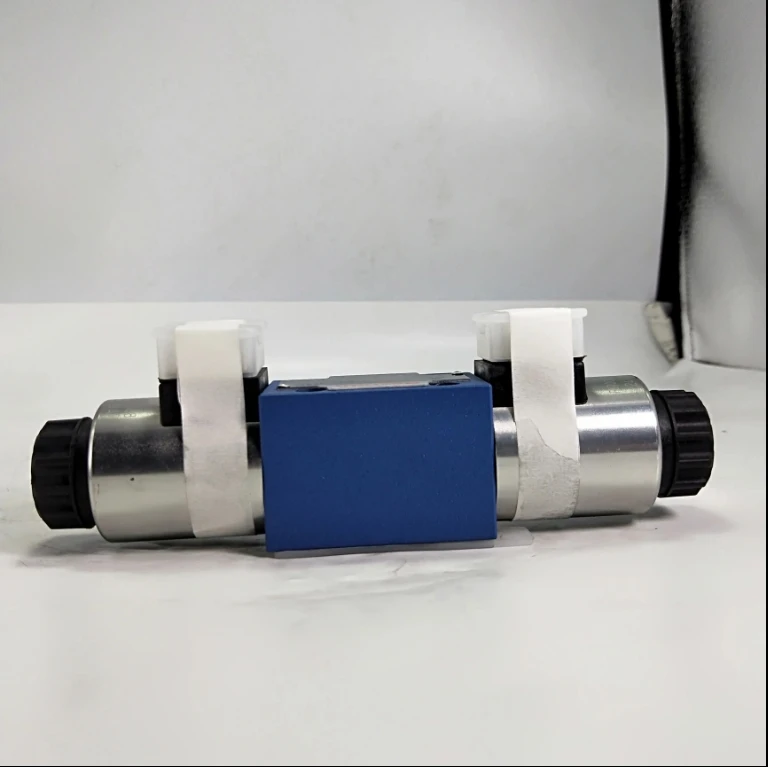

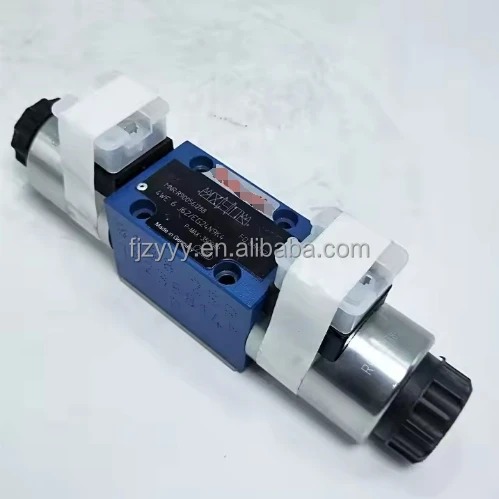

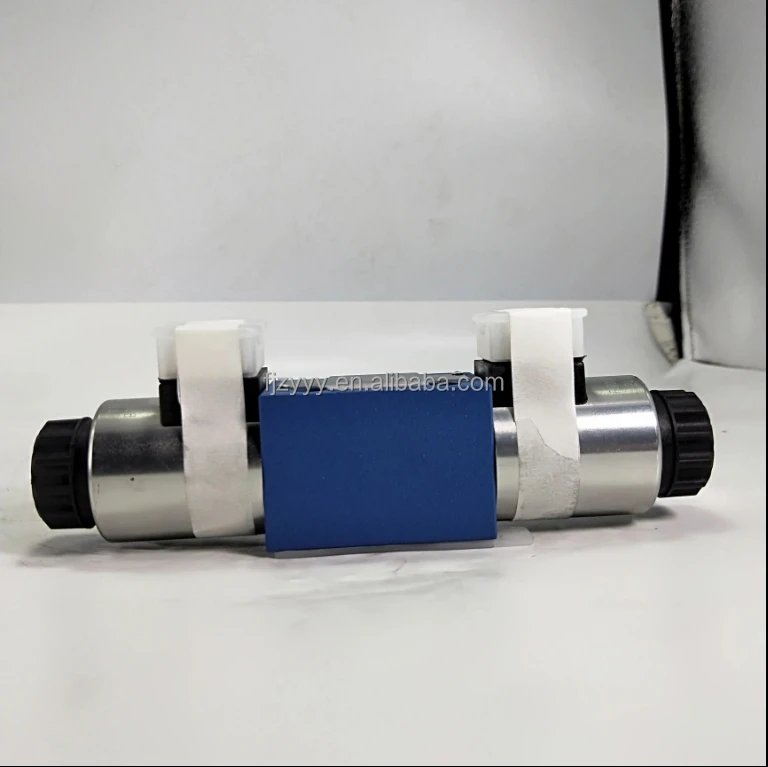

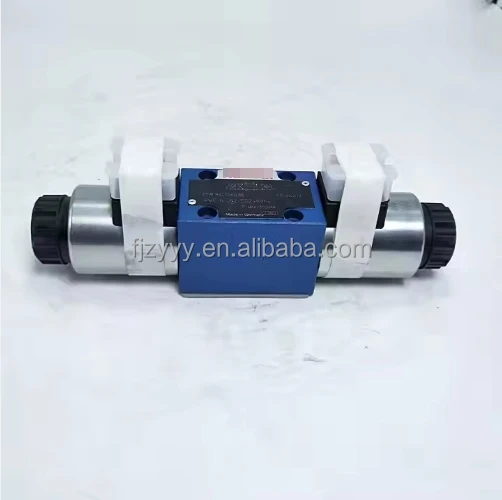

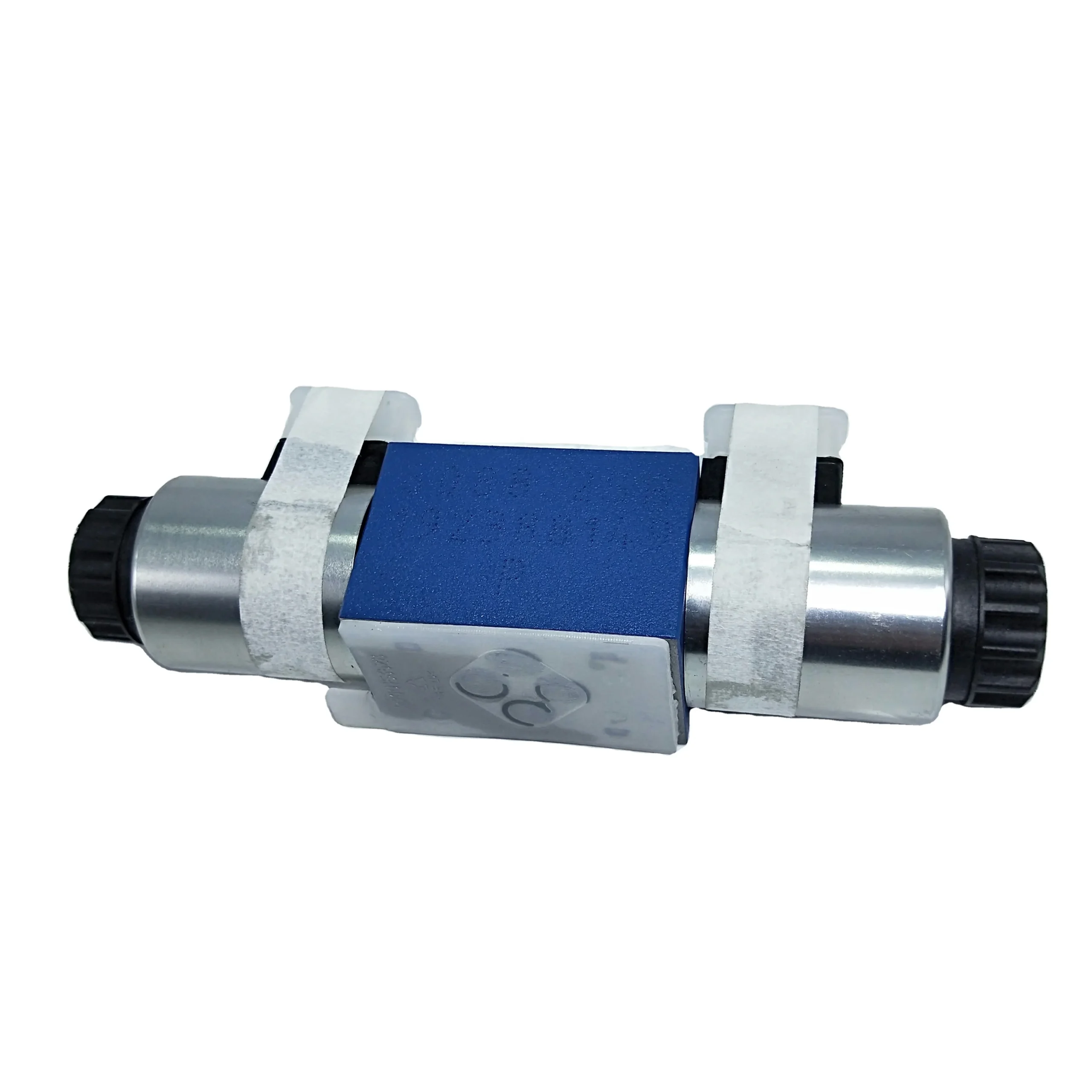

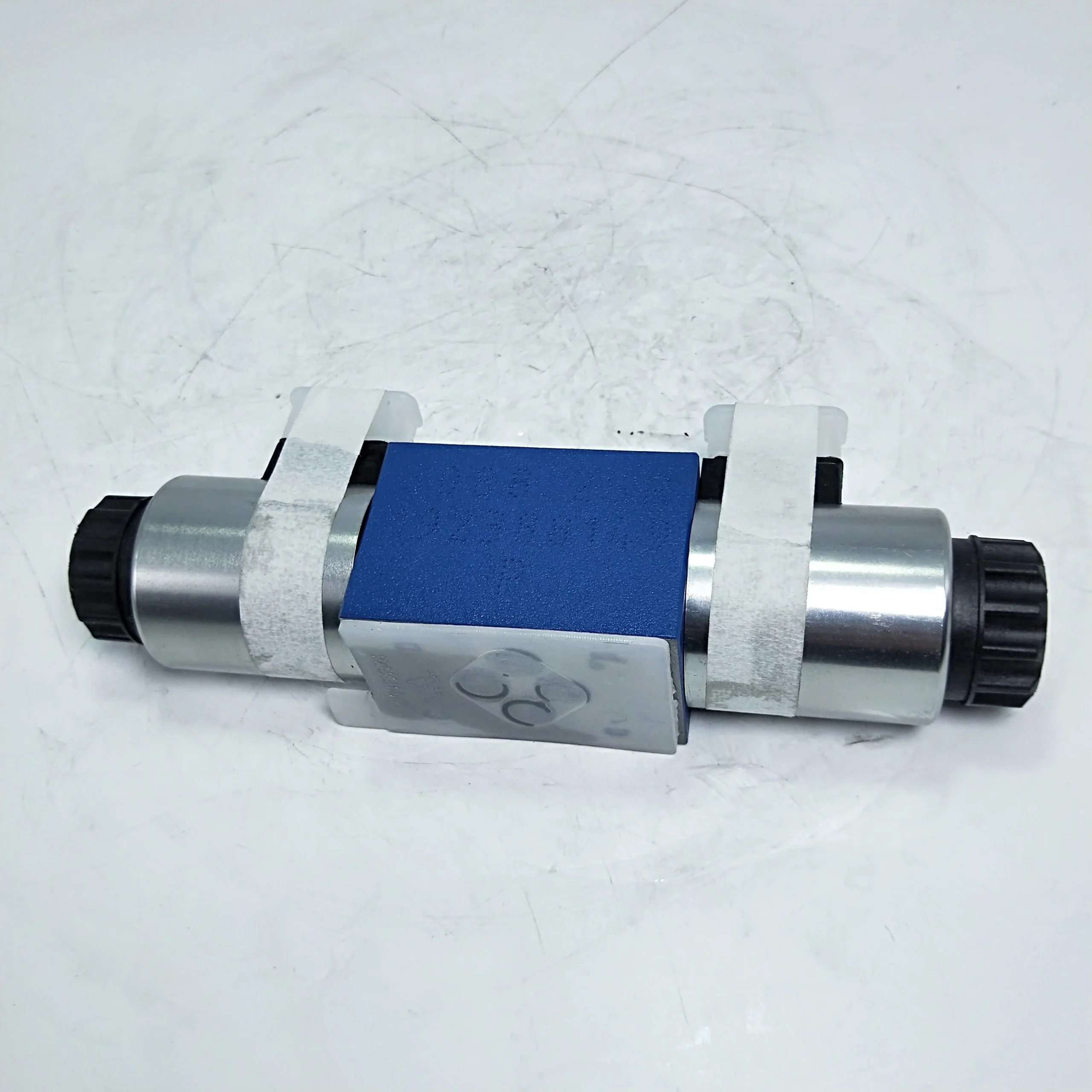

4WE6J-6X Solenoid Valve | 4WE6J6X/EG24N9Z5L | 4WE6J6X/EG24N9DJL | 24V DC | NG6 CETOP 3
| Model Number | 4WE6J6X |
|---|
Product Description
4WE6J-6X Series High-Performance Solenoid Valves
Product Overview: The 4WE6J-6X series is a range of direct-operated solenoid spool valves, fully compliant with ISO 4401-03 (NG6 / CETOP 3) mounting standards. Featuring wet-pin solenoid technology, these valves ensure smooth switching and extended service life under 100% ED (Continuous Duty) cycles. The J-spool function (P blocked, A, B, and T connected in the center position) is engineered for unloading circuits, differential circuits, and preventing pressure buildup due to thermal expansion in actuators.
Featured models include: 4WE6-J6X, 4WE6J-6X/EG24N9Z5L, and 4WE6J6X/EG24N9DJL.
Key Technical Advantages:
6X Design Series: Optimized flow paths compared to earlier designs, resulting in lower pressure drop and enhanced flow capacity.
Premium Actuation: Powered by EG24 (24V DC) coils. Suffixes Z5L and DJL denote various electrical connection styles (e.g., large junction box with lights or specific connectors) providing superior IP protection.
Low-Noise Operation: The wet-pin armature operates within hydraulic fluid, providing natural damping that significantly reduces mechanical switching noise.
Manual Override: Equipped with an N9 manual button, allowing for emergency spool actuation during power outages or system commissioning.
Detailed Specifications & Parameters:
Featured Model Matrix:
4WE6J-6X/EG24N9Z5L: Size 6, J-spool, 6X series, 24V DC, with illuminated plug-in connector.
4WE6J6X/EG24N9DJL: Size 6, J-spool, 6X series, 24V DC, specialized electrical interface.
Core Technical Specs:
Mounting Interface: ISO 4401-03 / CETOP 3 / NG6.
Max Operating Pressure: Rated up to 31.5 MPa (315 bar) at ports P, A, and B; Max back pressure at port T is 21 MPa (210 bar).
Flow Capacity: Up to 80 L/min (depending on pressure drop).
Seal Material: Standard NBR (Nitrile), optional FKM (Viton) for high-temperature resistance.
