12V 36W Solenoid Coil | MFJ12-54YC | MFZ1-7YC | MFZ10-37YC | MFZ12-90YC | Hydraulic Valve Electromagnet

12V 36W Heavy-Duty Hydraulic Solenoid Valve Coils

Product Overview: This series of hydraulic solenoid coils is specifically engineered for 12V DC systems, delivering a robust 36W power output. Covering mainstream industrial specifications including MFJ12, MFZ1, MFZ10, and MFZ12, these coils are widely utilized in excavators, injection molding machines, and various industrial hydraulic power units. The wet-type electromagnet design allows the armature to move within the hydraulic fluid, enabling quiet switching and utilizing the oil to dissipate heat, ensuring long-term stability under 100% ED (Continuous Duty) cycles.

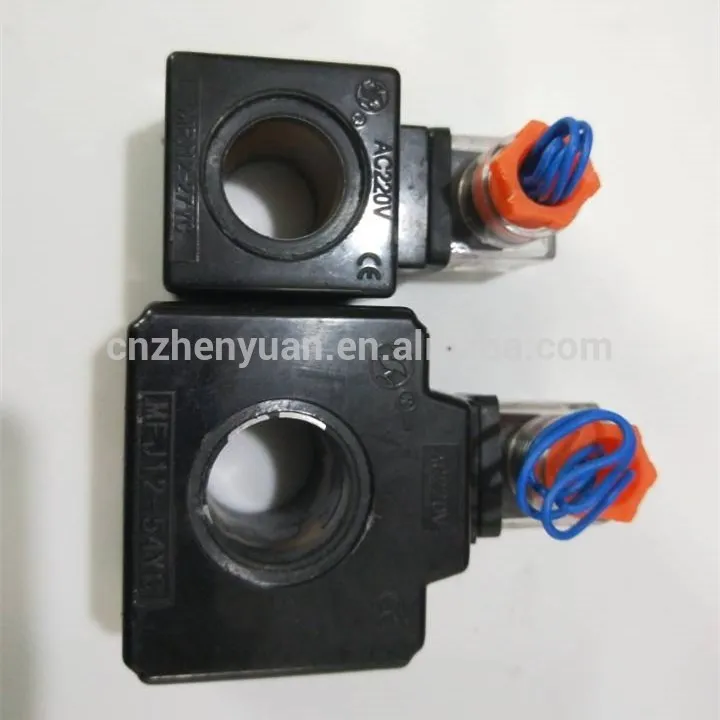

Featured models include: MFJ12-54YC, MFZ1-7YC, MFZ10-37YC, and MFZ12-90YC.

Key Technical Advantages:

• High-Power Performance: The 36W rated power provides high electromagnetic starting force, ensuring precise spool shifting even under high pressure drops or high fluid viscosity.

• Rugged Wet-Type Design: The wet construction effectively dampens mechanical switching shocks, significantly reducing noise and extending the service life of both the spool and the armature tube.

• Superior Insulation: Built with Class H high-temperature enameled wire and high-performance resin encapsulation, offering high protection levels against moisture, oil, and intense site vibrations.

• Universal Compatibility: Manufactured strictly according to industrial standards, serving as a direct replacement for Size 6 (NG6) and Size 10 (NG10) valve coils from major global and domestic brands.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • MFJ12-54YC: Compatible with high-performance AC-rectified or specialized DC control systems.

  • MFZ1-7YC: Universal wet-type electromagnet with thrust specifications for standard valves.

  • MFZ10-37YC: Commonly used for NG6 (Size 6) series solenoid directional valves.

  • MFZ12-90YC: High-thrust specification, ideal for NG10 (Size 10) valves requiring extra driving force.

• Core Technical Specs:

  • Rated Voltage: 12V DC.

  • Rated Power: 36W.

  • Suction/Thrust Range: 37N to 90N (depending on specific model).

  • Rated Stroke: Available in 2.8mm, 3mm, and 4mm specifications.
